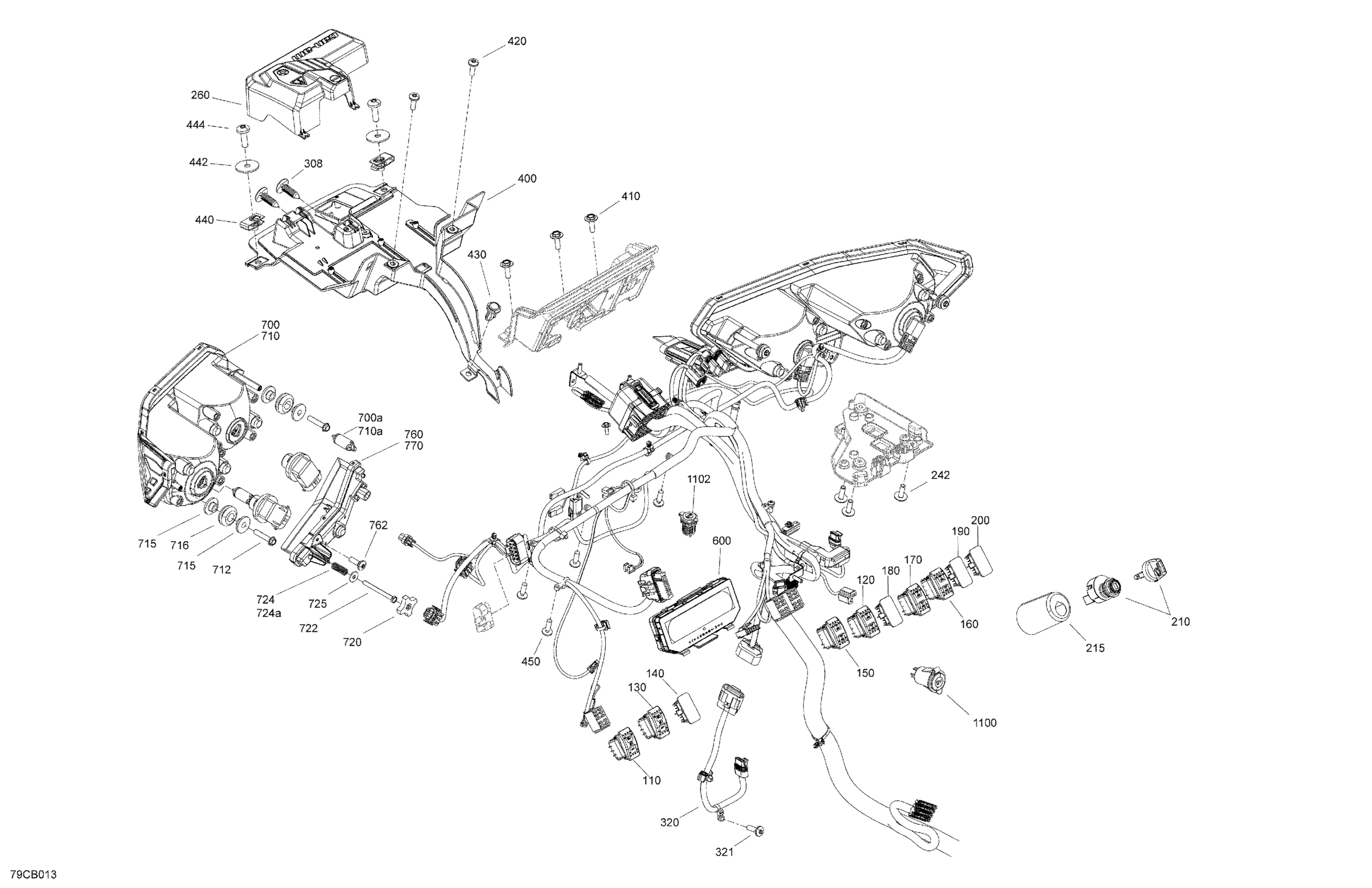

Can-Am 004 - Defender PRO HD10 - Lone Star - North America, 2022 08- Electric - Front Section Diagram

Description

Price

110

Light Switch

710004492

$47.49

120

Switch Winch

710002052

$28.49

130

Tilt Bed Switch Actuator

710006878

$39.99

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

150

Switch 2X4

710005489

$31.99

160

Differential Lock Switch

710005470

$46.49

170

Multifonction Switch

710006650

$87.99

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

205

Specialized Nut

710007923

$2.11

210

Ignition Switch | Includes 210 to 210b

710007324

$64.49

210a

Blank Ignition Key

715900934

$19.99

211

Sticker | Not Shown

710008322

Unavailable

215

Key Switch Protector

710005739

$2.69

242

Screw PT Type K-50 X 16

250000959

$2.11

260

Junction Block Cover

710006707

$6.35

308

Black, Dart

293730006

$0.99

320

Throttle Pedal Harness

710006837

$239.99

321

Torx Screw K50 X 16

250000720

$1.69

400

Wiring Harness Support

710006649

$24.49

410

Screw PT Type K-50 X 16

250000959

$2.11

420

Torx Screw K50 X 16

250000720

$1.69

430

Tuflok Plastic Rivet

293150230

$1.47

440

Panel Nut M6 X 1.0

250100198

$2.11

442

Washer M6

250200029

$2.50

444

Torx Screw M6 X 20

250000712

$2.11

450

Screw PT Type K-50 X 16

250000959

$2.11

600

Multifunction Gauge MID | Model XTP

710007409

$369.99

700

RH Beam | Includes 710 to 710a

710008317

$199.99

710

LH Beam | Includes 700 to 700a

710008316

$199.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

715

Shoulder Bushing

710004749

$2.69

716

Grommet

709000582

$4.69

720

Handle

572106600

$10.33

722

Hex. Screw K40 X 45

250000718

$2.11

724

Spring

517168600

$7.39

724a

Spring

517168600

$7.39

725

Flat Washer 4 mm, Stainless

234042600

$1.15

760

LH Auxiliary LED Headlight

710006374

$194.99

762

Screw PT Type K-50 X 16

250000959

$2.11

770

RH Auxiliary LED Headlight

710006375

$194.99

1100

12V Power Outlet

710005374

$33.99

1102

USB Outlet

219400510

$42.99

700a

Halogen Bulb H8 12V 35W Blue

715900653

$46.49

710a

Halogen Bulb H8 12V 35W Blue

715900653

$46.49
