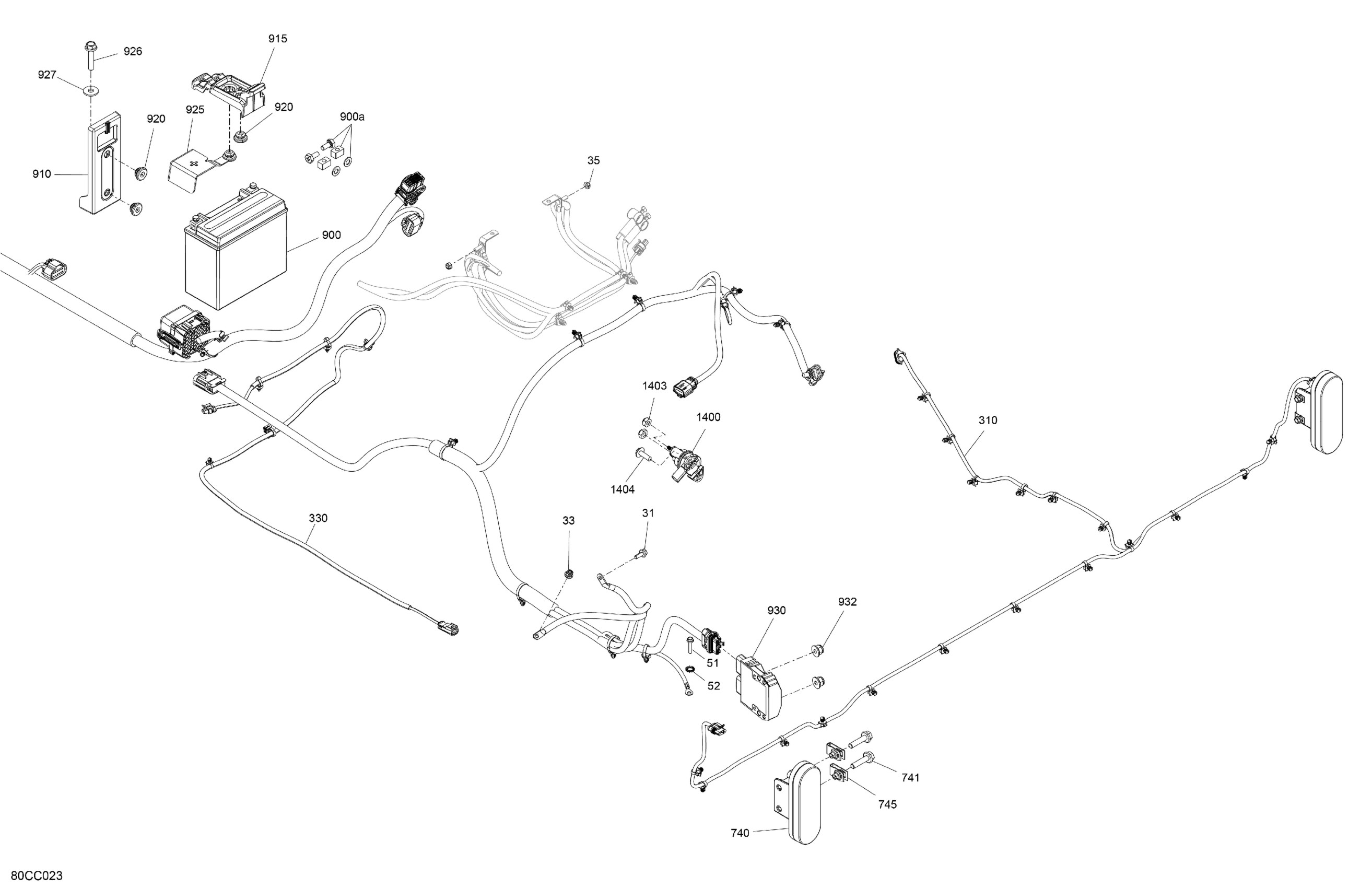

Can-Am Defender MAX HD7 - DPS - 2023 Electric - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Elastic Stop Nut M6, Brass

232561200

$4.23

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

310

Taillight Wiring Harness

710006499

$99.99

330

Safety Belt Wiring Harness

710007042

$36.99

740

Tail Light

710004497

$111.49

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

745

Panel Nut M6 X 1.0

250100198

$2.11

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

901

Washer | Not Shown

710009082

$1.29

903

Screw | Not Shown

710009084

$1.59

910

Fixation Plate

710004788

$11.49

915

Fixation Plate

710004789

$9.29

920

Stopper Rubber

705014429

$5.95

925

Battery Cable Cap

710006471

$2.59

926

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

927

Flat Washer 6 mm

234062410

$0.77

930

Voltage Regulator

710005842

$189.99

932

Hex. Flange Elastic Nut M6

233261494

$1.58

1400

Starter Relay

278003012

$42.49

1403

Elastic Stop Nut M6, Brass

232561200

$4.23

1404

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
