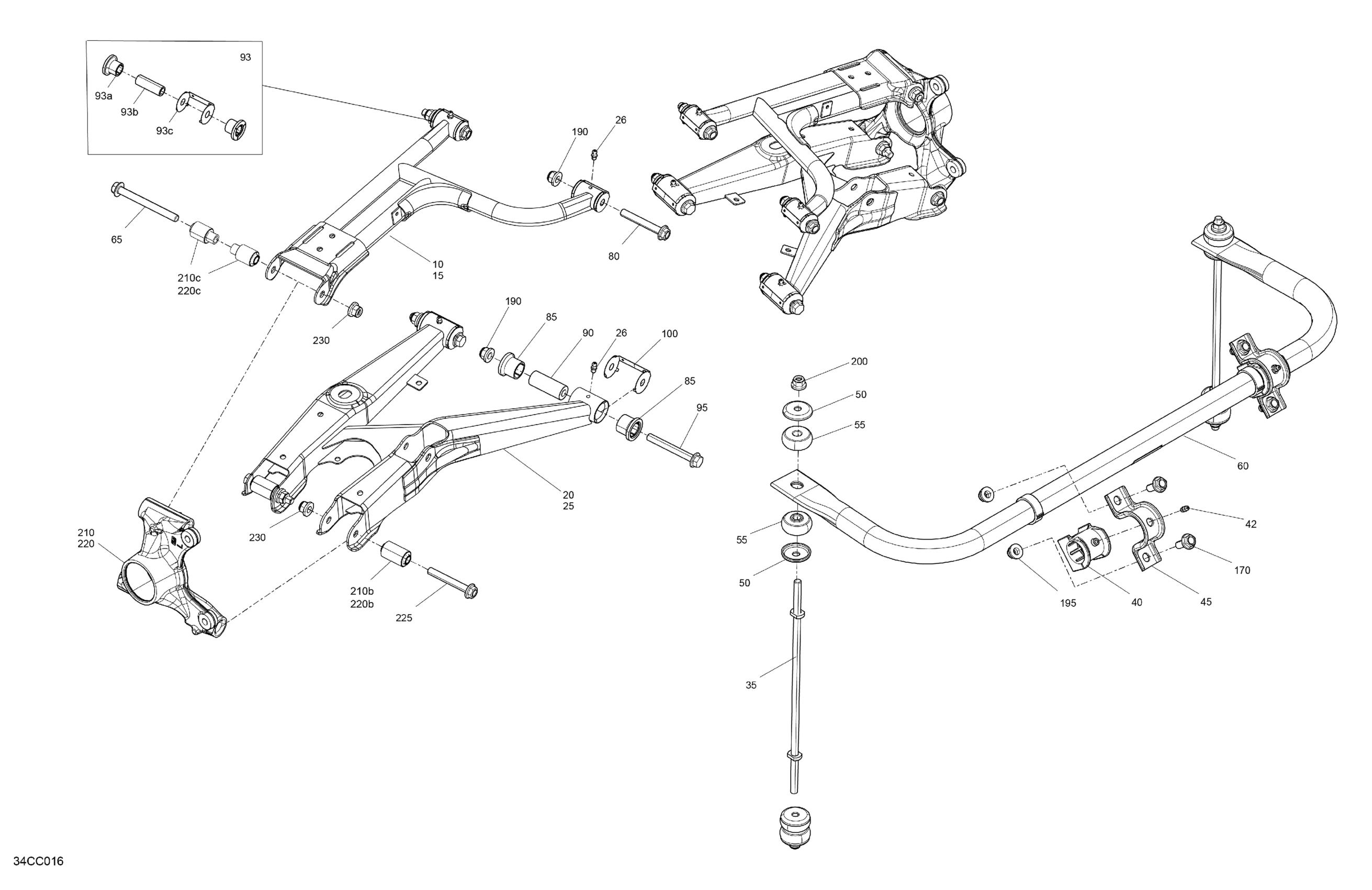

Can-Am Defender MAX HD7 - DPS - 2023 Suspension - Rear Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

706004308

$190.99

15

Deep Black, RH Upper Suspension Arm

706004309

$190.99

20

Deep Black, LH Lower Suspension Arm

706003067

$164.49

25

Deep Black, RH Lower Suspension Arm

706003068

$190.99

26

Grease Fitting

408200700

$3.49

35

Torsion Bar Link

706001898

$19.99

40

Stabilizer Bar Bushing

706004301

$8.04

42

Grease Fitting

408200700

$3.49

45

Clamp

706002592

$6.67

50

Stamped Washer

706005431

$12.99

55

Linkage Bushing

706002028

$7.34

60

Sway Bar Ass'y

715005488

$126.99

65

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

80

Hex. Flange Screw M10 X 70

207607046

$2.96

85

Suspension Arm Bushing

706204409

$9.10

90

Sleeve

706201590

$11.99

93

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

93a

Not Available As Spare Parts

XXX

Unavailable

93b

Not Available As Spare Parts

XXX

Unavailable

93c

Not Available As Spare Parts

XXX

Unavailable

95

Hex Flange Screw M10 X 80

207608046

$6.69

100

Wear Plate

706201660

$0.95

170

Hex. Flange Screw M10 X 25

207602544

$1.69

190

Hex. Flange Elastic Nut M10

233201436

$2.11

195

Hex. Flange Elastic Nut M10

233201436

$2.11

200

Hex. Flange Elastic Nut M10

233201436

$2.11

210

LH Rear Knuckle Anchorage Ass'y | Includes 210 to 210c

715010560

$126.99

210b

Suspension Arm Bushing

706004826

Unavailable

210c

Suspension Arm Bushing

706004827

Unavailable

220

RH Rear Knuckle Anchorage Ass'y | Includes 220 to 220c

715010561

$126.99

220b

Suspension Arm Bushing

706004826

Unavailable

220c

Suspension Arm Bushing

706004827

Unavailable

225

Hex. Screw M10 X 70, Scotch Grip

207507046

$7.41

230

Hex. Flange Elastic Nut M10

233201436

$2.11
