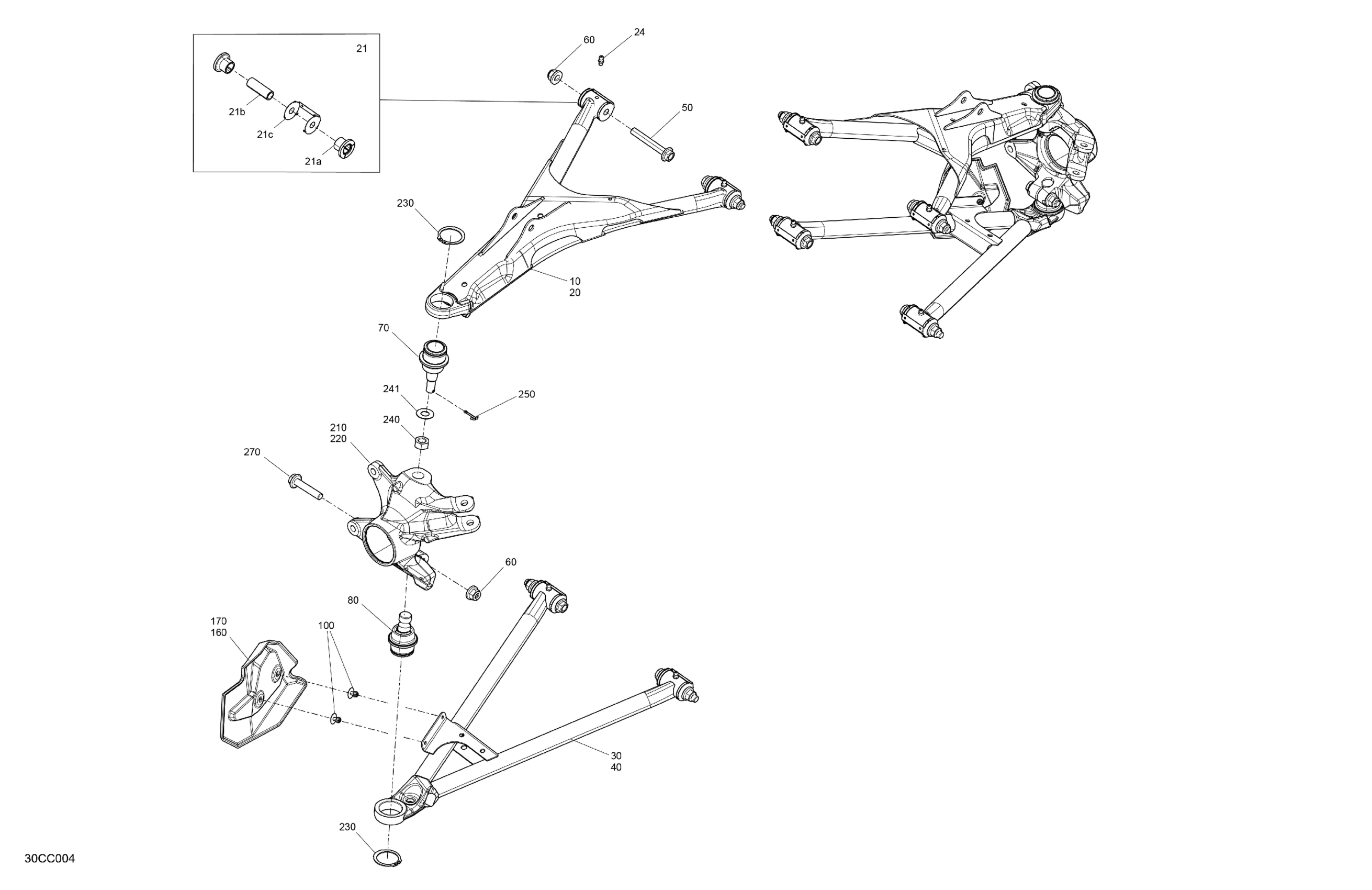

Can-Am 004 - Defender MAX HD7 - DPS - North America, 2023 05- Suspension - Front Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm

706204176

$190.99

20

Deep Black, RH Upper Suspension Arm

706204175

$190.99

21

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

21a

Not Available As Spare Parts

XXX

Unavailable

21b

Not Available As Spare Parts

XXX

Unavailable

21c

Not Available As Spare Parts

XXX

Unavailable

24

Grease Fitting

408200700

$3.49

30

LH Front Lower Suspension Arm

706203028

$190.99

40

RH Front Lower Suspension Arm

706203029

$190.99

50

Hex. Flange Screw M10 X 70

207607046

$2.96

60

Hex. Flange Elastic Nut M10

233201436

$2.11

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

100

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

160

RH CV joint Guard

706202135

$11.01

170

LH CV joint Guard

706202134

$11.01

210

LH Knuckle

706205517

$148.49

220

RH Knuckle

706205047

$201.49

230

Circlip

293370035

$2.64

240

Hex Nut M12

250100239

$2.00

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

270

Hex. Flange Screw M10 X 55

207605546

$2.11
