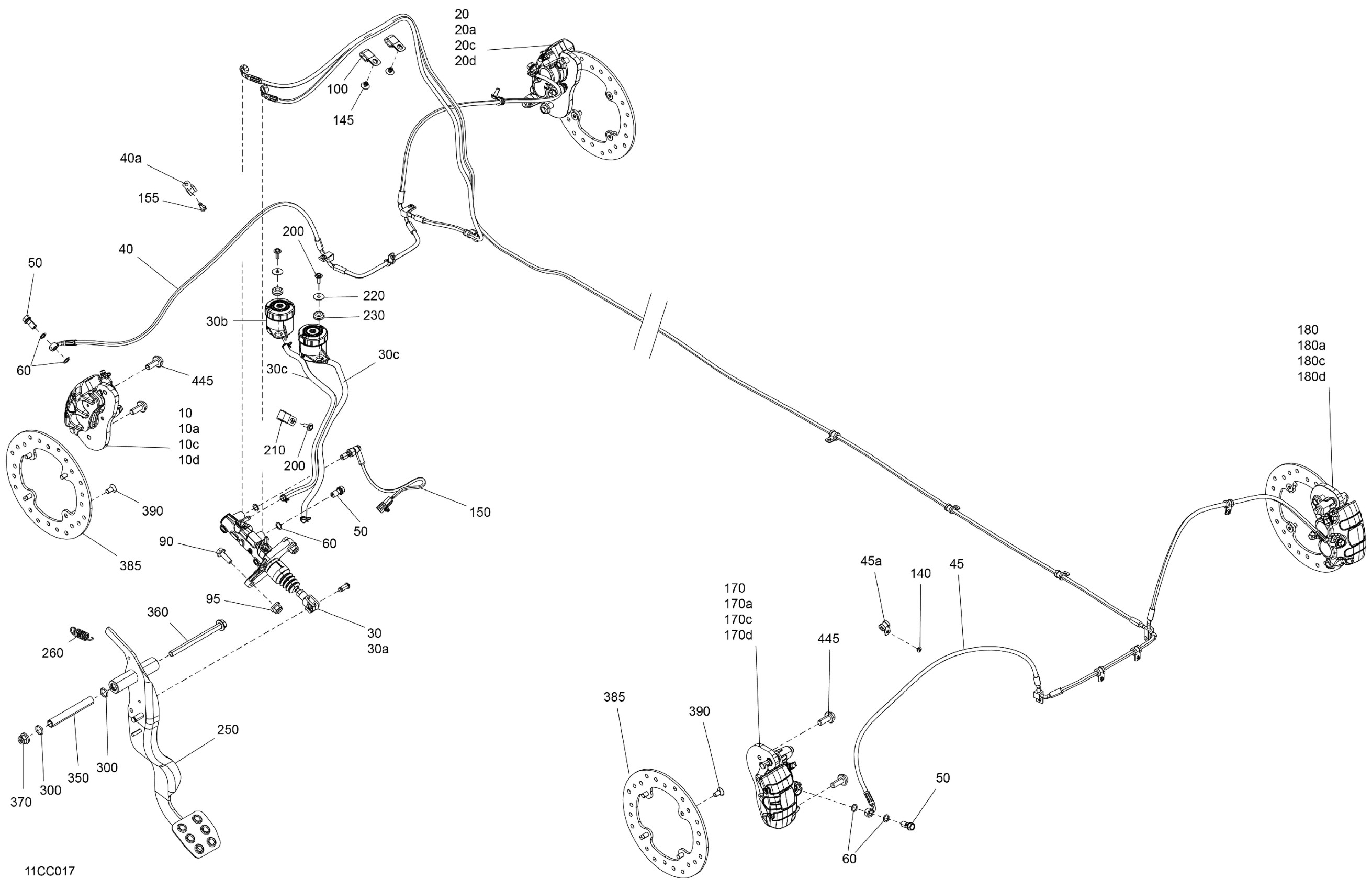

Can-Am Defender MAX HD7 - DPS - 2023 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10a

LH Brake Pads

715900379

$111.51

10c

Bleeding Screw

705601017

$6.45

10d

Cap Spring Kit

715900385

$17.66

20

RH Front Brake Caliper | Includes 20 to 20c

705602181

$230.74

20a

RH Brake Pads

715900380

$110.67

20c

Bleeding Screw

705601017

$6.45

20d

Cap Spring Kit

715900385

$17.66

30

Master Cylinder

705601863

Unavailable

30a

Master Cylinder

705602156

$359.97

30b

Oil Tank

705601020

$36.89

30c

Housing Oil Hose

705601866

$15.35

40

Front Caliper Hose | Includes 40 to 40a

705601812

$143.05

40a

Clamp

293650256

$4.36

45

Rear Caliper Hose | Includes 45 to 45a

705601814

$156.89

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Copper Washer

705601628

$4.34

90

Hex. Flange Screw M8 X 25

207682544

$0.90

95

Hex. Elastic Flange Nut M8

233281416

$1.25

100

Open Clamp

515175507

$1.47

140

Pop Rivet 3/16 X ,425

293150293

$0.26

145

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

150

Brake Switch

705601250

$59.97

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

170

LH Rear Brake Caliper | Includes 170 to 170d

705602184

$210.74

170a

LH Brake Pads

715900386

$110.67

170c

Bleeding Screw

705601017

$6.45

170d

Cap Spring Kit

715900385

$17.66

180

RH Rear Brake Caliper | Includes 180 to 180d

705602185

$210.74

180a

RH Brake Pads

715900387

$110.67

180c

Bleeding Screw

705601017

$6.45

180d

Cap Spring Kit

715900385

$17.66

200

Screw PT Type K-50 X 16

250000959

$1.74

210

Open Clamp

515175507

$1.47

220

Flat Washer

250200040

$1.82

230

Grommet

414036300

$2.22

250

Brake Pedal | Includes 250 to 250a

705601777

$55.35

260

Brake Pedal Spring

705600792

$9.22

300

O-Ring

293300144

$3.98

350

Inside Sleeve

705601373

$10.98

360

Hex. Flange Screw, M10 X 130

230603046

$6.08

370

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Brake Disc

705601511

$106.12

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

445

Hex. Flange Screw M10 X 25

207502546

$1.74

2000

Pin Kit | Packages STD & PRO

715900384

$10.98
