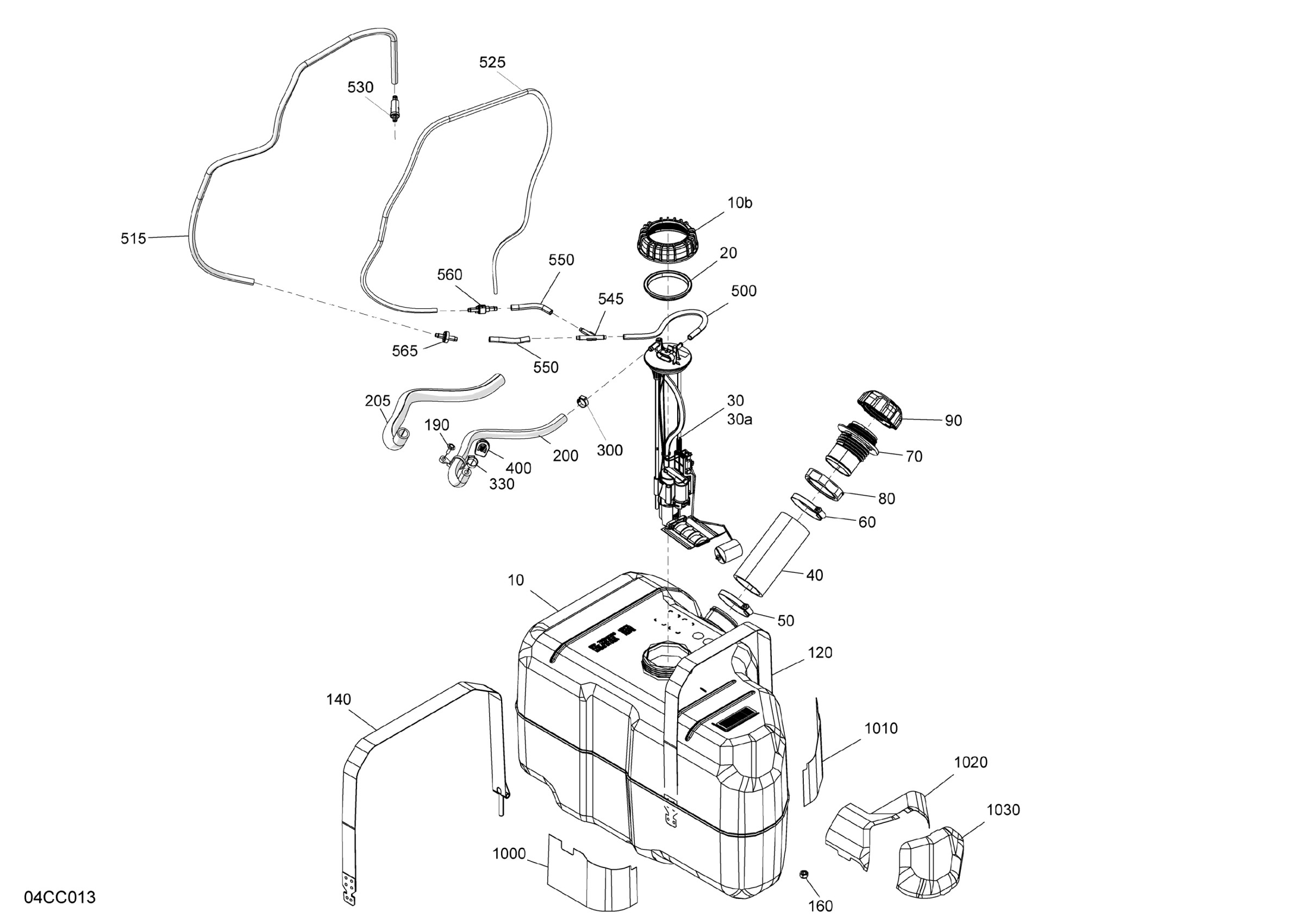

Can-Am 004 - Defender MAX HD7 - DPS - North America, 2023 02- Engine - Fuel - NO EVAP Diagram

Description

Price

Fuel Tank Ass'y | Includes 10 to 10b

709001432

$269.99

10b

Fuel Pump Module Nut

709000328

$13.75

Seal

709000208

$14.99

Fuel Pump | Includes 30 to 30a

709001189

$340.99

30a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

Hose Filler Neck

709000595

$31.99

Norma Clamp

293650081

$12.18

Norma Clamp

293650081

$12.18

Filler Neck

709000867

$15.36

Fuel Filler Neck Nut

293600206

$13.18

Fuel Cap

709000868

$32.99

120

Retaining Strap

709001291

$39.99

140

Retaining Strap

709001292

$39.99

160

Hex. Flange Elastic Nut M8

233281414

$1.47

190

Screw PT Type K-50 X 16

250000959

$2.11

200

Hose 7,94 MM ID 3000MM Long

219704475

$47.99

205

Tubing 16 Mm 1000Mm Long

219704408

$7.49

300

Crimp Clamp

293650053

$3.09

330

Crimp Clamp

293650053

$3.09

400

45 ° Quick Coupling

275501086

$16.49

500

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

515

Filter

709001120

$8.05

525

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

530

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

545

Y-Fitting

293710059

$9.69

550

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

560

Check Valve

513033469

$31.99

565

Check Valve

275500398

$10.99

1000

Heat Shield

707002670

$33.99

1010

Heat Shield

707002671

$33.99

1020

Heat Shield

707002673

$33.99

1030

Heat Shield

707002719

$33.99
