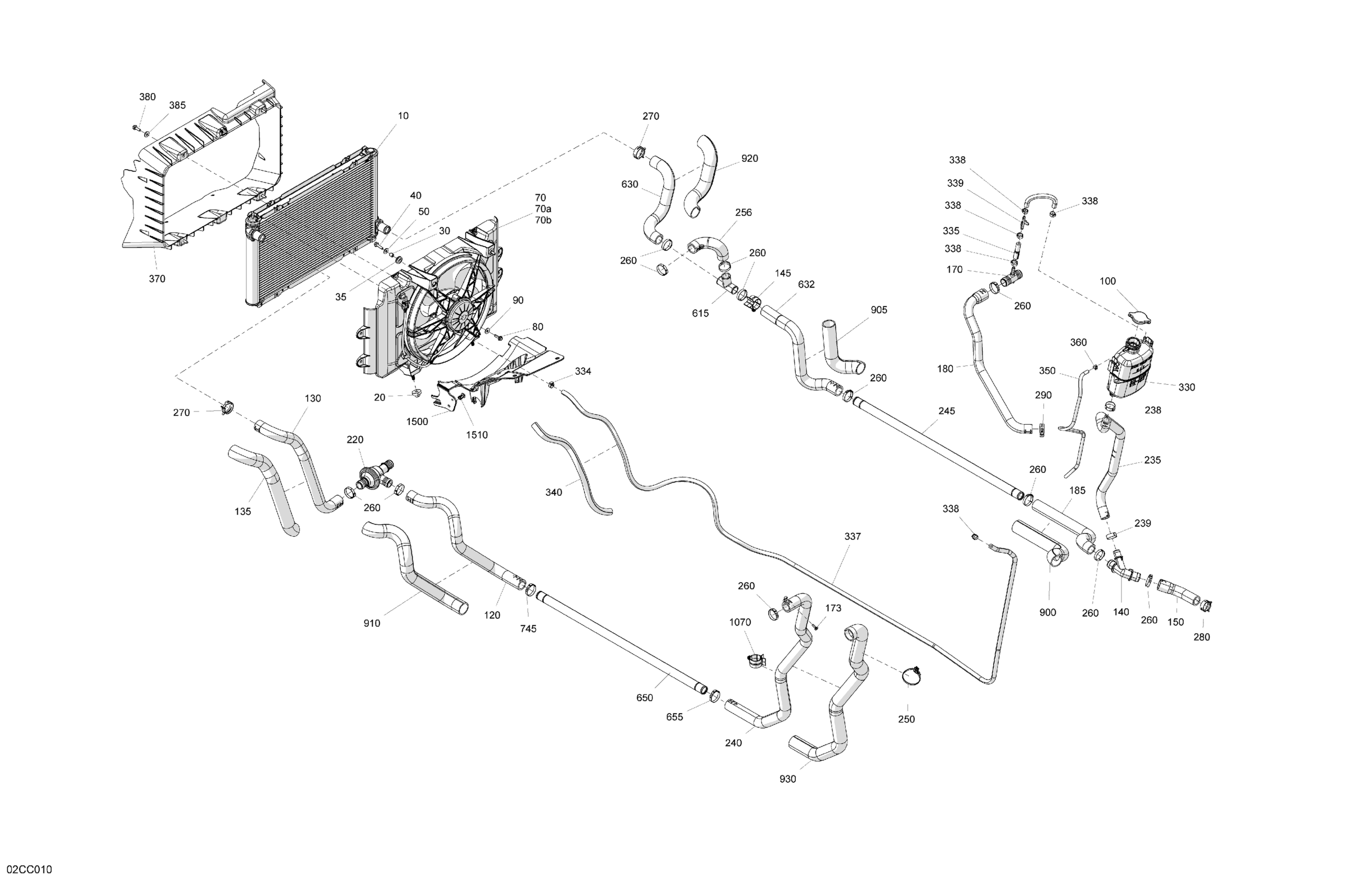

Can-Am Defender MAX HD7 - DPS - 2023 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

$346.24

20

Grommet

709200948

$7.09

30

Bushing

293900105

$6.07

35

Overmolded Grommet

293720130

$4.25

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200534

$305.19

70a

Radiator Deflector Kit

715008385

$81.31

70b

Front Radiator Deflector Ass'y

715008419

$49.22

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

120

Formed Thermostat Hose IN

709201445

$20.12

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$8.57

140

Y-Fitting

509001285

$5.10

145

Retainer

275500590

$7.18

150

Hose Engine In

709201046

$15.64

170

T-Fitting

509000510

$11.18

173

Torx Screw K50 X 16

250000720

$1.39

180

Hose Engine Out

709201045

$38.03

185

Formed Engine Hose IN

709201441

$38.03

220

Thermostat Housing

709200986

$89.52

235

Hose Coolant Tank Out

709201103

$34.30

238

Oetiker Gear Clamp

293650165

$4.32

239

Oetiker Gear Clamp

293650165

$4.32

240

Formed T Fitting Hose

709201446

$33.55

245

Heater Tubing

709200658

$13.58

250

Tie Wrap

293750108

$7.25

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$5.84

270

Norma Spring Clamp

293650166

$4.15

280

Norma Spring Clamp

293650108

$3.88

290

Norma Spring Clamp

293650109

$3.88

330

Coolant Tank

709201323

$72.36

334

Oetiker Clamp

293650042

$1.40

335

Bleeding Hose

709200606

$18.63

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

340

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.81

370

Front Radiator Deflector Ass'y

715008419

$49.22

380

Hex. Flange Screw M6 X 20

207662044

$1.66

385

Flat Washer 6 mm

234062410

$0.64

615

T-Fitting

509001313

$14.90

630

Formed Radiator Hose OUT

709201440

Unavailable

632

Formed Radiator Hose OUT

709201442

$9.99

650

Heater Tubing

709200658

$13.58

655

Gear Clamp

509000162

$5.84

745

Gear Clamp

509000162

$5.84

900

Tubing 35 MM 1000MM Long

219704428

$8.57

905

Tubing 35 MM 1000MM Long

219704428

$8.57

910

Tubing 35 MM 1000MM Long

219704428

$8.57

920

Tubing 35 MM 1000MM Long

219704428

$8.57

930

Tubing 35 MM 1000MM Long

219704428

$8.57

1070

Retainer

275500590

$7.18

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.21
