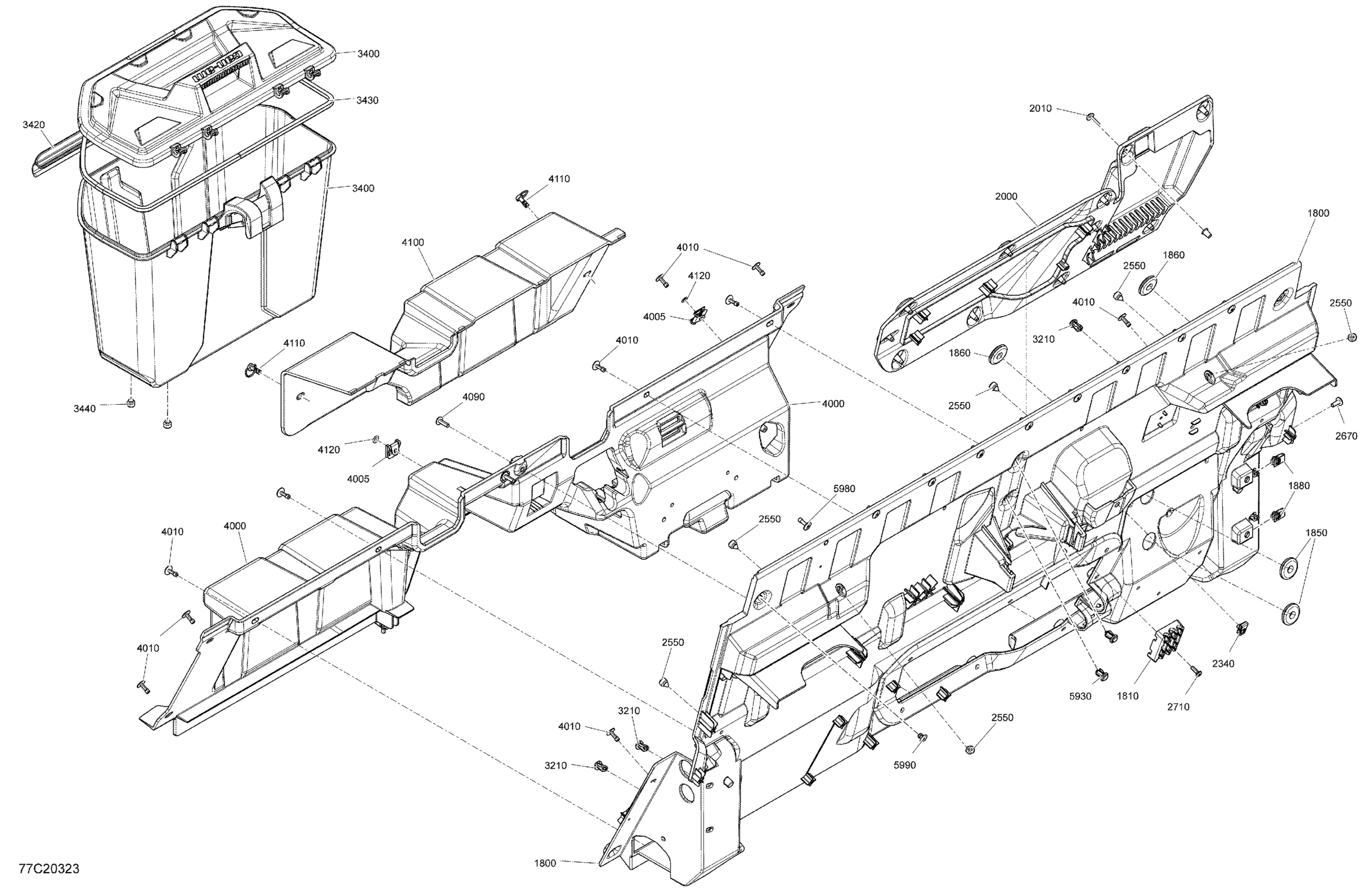

Can-Am Defender HD10 - XMR - 2020 Cab Interior - Back Wall Diagram

Description

Price

1800

Rear Upper Cab Panel

707900715

$429.99

1810

Hose Support

707900788

$0.92

1850

Grommet

293720119

$4.19

1860

Plug

293000125

$1.15

1880

Not Available As Spare Parts

XXX

Unavailable

2000

Rear Access Cover

707900742

$83.99

2010

Torx Screw M6 X 20

250000712

$2.11

2340

Panel Nut M6 X 1.0

250100198

$2.11

2550

Rubber Bumper

293830005

$8.09

2670

Torx Truss Screw M6 X 16

250000721

$1.69

2710

Torx Screw K50 X 16

250000720

$1.69

3210

Tuflok Plastic Rivet

293150230

$1.47

3400

Storage Box

715003314

$106.49

3420

Clip | Outlander Max

269501945

$15.89

3430

Neoprene Seal

293250453

$19.49

3440

Rubber Bumper

293830005

$8.09

4000

Rear Lower Cab Panel

707900718

$359.99

4005

Quarter Turn Nut

705002651

$4.76

4010

Pop Rivet 3/16"

293150100

$1.09

4090

Torx Screw M6 X 20

250000722

$1.68

4100

Battery Cover

707900743

$90.99

4110

Quarter Turn Screw

705002649

$15.87

4120

Washer

708400286

$3.99

5930

Tuflok Plastic Rivet

293150230

$1.47

5980

Pop Rivet 3/16"

293150100

$1.09

5990

Pop Rivet 3/16"

293150103

$0.55
