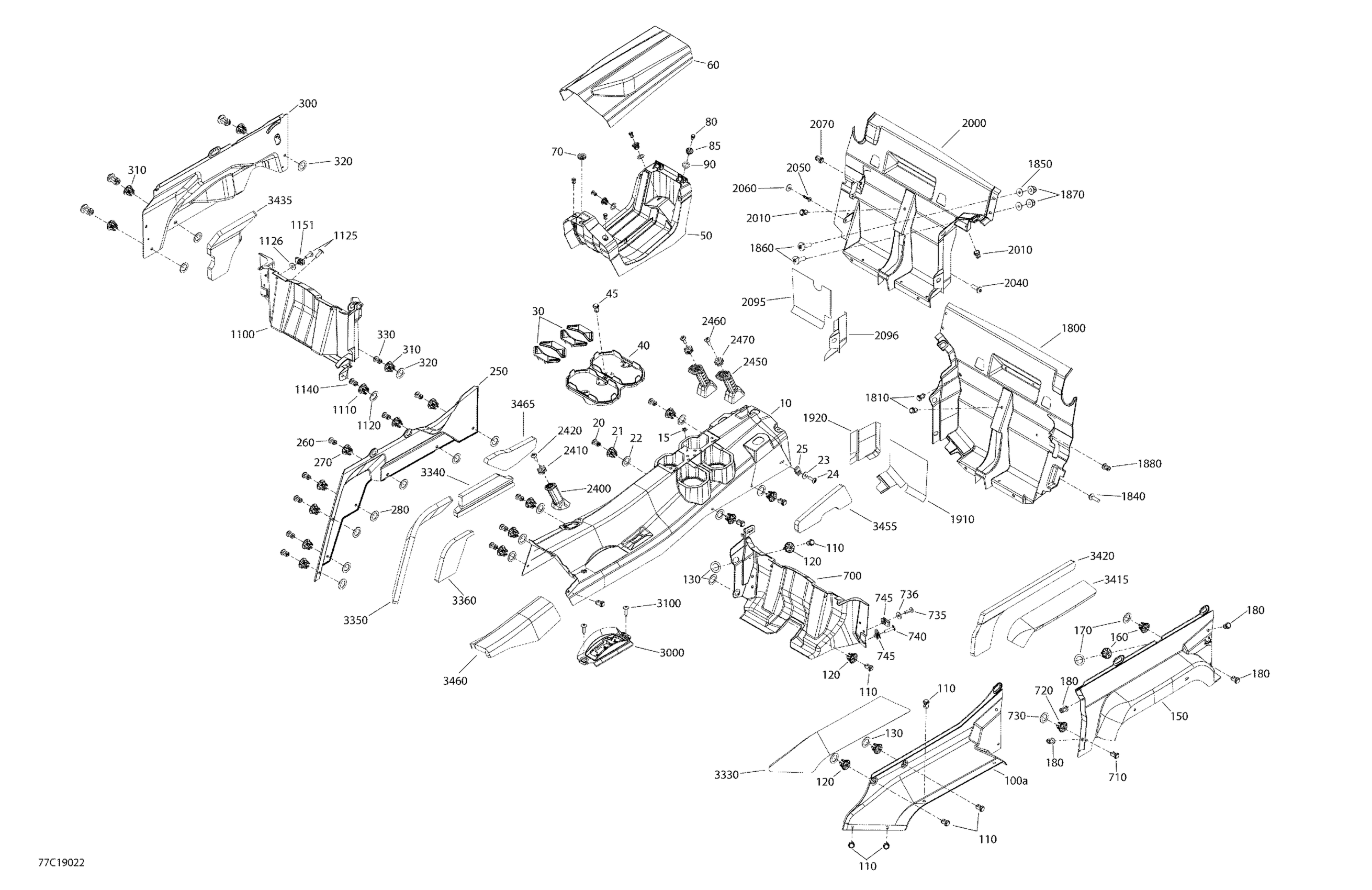

Can-Am Commander MAX 1000R EFI - 2019 Cab Interior Commander MAX - Upper Section Diagram

#

Description
Price

10

Front Center Console Assembly | Except Package LTD

715006470

$139.52

15

Push Nut

732610072

$1.97

20

Tuflok Plastic Rivet

293150230

$1.39

21

Insert

707900133

$2.89

22

Washer

503189273

$3.10

23

Stainless Steel Flat Washer

234062670

$2.00

24

Torx Screw M6 X 20

250000722

$1.54

25

Panel Nut M6 X 1.0

250100198

$1.99

30

Cup Retainer

707900036

$6.19

40

Cup Holder

707900100

$16.39

45

Tuflok Plastic Rivet

293150230

$1.39

50

Rear Central Console

707900075

$41.76

60

Rear Console Cover Kit

707900229

$40.27

70

Grommet

517303756

$3.61

80

Tuflok Plastic Rivet

293150230

$1.39

85

Insert

707900133

$2.89

90

Washer

503189273

$3.10

100a

LH Side Console

707900001

$40.27

110

Tuflok Plastic Rivet

293150230

$1.39

120

Insert

707900133

$2.89

130

Washer

503189273

$3.10

150

Rear Left Dash

707900633

$75.34

160

Insert

707900133

$2.89

170

Washer

503189273

$3.10

180

Tuflok Plastic Rivet

293150230

$1.39

250

RH Side Console

707900002

$32.81

260

Tuflok Plastic Rivet

293150230

$1.39

270

Insert

707900133

$2.89

280

Washer

503189273

$3.10

300

RH Rear Console Panel

707900080

$56.69

310

Insert

707900133

$2.89

320

Washer

503189273

$3.10

330

Tuflok Plastic Rivet

293150230

$1.39

700

LH Rear Upper Floor Cover

707900082

$48.48

710

Tuflok Plastic Rivet

293150230

$1.39

720

Insert

707900133

$2.89

730

Washer

503189273

$3.10

735

Torx Screw M6 X 20

250000722

$1.54

736

Stainless Steel Flat Washer

234062670

$2.00

740

Torx Screw M6 X 25

250000758

$2.00

745

Panel Nut M6 X 1.0

250100198

$1.99

1100

Seat Cover

707900083

$42.51

1110

Insert

707900133

$2.89

1120

Washer

503189273

$3.10

1125

Torx Screw M6 X 20

250000722

$1.54

1126

Stainless Steel Flat Washer

234062670

$2.00

1140

Tuflok Plastic Rivet

293150230

$1.39

1151

Panel Nut M6 X 1.0

250100198

$1.99

1800

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

1810

Tuflok Plastic Rivet

293150230

$1.39

1840

Torx Screw K50 X 16

250000720

$1.60

1850

Flat Washer

250200040

$1.76

1860

Torx Screw M6 X 20

250000712

$2.00

1870

Hex. Flange Elastic Nut M6

233261494

$1.45

1880

Tuflok Plastic Rivet

293150230

$1.39

1910

Heat Shield

707900182

$8.66

1920

Heat Shield

707900183

$4.76

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

2010

Tuflok Plastic Rivet

293150230

$1.39

2040

Torx Screw K50 X 16

250000720

$1.60

2050

Torx Screw Truss Head K50X20 T20

250000760

$2.00

2060

Stainless Steel Flat Washer

234062670

$2.00

2070

Tuflok Plastic Rivet

293150230

$1.39

2095

Heat Shield

707900167

$7.67

2096

Heat Shield

707900184

$4.76

2400

Passenger Handle

707900011

$12.43

2410

Torx Screw M6 X 20

250000722

$1.54

2420

Connector Tube

707900048

$5.52

2450

Handle

707900103

$14.33

2460

Torx Screw M6 X 20

250000722

$1.54

2470

Connector Tube

707900048

$5.52

3000

Shift Lever Indicator

707900088

$13.78

3100

Torx Screw M6 X 25 | XT Models

250000728

$4.15

3330

LH Lower Lateral Console Foam

707900621

$19.37

3340

RH Lateral Console Foam

707900622

$14.49

3350

RH Lateral Console Foam

707900623

$14.49

3360

RH Lateral Console Foam

707900624

$14.49

3415

LH Rear Lateral Foam | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900625

$19.37

3420

LH Rear Lateral Foam

707900626

$14.76

3435

RH Rear Lateral Foam

707900627

$13.52

3455

Front Central Foam

707900628

$9.48

3460

Front Central Foam

707900629

$14.43

3465

Front Central Foam

707900630

$9.48

3600

Torx Screw M5 X 14

250000742

$1.37

3610

Flat Washer

250200040

$1.76

3615

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3620

Hex. Flange Screw M8 X 20

207682044

$1.06

3625

Hex. Flange Elastic Nut M8

233281414

$1.31
