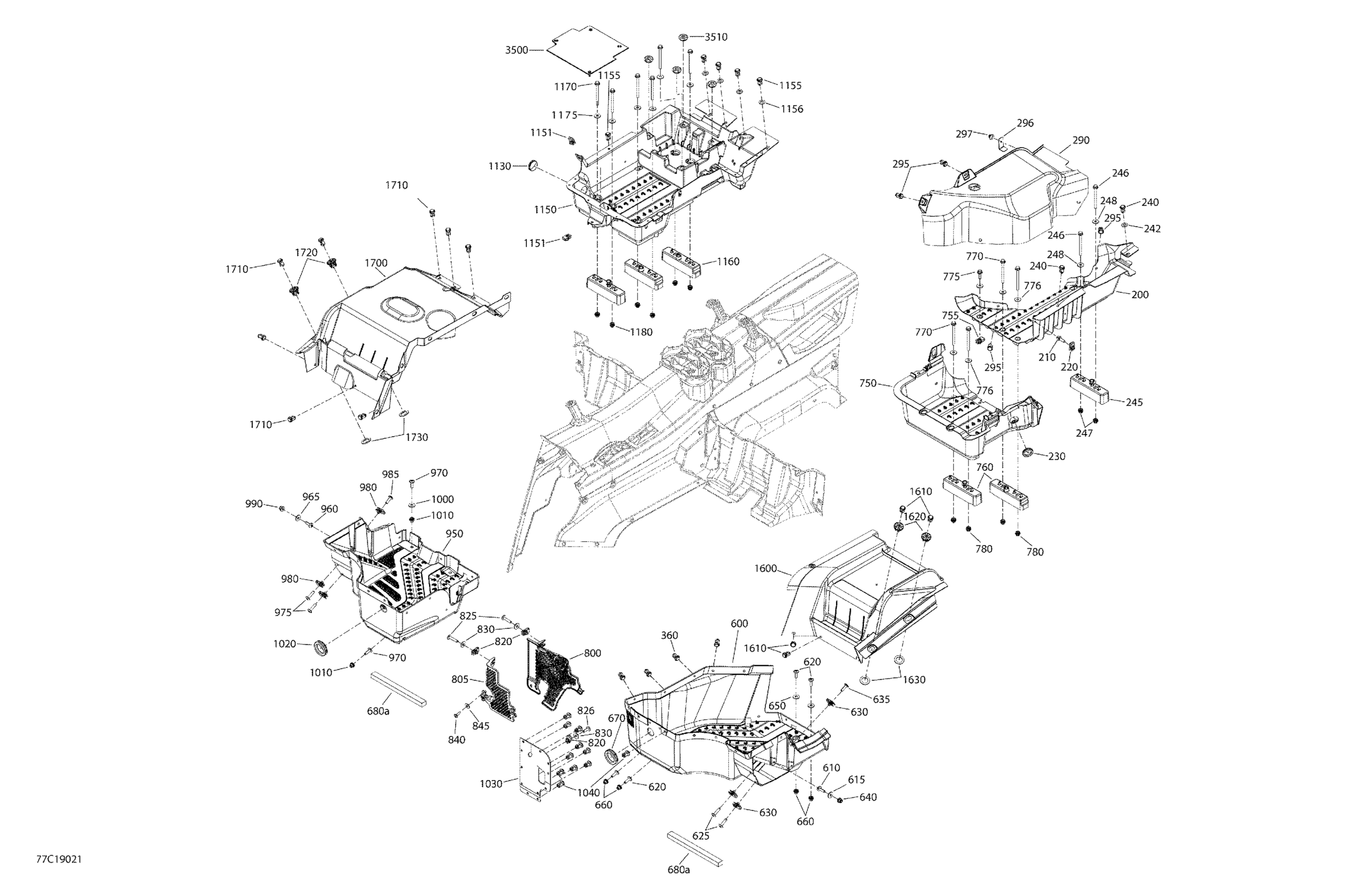

Can-Am Commander MAX 1000R EFI - 2019 Cab Interior Commander MAX - Lower Section Diagram

#

Description
Price

200

Under cover

707900387

$142.51

210

Hex. Flange Screw M6 X 20

207662054

$0.96

220

Panel Nut M6 X 1.0

250100198

$1.99

230

Rubber Cover

293250242

$5.18

240

Tuflok Plastic Rivet

293150230

$1.39

242

Washer

506151252

$3.01

245

Support Plate

707900099

$14.76

246

Hex. Flange Screw M6 X 70

207667056

$4.15

247

Insert Half Hex Body M6 x 1.0

250100199

$2.91

248

Stainless Steel Flat Washer

234062670

$2.00

290

Rear Floor cap

707900388

$142.51

295

Tuflok Plastic Rivet

293150230

$1.39

296

INSERT SUPPORT - Call your local BRP dealership

705205445

Unavailable

297

Pop Rivet 3/16"

293150103

$0.52

360

Tuflok Plastic Rivet

293150230

$1.39

600

LH Lower Floor

707900022

$241.01

610

Torx Screw M6 X 20

250000712

$2.00

615

Stainless Steel Flat Washer

234062670

$2.00

620

Torx Screw M6 X 20

250000722

$1.54

625

Torx Truss Screw M6 X 25

250000807

$2.00

630

Panel Nut M6 X 1.0

250100198

$1.99

635

Torx Screw M6 X 20

250000722

$1.54

640

Hex. Flange Elastic Nut M6

233261494

$1.45

650

Stainless Steel Flat Washer

234062670

$2.00

660

Insert Half Hex Body M6 x 1.0

250100199

$2.91

670

Rubber Cover

293250242

$5.18

680a

SEAL-TRAY 300MM LONG - Call your local BRP dealership

219704380

Unavailable

750

Rear Floor | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900331

$75.34

755

Panel Nut M6 X 1.0

250100198

$1.99

760

Support Plate

707900099

$14.76

770

Hex. Flange Screw M6 X 70

207667056

$4.15

775

Hex. Flange Screw M6 X 20

207662054

$0.96

776

Stainless Steel Flat Washer

234062670

$2.00

780

Insert Half Hex Body M6 x 1.0

250100199

$2.91

800

Grille

707900178

$8.91

805

Grille

707900180

$8.91

820

Panel Nut M6 X 1.0

250100198

$1.99

825

Torx Truss Screw M6 X 30

250000843

$2.00

826

Torx Screw M6 X 20

250000722

$1.54

830

Stainless Steel Flat Washer

234062670

$2.00

840

Torx Screw K50 X 16

250000720

$1.60

845

Washer M5

250200025

$0.70

950

RH Lower Floor

707900023

$172.36

960

Torx Screw M6 X 20

250000712

$2.00

965

Stainless Steel Flat Washer

234062670

$2.00

970

Torx Screw M6 X 20

250000722

$1.54

975

Torx Truss Screw M6 X 25

250000807

$2.00

980

Panel Nut M6 X 1.0

250100198

$1.99

985

Torx Screw M6 X 20

250000722

$1.54

990

Hex. Flange Elastic Nut M6

233261494

$1.45

1000

Stainless Steel Flat Washer

234062670

$2.00

1010

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1020

Rubber Cover

293250242

$5.18

1030

Deflector

707900192

$15.64

1040

Tuflok Plastic Rivet

293150230

$1.39

1130

Rubber Cover

293250242

$5.18

1150

RH Lower Rear Floor

707900670

$172.36

1151

Panel Nut M6 X 1.0

250100198

$1.99

1155

Tuflok Plastic Rivet

293150230

$1.39

1156

Washer

506151252

$3.01

1160

Support Plate

707900099

$14.76

1170

Hex. Flange Screw M6 X 70

207667056

$4.15

1175

Stainless Steel Flat Washer

234062670

$2.00

1180

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1600

Under Seat Cover

707900130

$73.10

1610

Tuflok Plastic Rivet

293150230

$1.39

1620

Insert

707900133

$2.89

1630

Washer

503189273

$3.10

1700

RH Under Seat Plate

707900006

$100.72

1710

Tuflok Plastic Rivet

293150230

$1.39

1720

Insert

707900133

$2.89

1730

Washer

503189273

$3.10

3500

Battery Cover

707900163

$16.39

3510

Grommet

705003264

$3.94

3600

Torx Screw M5 X 14

250000742

$1.37

3610

Flat Washer

250200040

$1.76

3615

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3620

Hex. Flange Screw M8 X 20

207682044

$1.06

3625

Hex. Flange Elastic Nut M8

233281414

$1.31
