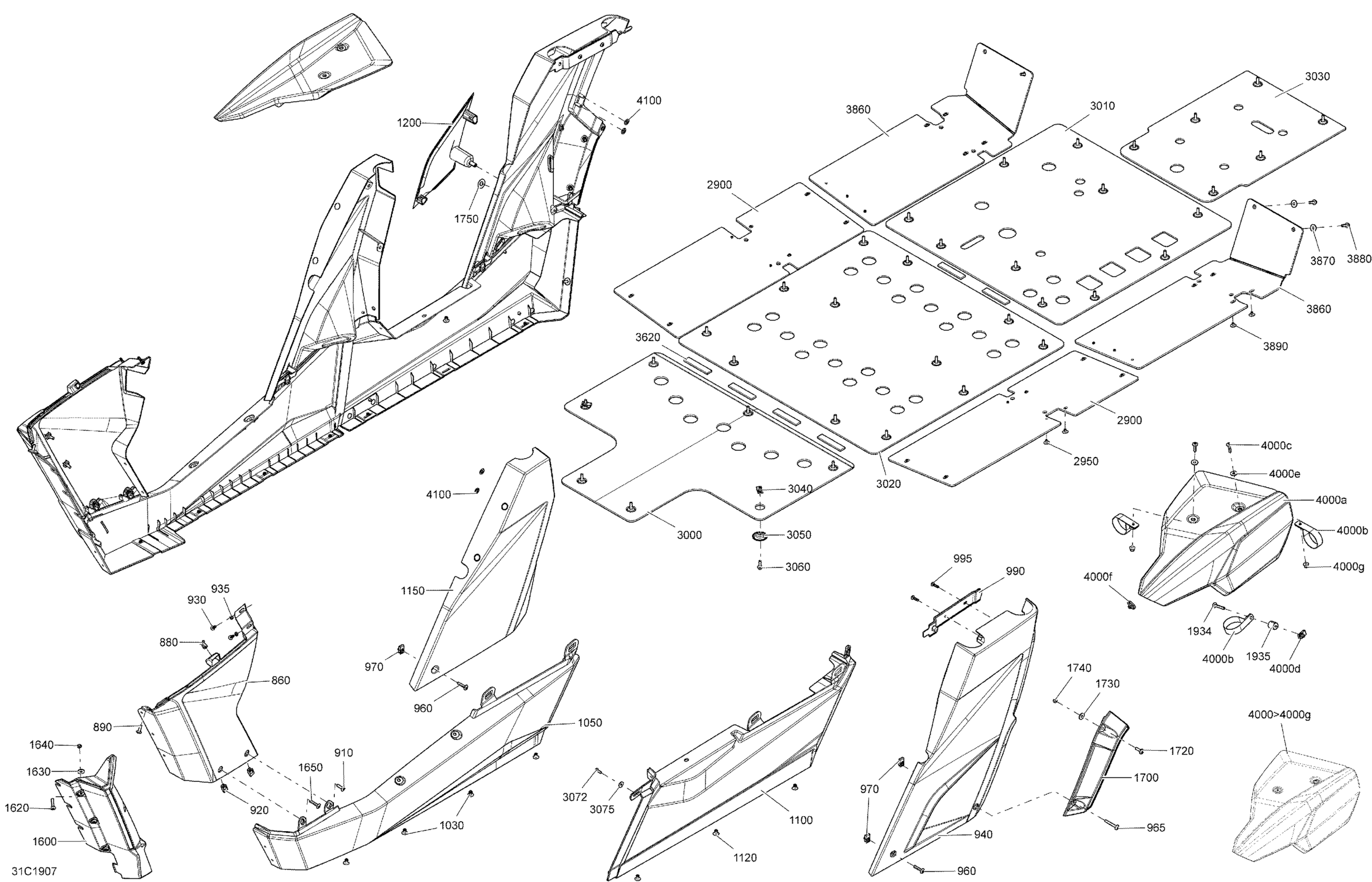

Can-Am Commander MAX 1000R EFI - 2019 Body And Accessories - Central Panel - Squadron Green Diagram

#

Description
Price

860

Squadron Green, LH Front Lateral Panel | Squadron Green Models

705011538

$41.51

870

Squadron Green, RH Front Lateral Panel | Squadron Green Models

705011539

$41.51

880

Tuflok Plastic Rivet

293150230

$1.21

890

Torx Screw M6 X 20

250000722

$1.34

900

Panel Nut M6 X 1.0

250100198

$1.73

910

Torx Screw M6 X 20

250000722

$1.34

915

Torx Screw M6 X 20

250000722

$1.34

920

Panel Nut M6 X 1.0

250100198

$1.73

930

Torx Screw Truss Head K50X20 T20

250000760

$1.74

935

Flat Washer M5

234051410

$0.44

940

Squadron Green, LH Rear Lateral Panel | Squadron Green Models

705011545

$96.89

950

Squadron Green, RH Panel | Squadron Green Models

705011567

$92.28

960

Torx Truss Screw M6 X 30

250000843

$1.74

965

Torx Screw M6 X 45

250000748

$1.56

970

Panel Nut M6 X 1.0

250100198

$1.73

990

Support Skid Plate

705007916

$12.68

995

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1030

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1050

Black, LH Lower Panel | Model-DPS

705005423

$59.97

1060

Black, RH Lower Panel | Model-DPS

705005424

$59.97

1100

Black, LH Rear Lower Panel

705005425

$106.12

1110

Black, RH Rear Lower Panel

705005426

$110.74

1120

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1150

Squadron Green, LH Central Panel | Squadron Green Models

705011569

$69.20

1160

Squadron Green, RH Central Panel | Squadron Green Models

705011570

$69.20

1200

Squadron Green, Panel Cover | Squadron Green Models

705011573

$87.66

2900

Side Protector Plate

705008421

$50.74

2950

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

3000

Middle Protector Plate

705007055

$78.43

3010

Rear Protector Plate

705007056

$115.35

3020

Skid Plate

705009447

$115.35

3030

Rear Protector Plate

705007227

$32.28

3040

Panel Nut M6 X 1.0

250100198

$1.73

3050

Cup | Package Hunter

705007171

$6.18

3060

Hexagonal Head Screw

210262050

$1.74

3072

Torx Screw K50 X 16

250000720

$1.39

3075

Washer M5

250200025

$0.61

3620

Pad

291001932

$8.57

3860

RH Lateral Skid Plate

705007038

$64.58

3870

Flat Washer

250200097

$1.74

3880

Hexagonal Head Screw

210262050

$1.74

3890

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4100

Push Nut

250100031

$6.86
