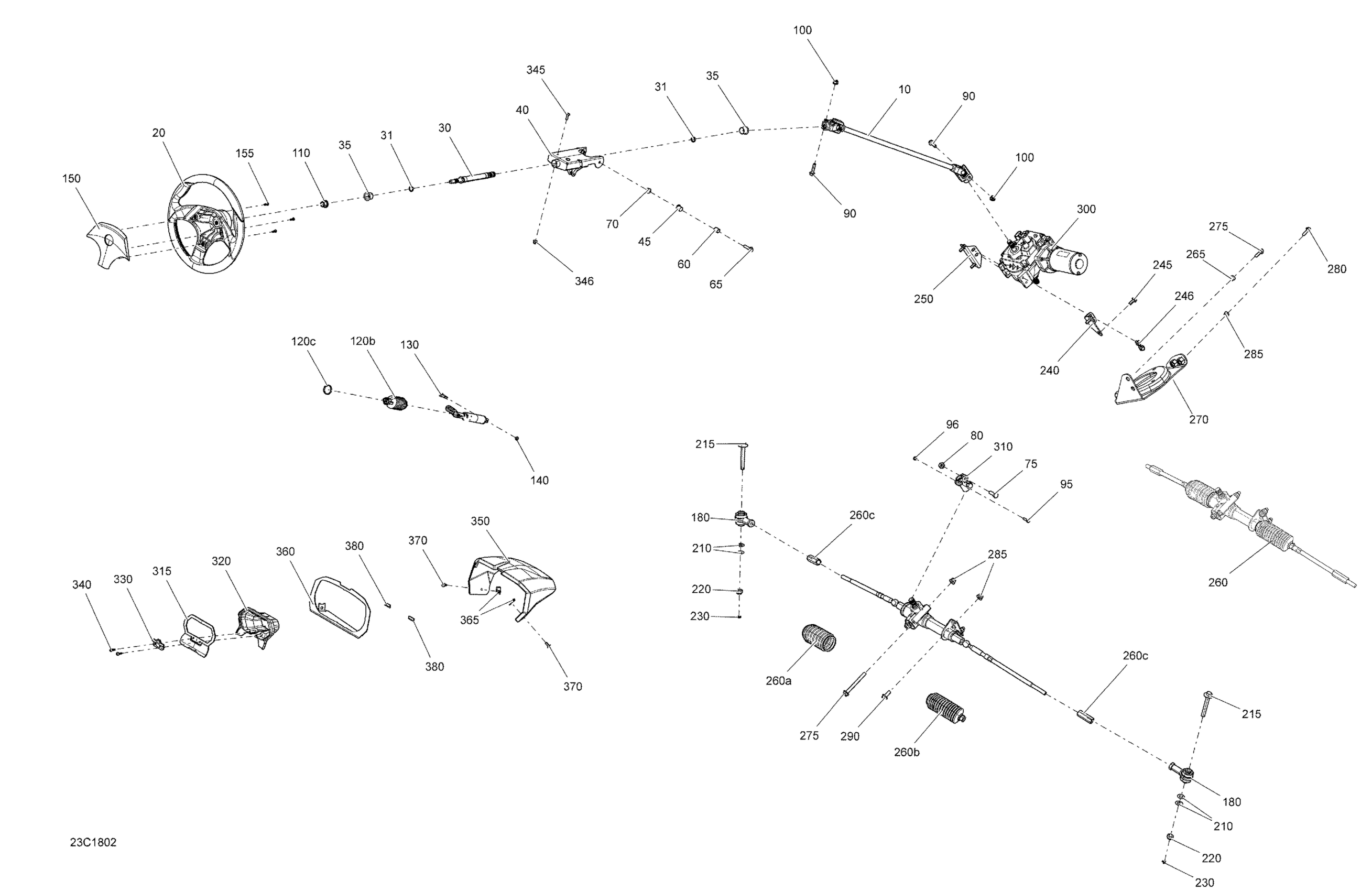

Can-Am Commander MAX 1000R EFI - 2019 Steering - Except Package STD Diagram

#

Description
Price

10

Steering Shaft Ass'y | Package XT, Hunter

709401687

$177.58

20

Steering Wheel | STD

709400650

$126.84

20

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

20a

Cap | Package Hunter

715500341

Unavailable

30

Steering Shaft

709401167

$44.00

31

O-Ring

293300144

$3.79

35

Steering Bushing

709402725

$3.07

40

Painted Steering Wheel Support

709401391

$76.84

45

Bushing

705600799

$3.72

60

Bushing

293900106

$4.28

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

70

Hex. Flange Elastic Nut M8

233281414

$1.31

75

Hex. Screw M10 X 35

250001020

$0.96

80

Elastic Stop Nut M10

232500416

$1.79

90

Hex. Flange Screw M8 X 35

250001021

$4.15

95

Hex. Screw M6 X 30

207063044

$1.12

96

Elastic Stop Nut M6

232561414

$1.78

100

Hex. Elastic Flange Nut M8

233281416

$1.43

110

Hex. Flange Elastic Nut M12

233221414

$5.85

120a

Adjustment Cylinder

709402506

$64.90

120b

Boot Tube Side

709401232

$15.64

120c

Tie-Rap 180 mm

414115200

$0.10

130

Socket Head Screw M8 X 16

250000669

$3.00

140

Elastic Stop Nut M6

232561414

$1.78

150

Steering Center | STD

709400780

$10.82

155

Phillips Screw K40 X 16

250000723

$0.93

180

Ball Joint

709401134

$49.22

210

Hardened Washer

706200281

$2.69

215

Hexagonal Screw M12 X 88

250001029

$5.96

220

Elastic Stop Nut M12

232521416

$1.61

230

Cotter Pin

211400017

$0.28

240

RH Power Steering Support

709402178

$11.72

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

250

Left DPS Support

709401869

$9.91

260

Rack And Pinion Steering

709402387

$453.70

260a

Boot Kit, Pinion Side

715900235

$50.72

260b

Boot Kit, Tube Side

715900236

$50.72

260c

Nut Tie Rod End

715900237

$13.31

265

Hex. Flange Elastic Nut M8

233281414

$1.31

270

Power Steering Support Ass'y | Package XT, Hunter

709402176

$20.12

275

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.00

280

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

285

Hex. Flange Elastic Nut M10

233201436

$2.00

290

Hex. Flange Screw M10 X 25

207602546

$2.00

300

Power Steering Ass'y

709402727

$1,971.61

310

Coupling

709401719

$29.82

315

Cluster Support | STD

709400760

$19.37

320

Speedometer Cover

709400514

$14.90

330

Latch Indicator Cover

709400573

$9.90

340

Torx Screw Truss Head K50X20 T20

250000760

$2.00

345

Torx Screw M6 X 20

250000722

$1.54

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

350

Upper Cluster Cover | X, XT

707900124

$14.76

360

Cluster Support | X, XT

707900013

$14.76

365

Panel Nut M6 X 1.0

250100198

$1.99

370

Torx Truss Screw M6 X 16

250000721

$1.60

380

Gasket, Neoprene 2000Mm Long

219704476

$14.51
