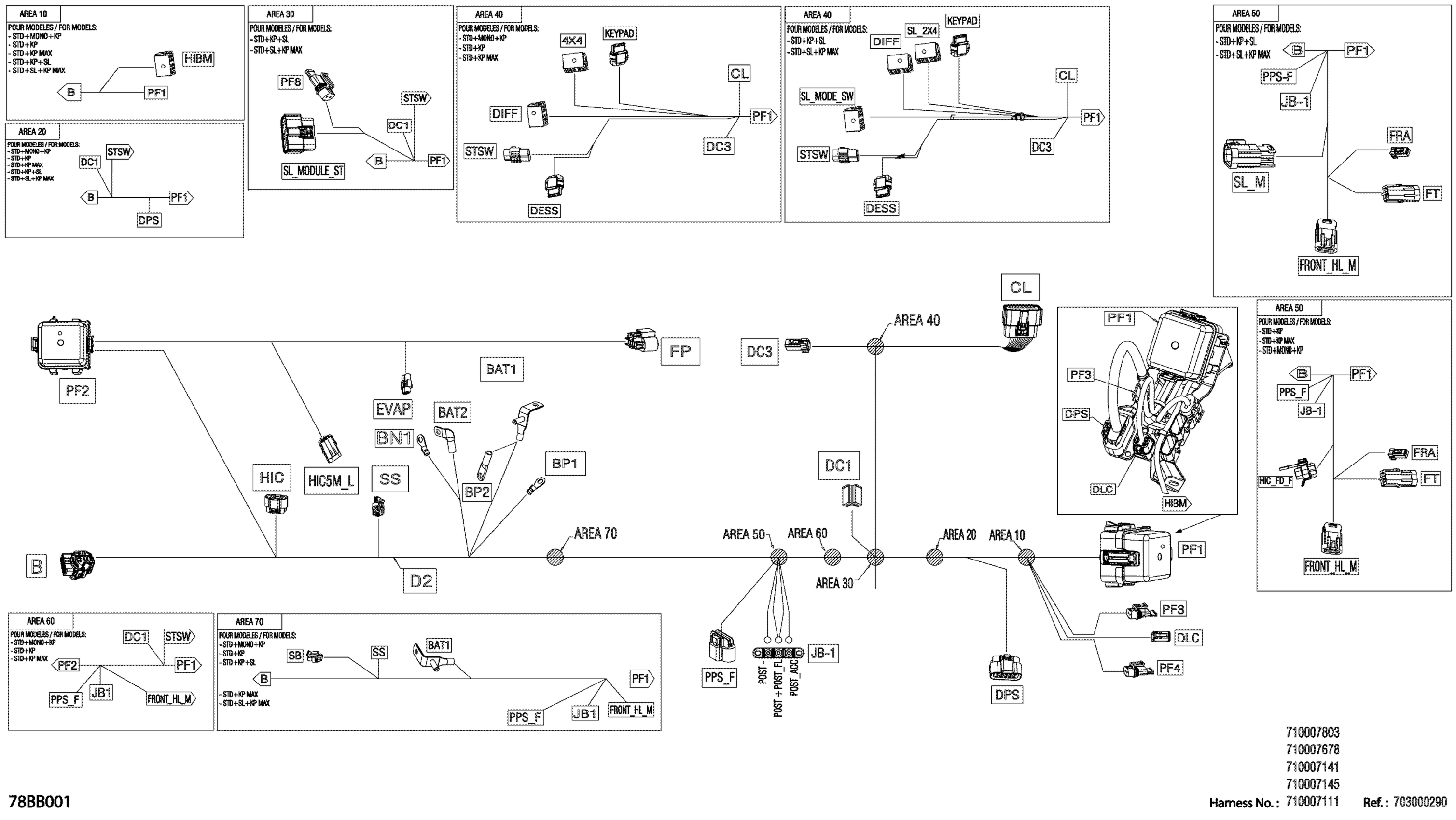

Can-Am Commander 700 EFI - DPS - 2022 Electric - Main Harness - 710007678 Diagram

#

Description
Price

300

Main Wiring Harness

710007678

$879.99

4X4

Label

710006075

$0.01

4X4

Housing

710002000

$7.90

4X4

Female Terminal

710005491

$2.09

4X4

Terminal

710003047

$3.49

B

Cover, 48 positions

710001591

$12.18

B

Female Terminal Housing, 48 Circuits

710001588

$48.49

B

Plug

710001592

$2.21

B

Plug

710001593

$2.21

B

Female Terminal

710001589

$2.21

B

Terminal

710001728

$6.79

B

Female Terminal

710001727

$3.19

BN1

Open Barrel Terminal

278001392

$4.79

BP1

Shrink Tubing, 6 mm

515177246

$1.04

BP1

Open Barrel

278000992

$2.21

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

CL

Female Terminal 22 AWG

515178349

$2.29

D2

Diode

409012700

$11.12

DC1

Housing

710005373

$5.29

DC1

Female Terminal

710005952

$1.49

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3_CAP

Male Housing, 2 Circuits

710000667

$8.32

DESS.

Housing

710001161

$11.12

DESS.

Lock

710001162

$3.19

DESS.

Wire Seal

710001163

$7.69

DESS.

Female Terminal

710001164

$8.89

DIFF

Label

710006076

$0.01

DIFF

Housing Connector

710002003

$13.71

DIFF

Female Terminal

710005491

$2.09

DIFF

Terminal

710003047

$3.49

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

EVAP

Wire Seal

710000402

$4.55

EVAP

Female Terminal

409012100

$4.55

FL-1

Fuse Link 21-30AMP

715002536

$16.86

FL-2

Fuse Link 41-50AMP

715002538

$21.99

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Lock

710001222

$2.09

FP

Lock

710006214

$0.82

FP

Wire Seal

278002186

$5.50

FP

Seal

710003153

$0.99

FP

Female Terminal

278002187

$6.39

FP

Terminal

710001873

$2.09

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

710003896

$2.19

FRONT_HL_M

Clip Bracket Connector (edge)

409210100

$2.09

FRONT_HL_M

Housing

515177201

$7.73

FRONT_HL_M

Lock

710006398

$0.82

FRONT_HL_M

Seal Wire

710001332

$3.28

FRONT_HL_M

Seal

710001233

$3.19

FRONT_HL_M

Terminal

710001223

$3.19

FRONT_HL_M

Terminal

710001224

$3.19

FT

Clip

710000992

$4.29

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIBM

Label

710006074

$0.01

HIBM

Housing Connector

710002001

$13.71

HIBM

Terminal

710003047

$3.49

HIBM

Female Terminal

710005491

$2.09

HIC

Female Housing, 12 Circuits

710001930

$15.80

HIC

Lock

710001222

$2.09

HIC

Lock

710006333

$6.79

HIC

Cap

710001225

$9.19

HIC

Seal Wire

710001332

$3.28

HIC

Seal

710001233

$3.19

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HIC_FD_F

Connector Guard

710007680

$11.00

HIC_FD_F

Housing

710001132

$9.85

HIC_FD_F

Lock

710001133

$4.39

HIC_FD_F

Seal

278001482

$3.19

HIC_FD_F

Female Terminal

710001134

$7.69

HIC5M_L

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

HIC5M_L

Wire Seal

278001065

$7.69

HIC5M_L

Male Terminal | XT Models

278000222

$3.19

JB-1

Junction Block Cover

710006610

$20.99

JB-1

Elastic Stop Nut M6, Brass

232561200

$4.23

KEYPAD

Housing

710001161

$11.12

KEYPAD

Lock

710001162

$3.19

KEYPAD

Wire Seal

710001163

$7.69

KEYPAD

Female Terminal

710001164

$8.89

PF1

Fuse Cover

278003553

$3.72

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Housing Support

710005671

$9.59

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

710000048

$7.69

PF1

Wire Seal

278001065

$7.69

PF1

Female Terminal

515177177

$6.49

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1_STD_LABEL

Fuse Box Decal

710007046

$14.99

PF1-F10

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F11

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF1-R3

Relay, 30 AMP

515176774

$21.99

PF1-R8

Relay

715900824

$21.99

PF1-R9

Relay, 50 AMP

515176775

$15.79

PF1-SP1

Little Fuse, 20 Amperes

710000746

$8.49

PF2

Fuse Cover

278003553

$3.72

PF2

Fuse Box Decal

710006792

$14.49

PF2

Fuse Base Ass'y

278003448

$31.99

PF2

Wire Seal

278000216

$3.19

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

278001065

$7.69

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2_SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F9

Fuse, 25 Amps

710002590

$19.49

PF2-R1

Relay, 30 AMP

515176774

$21.99

PF2-R2

Relay

715900824

$21.99

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F2

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000113

$6.99

PF4

Female Terminal

710000357

$7.69

PF4-F21

Fuse

710001613

$8.79

POST_ACC

Shrink Tubing, 6 mm

515177246

$1.04

POST_ACC

Open Barrel

278000992

$2.21

POST_FL

Shrink Tubing, 6 mm

515177246

$1.04

POST_FL

Open Barrel

278000992

$2.21

PPS_F

Housing

710001232

$14.29

PPS_F

Lock

710001222

$2.09

PPS_F

Seal

710001233

$3.19

PPS_F

Terminal

710001229

$3.19

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Lock

710001152

$4.39

SS

Wire Seal

710001163

$7.69

SS

Female Terminal

710001164

$8.89

STSW

Wire Seal

710000402

$4.55

STSW

Female Terminal

409012100

$4.55
