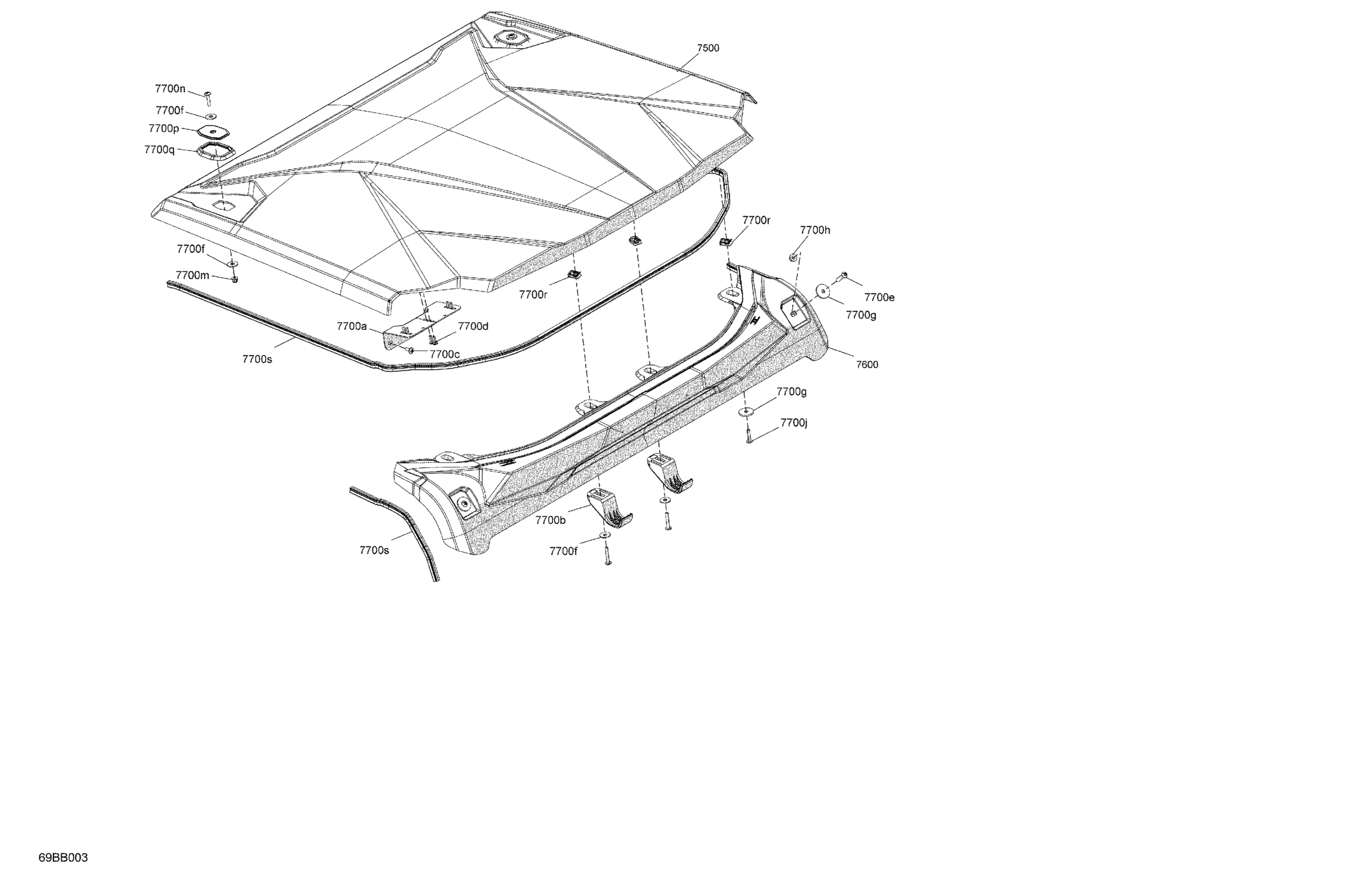

Can-Am Commander 700 EFI - XT - 2022 Body - Roof Diagram

Description

Price

7500

Deep Black, Front Rigid Roof

705800679

$193.82

7600

Deep Black, Rear Roof Visor

705800681

$50.74

7700a

Roof Anchor

705800804

$14.37

7700b

Roof Anchor

705800795

$12.91

7700c

Torx Truss M8 X 16

250000881

$1.74

7700d

Torx Screw K50 X 16

250000720

$1.39

7700e

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

7700f

Stainless Steel Flat Washer

234082670

$1.74

7700g

Flat Washer M8

250200158

$1.74

7700h

Hex. Flange Nut M8

233181414

$0.91

7700j

Torx Truss Screw M6 X 30

250000843

$1.74

7700k

Torx Truss M/S M6 X 40

705800890

$17.99

7700m

Hex. Flange Elastic Nut M6

233261494

$1.26

7700n

Stainless, Torx Screw M6 X 30

250000842

$1.74

7700p

Spacer

708303993

$2.75

7700q

Gasket

708304060

$2.75

7700r

Panel Nut M6 X 1.0

250100208

$1.07

7700s

Outer Seal

705800054

$36.89
