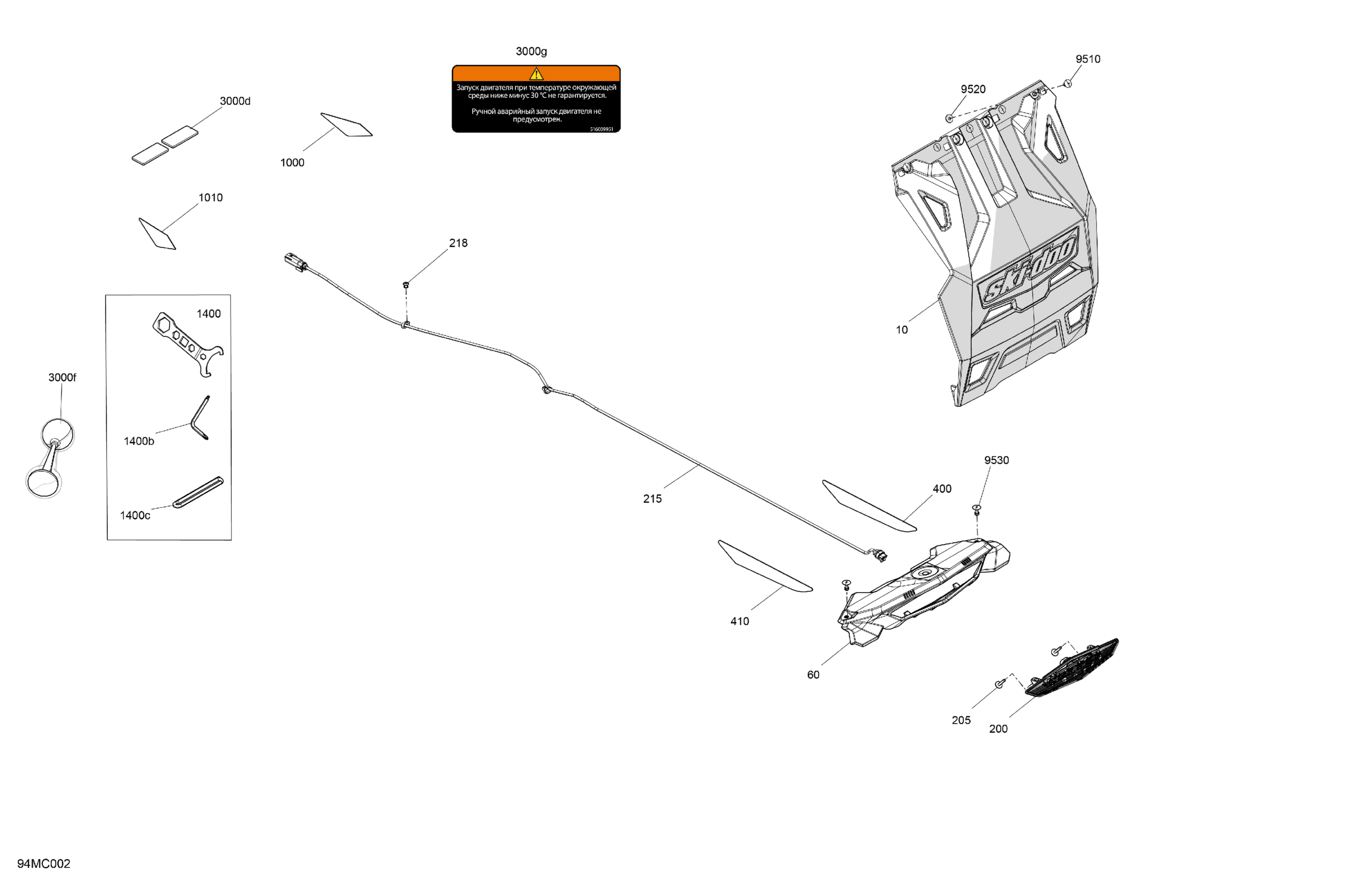

Ski-Doo 004 - BACKCOUNTRY 850 E-TEC - XRS - 154 Europe, 2023 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Gard

520001481

$100.49

Light Fairing

520001487

$20.99

200

Tail Light

520002710

$78.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

215

Rear Light Harness

515178267

$26.99

218

Pop Rivet 3/16"

390402200

$0.35

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400c

520001814

$27.99

1400b

Key

520001815

$11.79

1400c

Rope Starter

529017500

$1.17

3000c

Red, Reflector

705015551

$9.59

3000d

Amber, Reflector

520002680

$20.99

3000f

Horn

549011291

$35.99

3000g

Warning Decal, Security

516009951

Unavailable

9510

Pop Rivet 3/16”

293150108

$1.19

9520

Washer

517124300

$0.19

9530

Pop Rivet 3/16"

293150100

$1.09
