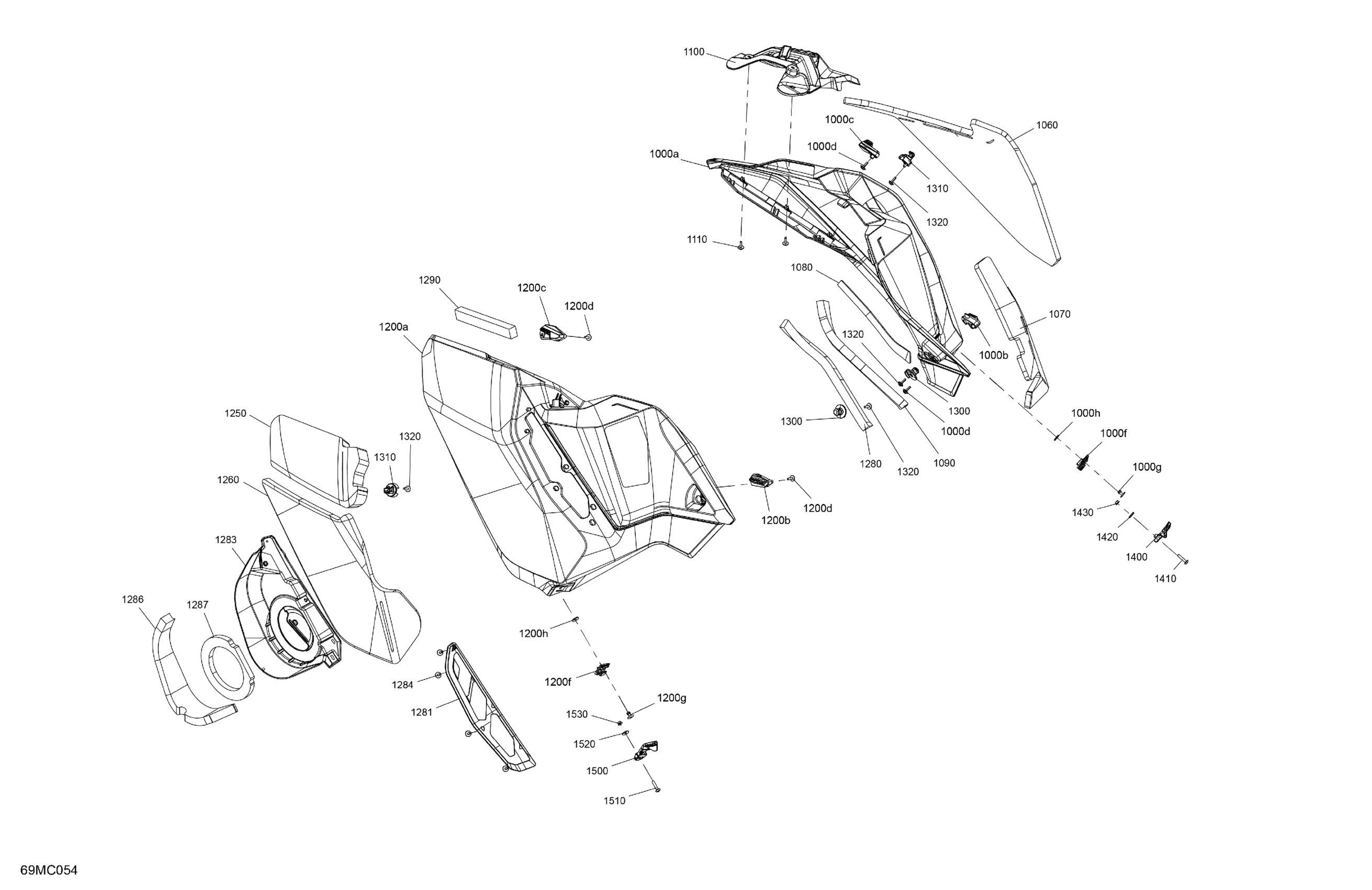

Ski-Doo BACKCOUNTRY 850 E-TEC - X - 2023 Body - Side Panels - Without DSHOT Diagram

Description

Price

1000a

Deep Black, RH Panel

517306875

$214.99

1000a

Catalyst Gray, RH Panel

517307399

$214.99

1000b

RH Rear Latch

517305773

$18.49

1000c

RH Front Latch

517305979

$16.79

1000d

Screw M4 X 16

250000725

$3.49

1000f

RH Hook

517306311

$12.99

1000g

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1000h

Washer

517124300

$0.19

1060

RH Central Panel Foam

517306188

$29.99

1070

RH Rear Panel Foam

517306586

$13.49

1080

Rubber Sheet

517306262

$30.99

1090

RH Rear Panel Foam

517306480

$11.99

1100

RH Front Grille Ass'y | Includes 1100 to 1100c

517308289

$31.99

1110

Screw M4 X 16

250000725

$3.49

1200a

Deep Black, LH Panel

517307324

$239.99

1200a

Catalyst Gray, LH Panel

517307405

$214.99

1200b

LH Rear Latch

517305774

$18.49

1200c

LH Front Latch

517305980

$18.49

1200d

Screw M4 X 16

250000725

$3.49

1200f

LH Hook

517306312

$12.99

1200g

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200h

Washer

517124300

$0.19

1250

LH Front Panel Foam

517305769

$19.99

1260

Foam

517307029

$17.49

1280

LH Rear Panel Foam

517306479

$11.99

1281

LH Grille

517306937

$16.86

1283

Duct

517307283

$18.49

1284

Screw M4 X 16

250000725

$3.49

1286

Duct Foam

517306960

$14.49

1287

Foam

517307639

$6.39

1290

Foam

517306594

$11.99

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

1400

RH Lower Latch

517306309

$18.99

1410

Torx Screw M5 X 25

250000762

$2.11

1420

Washer | DS 650 X

391301600

$0.48

1430

Hex. Flange Nut M5

233151414

$0.55

1500

LH Lower Latch

517306310

$18.99

1510

Torx Screw M5 X 25

250000762

$2.11

1520

Washer | DS 650 X

391301600

$0.48

1530

Hex. Flange Nut M5

233151414

$0.55
