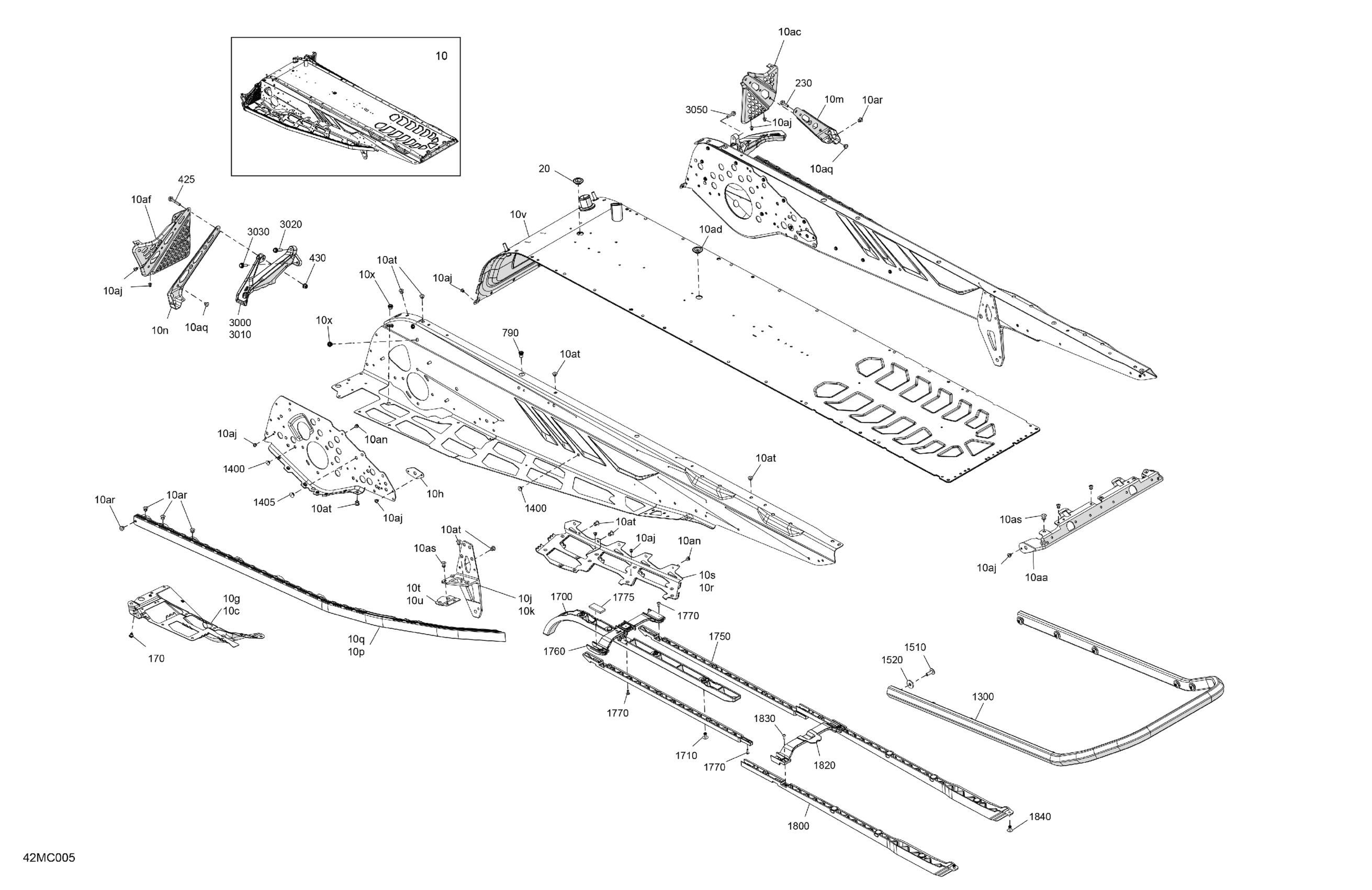

Ski-Doo BACKCOUNTRY 850 E-TEC - X - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 146" | Model Deep Black

415130511

$3,445.49

10

Catalyst Gray, Chassis Tunnel Module 146 | Model Neo Yellow

415130512

$3,291.01

10c

RH Footrest Reinforcement

518332578

$79.07

10g

LH Footrest Reinforcement

518332577

$79.07

10h

Reinforcement Plate

518326647

$4.21

10j

LH Rear Suspension Support

518334390

$41.76

10k

RH Rear Suspension Support

518334391

$93.25

10m

Stirrup Reinforcement

518334507

$17.88

10n

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10p

RH Roller

518328451

$175.34

10q

LH Roller

518328452

$175.34

10r

RH Tunnel Liner

518329646

$32.06

10s

LH Tunnel Liner

518329647

$32.06

10t

LH Reinforcement Plate

518329088

$2.99

10u

RH Reinforcement Plate

518329089

$4.09

10v

Radiator Tunnel 146

518334489

$658.93

10x

Insert Half Hex Body M6 x 1.0

250100199

$2.91

10aa

Rear Cap

518328990

$20.12

10ac

RH Footrest

518333006

$37.28

10ad

Black, Plug

293730052

$6.18

10af

LH Footrest

518333007

$37.28

10aj

Rivet Avibulb 3/16

293150203

$0.28

10an

Henrob Rivet

293150245

$1.60

10aq

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10ar

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10as

Rivet Ornit 6,5 X 16.5

293150267

$1.88

10at

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

Black, Plug

293730052

$6.18

170

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 x 35

207663546

$0.99

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

790

Insert

293450278

$3.97

1300

Rear Bumper 146

518329553

$160.42

1400

Black, Dart 8 mm

293730047

$2.07

1405

Black, Dart 10 mm

293730060

$4.28

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

1700

Front Protector

518329982

$17.13

1710

Pop Rivet 3/16”

293150108

$1.19

1750

Rear Protector

518329994

$7.33

1760

Front Protective Structure

518334162

$3.30

1770

Torx Truss PT K40 x 12

250001131

$2.00

1775

Gasket

705002447

$3.52

1800

Rear Protector

518329979

$7.33

1820

Central Protective Structure

518333936

$3.30

1830

Torx Truss PT K40 x 12

250001131

$2.00

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$22.36

3010

Toe Hold

518329134

$15.64

3020

Hex. Flange Screw M6 X 25

250000793

$2.00

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

3050

Hex Screw Forming M6 x 25

250001124

$1.88
