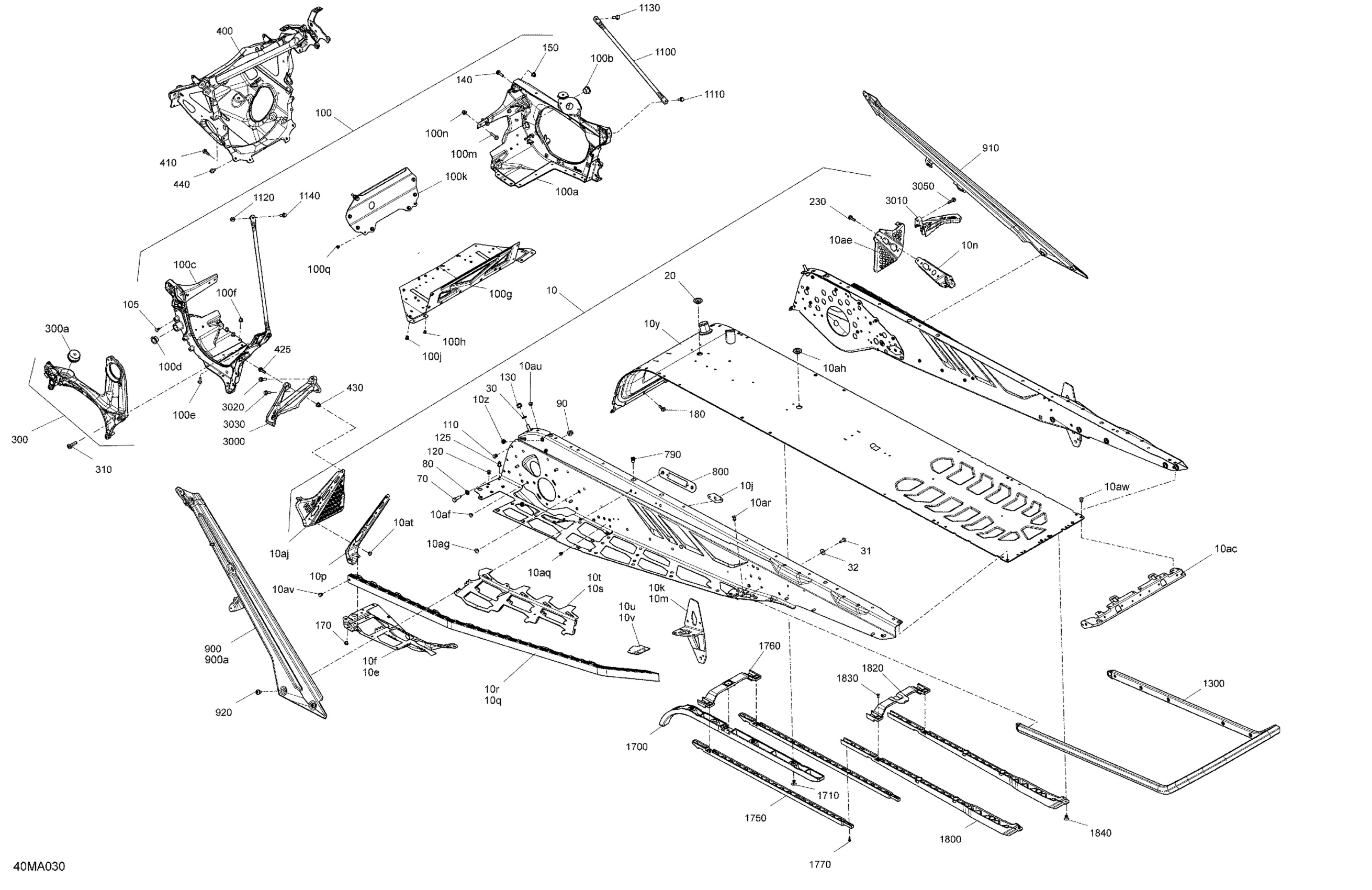

Ski-Doo BACKCOUNTRY 850 E-TEC - X - 2021 Frame - System - X Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 146" | Model Deep Black

415130511

$3.00

10

Dazzling Blue, Chassis Tunnel Module 146" | Model Labrador Blue

415130391

$4.00

10e

RH Footrest Reinforcement

518332578

$88.99

10f

LH Footrest Reinforcement

518332577

$88.99

10j

Reinforcement Plate

518326647

$4.69

10k

LH Suspension Bracket

518328467

$45.99

10m

RH Rear Suspension Support

518334391

$94.99

10n

Stirrup Reinforcement

518331253

$21.99

10p

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10q

RH Roller

518328451

$194.99

10r

LH Roller

518328452

$194.99

10s

RH Tunnel Liner

518329646

$35.99

10t

LH Tunnel Liner

518329647

$35.99

10u

LH Reinforcement Plate

518329088

$3.39

10v

RH Reinforcement Plate

518329089

$4.59

10y

Radiator Tunnel 146

518334489

$739.99

10z

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ac

Rear Cap

518328990

$22.49

10ae

RH Footrest

518328460

$44.99

10af

Black, Dart 8 mm

293730047

$2.21

10ag

Black, Dart 10 mm

293730060

$4.55

10ah

Black, Plug

293730052

$9.19

10aj

LH Footrest

518333007

$40.99

10aq

Rivet Avibulb 3/16

293150203

$2.09

10ar

Rivet

293150183

$2.11

10at

Hemlock Rivet, 6.5 mm

293150096

$3.27

10au

Hemlock Rivet, 6.5 mm

293150119

$4.29

10av

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

30

Flat Washer 8 mm

234081410

$0.83

31

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

32

Flat Washer

224061201

$1.37

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$219.99

100b

Leg Bushing

505072690

$12.49

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100d

Leg Bushing

505072690

$12.49

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100f

Collar Huck Magna-Grip 6.4

293150149

$0.48

100g

Bottom Plate

518332716

$36.99

100h

Rivet Avibulb 3/16

293150203

$2.09

100j

Insert M5 X 0.8

293450268

$2.09

100k

Front Member

518330100

$60.99

100m

Hex. Flange Screw M6 X 25

250000945

$4.44

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

100q

Rivet Avibulb 3/16

293150203

$2.09

105

Dart

293730079

$2.09

110

Ornit Rivet 6,5 X 14.5

293150266

$2.40

120

Hemlock Rivet, 6.4 mm

293150174

$7.86

125

Hemlock Rivet 6.5 mm

293150120

$7.41

130

Hex. Flange Elastic Nut M8

233281414

$1.47

140

Hex. Flange Screw M6 X 20

207662046

$2.11

150

Elastic Flange Nut M6 X 1.0

233261416

$2.11

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

230

Hex. Flange Screw M6 X 20

207562056

$2.11

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

425

Hex. Flange Screw M6 x 35

207663546

$1.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

440

Hex. Flange Screw M6 X 16

207661636

$1.35

790

Insert

293450278

$4.49

800

Member Fixation Plate

518329480

$12.99

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

900a

RH Rear Diagonal Cross Member

518330885

Unavailable

900

White, LH Rear Diag Cross Member | White

518330137

$119.99

910

Black, RH Member Ass'y | Black

518330880

$119.99

910

White, RH Rear Diag Cross Member

518331056

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1140

Hex. Flange Screw M6 X 20

207662046

$2.11

1300

Rear Bumper 146

518329553

$169.49

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

1750

Rear Protector

518329994

$9.23

1760

Front Protective Structure

518333935

$3.69

1770

Torx Truss PT K40 x 12

250001131

$2.11

1800

Rear Protector

518329979

$9.23

1820

Support

520001545

$2.00

1830

Torx Truss PT K40 x 12

250001131

$2.11

1840

Pop Rivet 3/16”

293150108

$1.19

3000

Black Toe-hold

518330358

$24.99

3010

Toe Hold

518329134

$18.99

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

3050

Hex Screw Forming M6 x 25

250001124

$2.40
