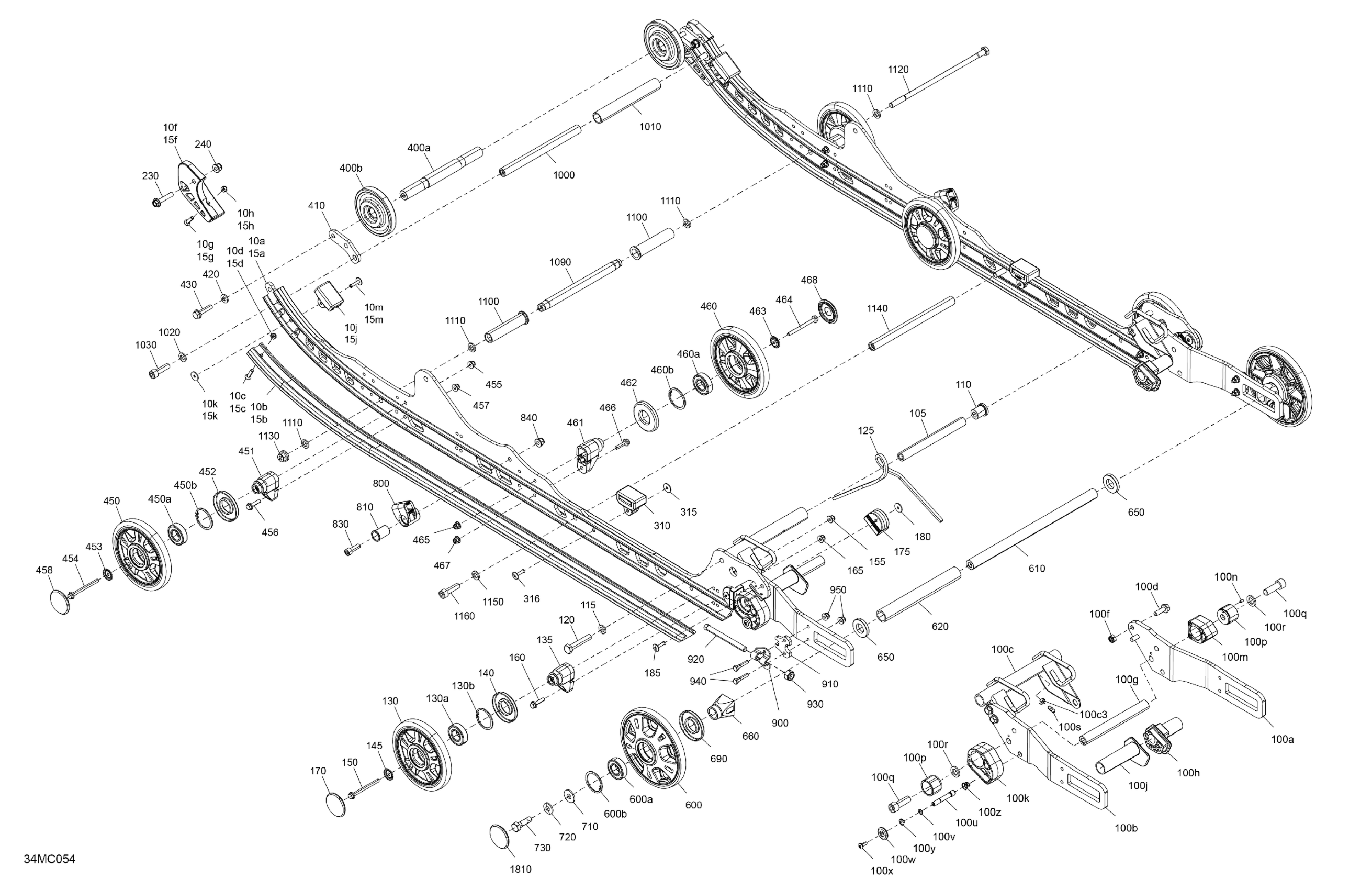

Ski-Doo TUNDRA LT 600 EFI - (GDPA) - 2023 Suspension - Rear - Lower Section Diagram

#

Description
Price

10a

Deep Black, Rail Suspension 154 | Includes 10a to 10a1

503196058

$272.36

10b

Black Slider, 154"

503192618

$32.06

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561434

$1.78

10f

LH Protector

503192609

$26.09

10g

Phillips Screw M6 X 25

208562531

$2.00

10h

Elastic Stop Nut M6

232561434

$1.78

10j

Rubber Stopper

503190576

$9.93

10k

Washer

503191273

$1.03

10m

Rivet Ornit 4.8 X 27.5

293150256

$1.88

15a

Deep Black, Rail Suspension 154 | Includes 10a to 10a1

503196058

$272.36

15b

Black Slider, 154"

503192618

$32.06

15c

Phillips Screw M6 X 25

208562531

$2.00

15d

Elastic Stop Nut M6

232561434

$1.78

15f

RH Protector

503192610

$26.09

15g

Phillips Screw M6 X 25

208562531

$2.00

15h

Elastic Stop Nut M6

232561434

$1.78

15j

Rubber Stopper

503190576

$9.93

15k

Washer

503191273

$1.03

15m

Rivet Ornit 4.8 X 27.5

293150256

$1.88

100a

Black, RH Pivot Support Long

503195759

$81.31

100b

Black, LH Pivot Support Long

503195760

$81.31

100c

Runner Pivot | Includes 100c to 100c3

503192647

$50.72

100c3

Hexagonal Nut M6

232061404

$0.31

100d

Hex. Flange Screw M8 X 25

207682544

$1.03

100f

Hex. Elastic Stop Nut M8

232581414

$0.54

100g

Cam Axle

503191608

$14.58

100h

RH Spring Cam

503191190

$13.37

100j

LH Spring Cam

503191668

$9.88

100k

LH Block

503192426

$12.31

100m

RH Block

503192427

$12.31

100n

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

100p

Block Guide

503189488

$36.54

100q

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

100r

Washer | 7415/7416. 7417/7418.

503189148

$2.64

100s

Grease Fitting

408200700

$3.21

100t

Rode

503192437

$5.67

100u

Flat Washer M5

234051410

$0.51

100v

Handle

503192438

$4.52

100w

Torx Screw M5 X 14

250000742

$1.37

100x

Circlip

293370068

$0.90

100y

Compression Spring

503192436

$36.54

105

Lower Shaft

503191279

$26.84

110

Bushing

503189324

$10.84

115

Washer

503192496

$0.73

120

Hex. Screw S.Grip M10 X 55

250000605

$7.09

125

Spring

503194624

$29.07

130

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

130a

Ball Bearing | Package-STD

503190396

$8.18

130b

Retaining Ring

415129371

$8.66

135

Casted Support

503193894

$12.37

140

Labyrinth Seal

503190434

$4.16

145

Wheel Cup M6

503191820

$4.52

150

Hex. Flange Screw M6 X 70

250000944

$4.15

155

Hex. Flange Elastic Nut M6

233261466

$1.91

160

Hex. Flange Screw M6 X 25

250000945

$4.15

165

Hex. Flange Elastic Nut M6

233261466

$1.91

170

Black, Wheel Cap

503192771

$2.21

175

Rubber Stopper

503191291

$17.88

180

Washer

503191273

$1.03

185

Rivet Ornit 4.8 X 27.5

293150256

$1.88

230

Hex. Flange Screw M8 X 40

207684044

$1.43

240

Elastic Flange Nut M8

233281466

$0.96

310

Rubber Stopper

503193504

$12.31

315

Washer

503191273

$1.03

316

Rivet Ornit 4.8 X 27.5

293150256

$1.88

400a

Front Wheel Axle

503192644

$141.76

400b

Black, Wheel Ass'y, 100 mm

503192611

$31.31

410

Plate

503192612

$11.10

420

Washer

503192494

$3.01

430

Hex. Flange Screw M8 X 35

250000986

$2.00

450

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

450a

Ball Bearing | Package-STD

503190396

$8.18

450b

Retaining Ring

415129371

$8.66

451

Casted Support

503193894

$12.37

452

Labyrinth Seal

503190434

$4.16

453

Wheel Cup M6

503191820

$4.52

454

Hex. Flange Screw M6 X 70

250000944

$4.15

455

Hex. Flange Elastic Nut M6

233261466

$1.91

456

Hex. Flange Screw M6 X 25

250000945

$4.15

457

Hex. Flange Elastic Nut M6

233261466

$1.91

458

Black, Wheel Cap

503192771

$2.21

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

460a

Ball Bearing | Package-STD

503190396

$8.18

460b

Retaining Ring

415129371

$8.66

461

Casted Support

503193894

$12.37

462

Labyrinth Seal

503190434

$4.16

463

Wheel Cup M6

503191820

$4.52

464

Hex. Flange Screw M6 X 70

250000944

$4.15

465

Hex. Flange Elastic Nut M6

233261466

$1.91

466

Hex. Flange Screw M6 X 25

250000945

$4.15

467

Hex. Flange Elastic Nut M6

233261466

$1.91

468

Black, Wheel Cap

503192771

$2.21

600

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$48.48

600a

Ball Bearing | Package-STD

503190396

$8.18

600b

Retaining Ring

415129371

$8.66

610

Rear Axle

503190429

$58.18

620

Rear Spacer, Long

503191736

$14.90

650

Washer

503190432

$12.15

660

Rear Wheel Spacer

503190428

$5.88

690

Labyrinth Seal

503190434

$4.16

710

Washer

503191910

$2.18

720

Conical Spring Washer 10 mm

234201474

$1.60

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

800

Spring Support Kit

861805547

$7.90

810

Bushing

503196210

$10.72

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

900

Tensioner

503192583

$5.67

910

Spacer

503193250

$13.54

920

Hex Screw M10 x 100

230100054

$6.07

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex. Cap Screw M6 X 30

207063054

$5.06

950

Hex. Flange Elastic Nut M6

233261466

$1.91

1000

Axle Strap

503192613

$33.55

1010

Spacer

503196943

$7.36

1020

Washer

503192496

$0.73

1030

Socket Head Screw M10 X 35

205503554

$7.09

1090

Pivot Axle

503193435

$37.28

1100

Spacer

503195825

$1.54

1110

Washer

503192496

$0.73

1120

Bolt M10 X 251MM

503193227

$15.64

1130

Flange Elastic Nut M10

233201466

$3.01

1140

Axle Strap

503191260

$28.33

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1810

Black, Wheel Cap

503192771

$2.21
