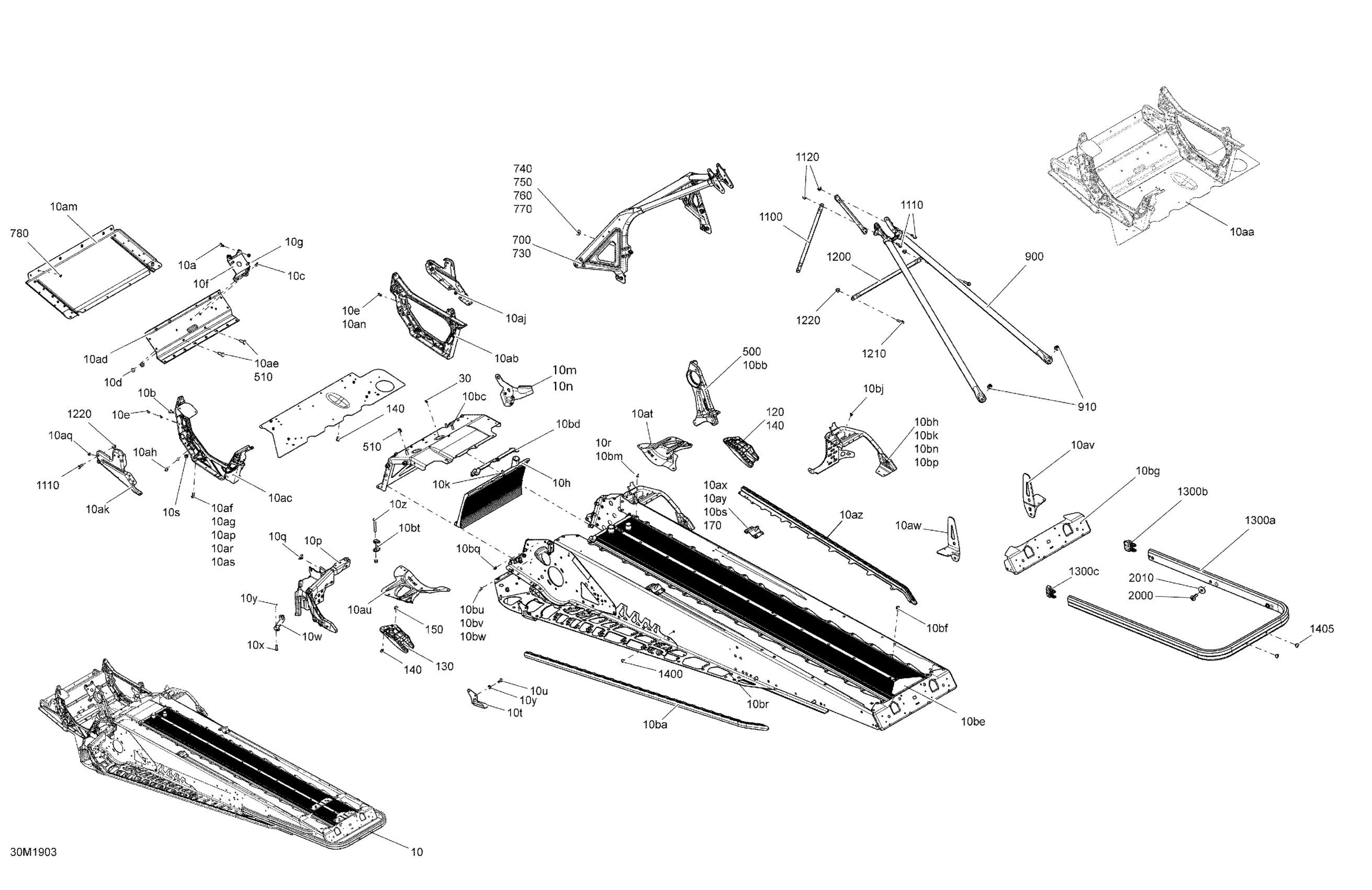

Ski-Doo Tundra 600HO E-TEC, 2019 Frame Diagram

#

Description
Price

10

FRAME TUNDRA XTREME NOIR - Call your local BRP dealership | Includes 10 to 10ce

415130261

$3.00

10a

Hex. Flange Screw M6 X 16

207661644

$0.74

10b

Hex. Flange Screw M6 X 16

210261650

$1.67

10c

Socket Screw Head 1/4-20 X 5/8''

250000512

$6.45

10d

Elastic Hex. Flange Nut 1/4-20

250100140

$7.51

10e

Monobolt Rivet, 4.8 mm

293150191

$0.99

10f

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

10g

Clinch Stud M6 X 20

250300027

$2.09

10h

Front Radiator | Includes 10b to 10b2

518326485

$444.99

10j

Front Radiator | Includes 10b to 10b2

518326485

$444.99

10k

Clinch Stud M6 X 20

250300027

$2.09

10m

RH Engine Support

518325559

$19.49

10n

Hemlock Rivet, 6.5 mm

293150096

$3.27

10p

LH Stirup

518326820

$37.99

10q

Panel Nut M5 X 0.8

250000958

$4.23

10r

Rivet Avibulb 3/16

293150203

$2.09

10s

Hemlock Rivet, 6.5 mm

293150119

$4.29

10t

Support

518326960

$12.99

10u

Tork Screw M6 X 18

250000536

$2.11

10v

Flat Washer

250200039

$0.74

10w

Attach | Includes 10n to 10p

518326986

$12.99

10x

Clinch Stud M6 X 20

250300027

$2.09

10y

Elastic Stop Nut M6

232561414

$0.55

10z

Torx Screw M8 X 55

250000535

$3.17

10aa

Module E TUNDRA Xtreme | Includes 10av to 10w

518326927

$769.99

10ab

RH Member

518326795

$284.99

10ac

LH Member

518326796

$229.99

10ad

Front Member

518326198

$64.99

10ae

Clinch Stud

250300038

$4.29

10af

Stavex Rivet

293150144

$0.82

10ag

Hemlock Rivet 6.5 mm

293150120

$7.41

10ah

Hemlock Rivet, 6.5 mm

293150119

$4.29

10aj

RH Front Member

518325949

$19.99

10ak

LH Front Member

518325950

$19.49

10am

Front Bottom Plate

518325951

$31.99

10an

Avex Rivet

390909100

$0.30

10ap

Monobolt Rivet 6.4

293150182

$3.09

10aq

Avex Rivet

390909200

$0.30

10ar

Hex. Flange Screw M6 X 10

210261040

$1.48

10as

Flat Washer 6 mm

234061410

$1.36

10at

RH Reinforcement

518324874

$27.99

10au

LH Reinforcement

518324875

$27.99

10av

RH Slide Bracket

518325955

$45.99

10aw

LH Slide Bracket

518325956

$49.99

10ax

RH Rear Base

518325973

$21.99

10ay

LH Rear Base | Includes 10v to 10x

518325974

$21.99

10az

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

10ba

LH Roller | Includes 10bd to 10be

518325160

$78.99

10bb

Clinch Stud

250300038

$4.29

10bc

Clinch Stud M6 X 20

250300027

$2.09

10bd

Seal

518326656

$9.19

10be

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

10bf

Stavex Rivet

293150144

$0.82

10bg

Rear Cap

518327105

$22.49

10bh

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

10bj

Avex Rivet

390909200

$0.30

10bk

Full Moon Dart 5 mm

293730042

$2.21

10bm

Rivet Avibulb 3/16

293150203

$2.09

10bn

Avex Rivet

390909100

$0.30

10bp

Stavex Rivet

293150144

$0.82

10bq

Henrob Rivet

293150146

$2.09

10br

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10bs

Hemlock Rivet, 6.4 mm

293150174

$7.86

10bt

U-Attach

518326961

$10.99

10bu

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10bv

Tork Screw M6 X 16

250000534

$2.11

10bw

Hex. Flange Nut M6

233061414

$1.68

30

Pop Rivet 3/16"

390402400

$0.35

120

RH Deflector, Black Polypropylene

518325782

$13.99

130

LH Deflector, Black Polypropylene

518325783

$13.99

140

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

170

Hemlock Rivet, 6.4 mm

293150174

$7.86

500

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

500a

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

510

Hex. Flange Elastic Nut M8

233281414

$1.47

700

Front Member, S Module

518328306

$244.99

730

Hex. Flange Screw M6 X 25

207662544

$0.64

740

Flat Washer

224061201

$1.37

750

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

760

Hex. Flange Screw M6 X 20

207662044

$2.00

770

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

780

Pop Rivet 3/16"

390402200

$0.35

900

Rear Member

518326559

$264.99

910

Hex. Flange Elastic Nut M8

233281414

$1.47

1100

Upper Lateral Column Support

518325114

$22.49

1110

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1200

Center Column Support

518325115

$22.49

1210

Hex. Flange Screw M6 X 25

207662544

$0.64

1220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1300a

Black Rear Bumper, 154"

518326611

$111.99

1300b

Black RH Cap

520000965

$11.49

1300c

Black LH Cap

520000964

$11.49

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

2000

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

2010

Flat Washer

224061201

$1.37
