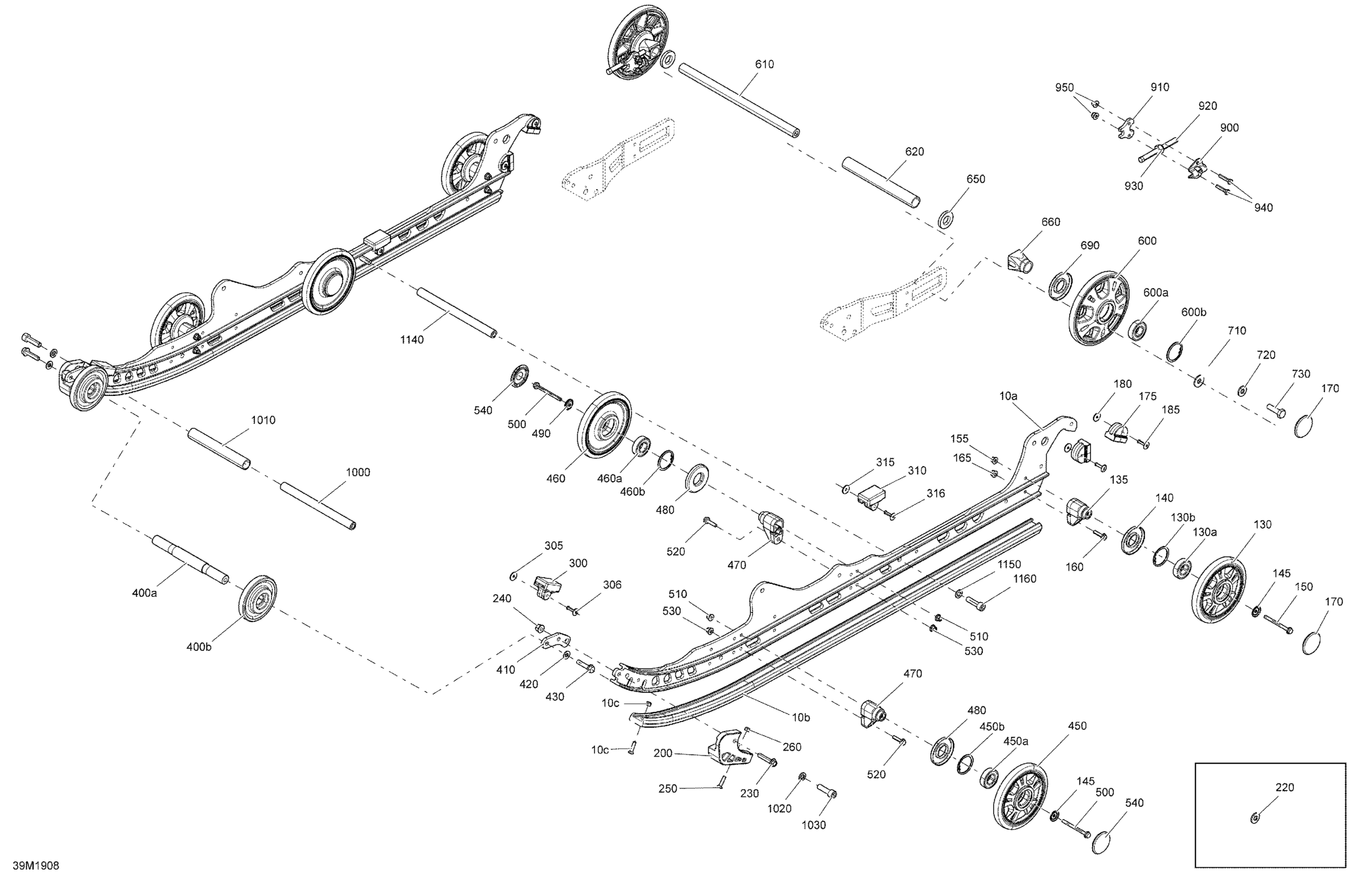

Ski-Doo Tundra 600HO E-TEC, 2019 Rear Suspension - Xtreme - Lower Section Diagram

#

Description
Price

10a

Green Machined Rail 154 | Includes 10a to 10b

503194599

$309.99

10a1

Runner

503193723

$244.99

10b

Black Slider, 154"

503192618

$34.99

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561414

$0.55

130

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

130a

Ball Bearing | Package-STD

503190396

$14.30

130b

Retaining Ring

415129371

$12.01

135

Casted Support

503193894

$16.49

140

Labyrinth Seal

503190434

$6.09

145

Wheel Cup M6

503191820

$4.99

150

Hex. Flange Screw M6 X 70

250000944

$4.44

155

Hex. Flange Elastic Nut M6

233261466

$2.00

160

Hex. Flange Screw M6 X 25

250000945

$4.44

165

Hex. Flange Elastic Nut M6

233261466

$2.00

170

Black, Wheel Cap

503192771

$2.39

175

Rubber Stopper

503191291

$19.99

180

Washer

503191273

$1.35

185

Pop Rivet 3/16

293150224

$1.01

200

LH Protector

503192609

$27.49

210

RH Protector

503192610

$27.49

230

Hex. Flange Screw M8 X 40

207684044

$1.48

240

Elastic Flange Nut M8

233281466

$1.01

250

Phillips Screw M6 X 25

208562531

$2.11

260

Elastic Stop Nut M6

232561414

$0.55

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rubber Stopper

503190576

$12.99

315

Washer

503191273

$1.35

316

Pop Rivet 3/16

293150224

$1.01

400a

Front Wheel Axle

503192644

$154.99

400b

Black, Wheel Ass'y, 100 mm

503192611

$33.99

410

Plate

503192612

$14.49

420

Washer

503192494

$3.17

430

Hex. Flange Screw M8 X 35

250000986

$2.11

450

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

450a

Ball Bearing | Package-STD

503190396

$14.30

450b

Retaining Ring

415129371

$12.01

460

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

460a

Ball Bearing | Package-STD

503190396

$14.30

460b

Retaining Ring

415129371

$12.01

470

Casted Support

503193894

$16.49

480

Labyrinth Seal

503190434

$6.09

490

Wheel Cup M6

503191820

$4.99

500

Hex. Flange Screw M6 X 70

250000944

$4.44

510

Hex. Flange Elastic Nut M6

233261466

$2.00

520

Hex. Flange Screw M6 X 25

250000945

$4.44

530

Hex. Flange Elastic Nut M6

233261466

$2.00

540

Black, Wheel Cap

503192771

$2.39

600

Deep Black, Wheel Ass'y, 165 mm | Includes 600 to 600b

503192128

$51.99

600a

Ball Bearing | Package-STD

503190396

$14.30

600b

Retaining Ring

415129371

$12.01

610

Rear Axle

503190429

$59.99

710

Washer

503191910

$2.32

720

Conical Spring Washer 10 mm

234201474

$1.69

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.44

900

Tensioner

503192583

$8.29

910

Spacer

503193250

$16.49

920

Hex Screw M10 x 100

230100054

$6.45

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex. Cap Screw M6 X 30

207063054

$6.39

950

Hex. Flange Elastic Nut M6

233261466

$2.00

1000

Axle Strap

503192613

$36.99

1010

Spacer

503196943

$10.99

1020

Washer

503192496

$0.77

1030

Socket Head Screw M10 X 35

205503554

$7.51

1140

Axle Strap

503191260

$30.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51
