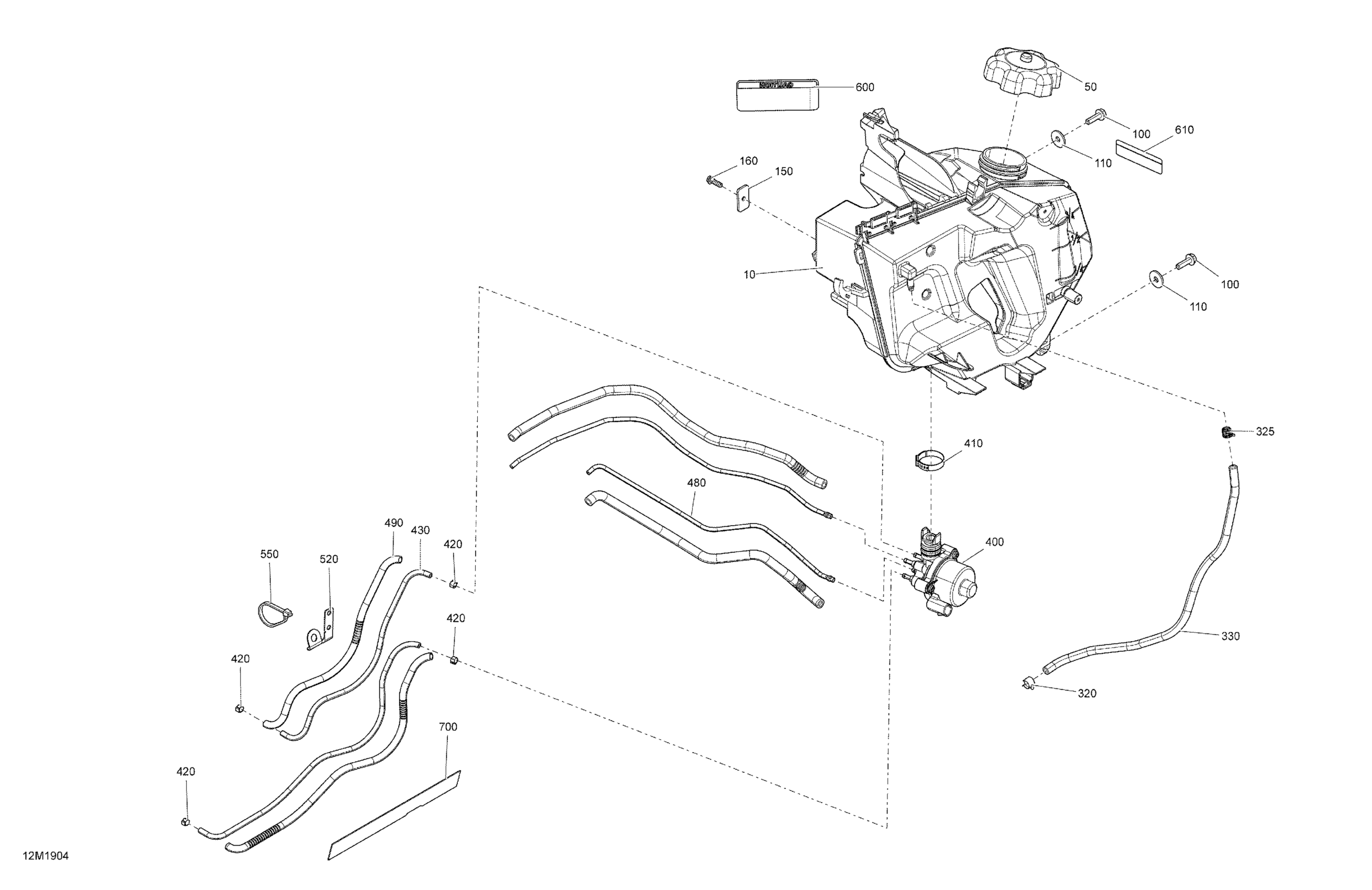

Ski-Doo 003 - Tundra 600HO E-TEC, 2019 02- Oil - 600HO E-TEC Diagram

Oil Tank

519000311

$124.99

Cap

519000273

$28.99

Hex. Flange Screw M6 X 16

250001062

$1.57

Flat Washer

224061201

$1.37

Bracket

519000179

$10.49

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Spring Clamp

414554800

$0.88

Spring Clamp

414420700

$0.72

Polyurethane Hose 10000Mm Long

219704410

$56.99

Pump_Hydraulic This part replaces 519000323.

519000376

$204.99

Crimp Clamp

293650099

$4.29

Crimp Clamp

293650249

$3.38

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Bracket

519000245

$15.99

Tie Wrap 142 mm

293750002

$1.25

Warning Decal / Oil Notice

516007443

Unavailable

Caution Decal Hot Parts

516005280

Unavailable

Protection Decal / Lexan

516004648

$11.49
