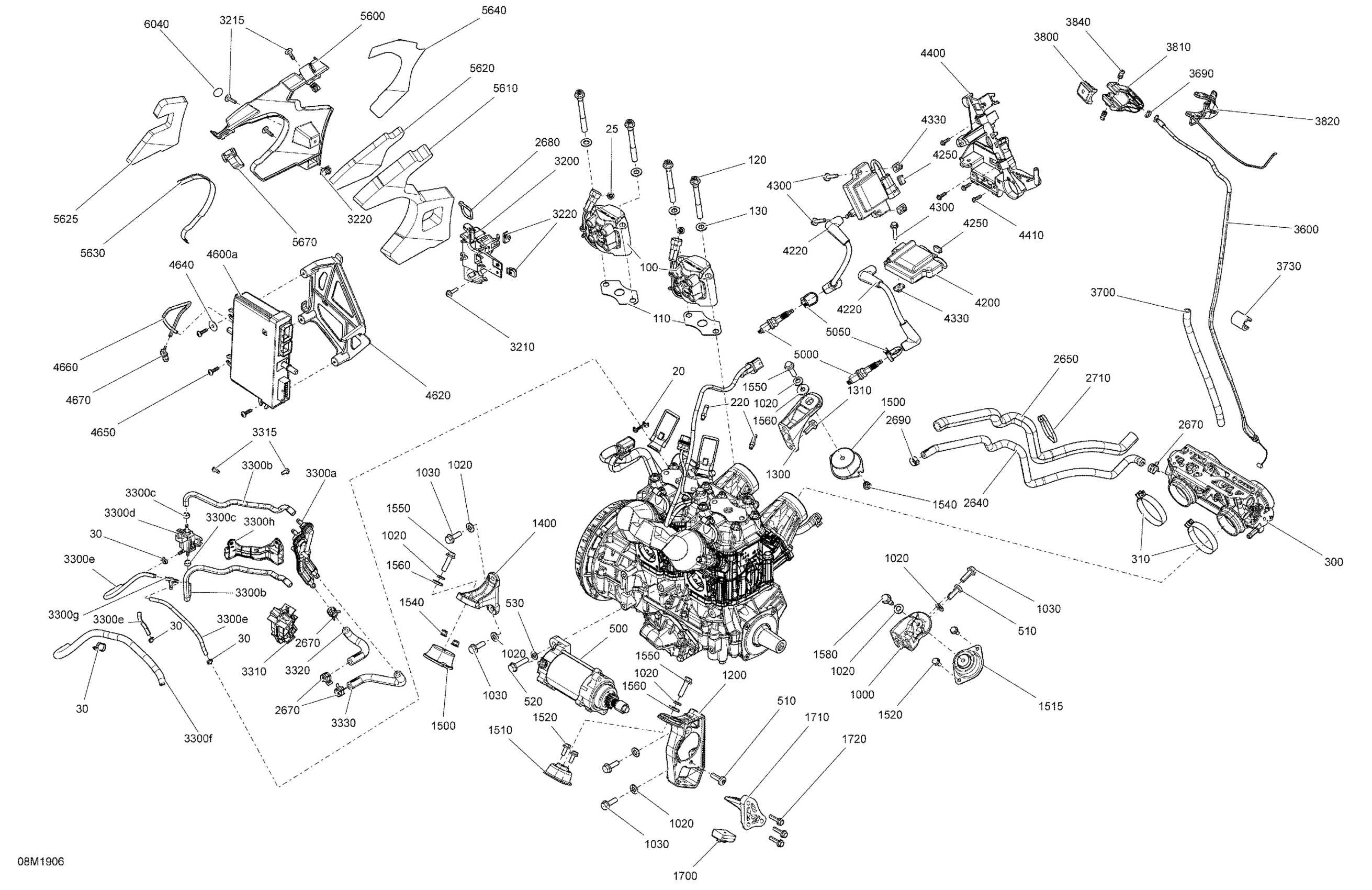

Ski-Doo Tundra 600HO E-TEC, 2019 Engine - 600HO E-TEC Diagram

Locker

515177770

$2.21

Push Nut

732610072

$2.19

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

Gasket

420430930

$4.99

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

Flat Washer 10 mm

234001410

$1.26

Hose Nipple

420924724

$14.83

Throttle Body

420889201

$1.00

Gemi Clamp

293650158

$8.57

Starter

515178473

$319.49

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

Flat Washer With Teflon 8 mm

250200008

$3.80

Rear Support, PTO

512060478

$31.99

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

Conical Spring Washer M8

250200146

$1.01

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Conical Spring Washer M8

250200146

$1.01

Rear Support, MAG

512060559

$31.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Conical Spring Washer M8

250200146

$1.01

Front Support, MAG

512060469

$31.99

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Conical Spring Washer M8

250200146

$1.01

Rubber Mount

512060729

$65.99

Rubber Mount

512060387

$46.99

Rubber Mount

512060448

$51.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

Yellow, Washer

503183200

$3.19

Conical Spring Washer M8

250200146

$1.01

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

Stopper

512060627

$10.33

Stopper Support

512060576

$29.49

Hex. Flange Screw M6 X 25

207562544

$1.69

Formed Hose, Output

512060740

$31.99

Tubing

513033412

$4.44

Norma Spring Clamp

293650214

$15.89

Tie-Rap 180 mm

414115200

$0.11

Oetiker Clamp

293650046

$2.89

Tie Wrap 368 mm

293750008

$1.04

Solenoid Support

512060298

$14.22

Hex.Flange Screw M5 X 20

207652044

$1.90

Torx Screw M5 X 20

250000528

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Manifold

512060692

$45.99

Polyurethane Hose 10000Mm Long

219704410

$56.99

Crimp Clamp

293650234

$5.39

Solenoid Valve

270600005

$116.49

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

Was 409901700 Tubing (9 mm)

219704399

$84.99

T-Fitting

293710068

$8.29

Hose Support

512060827

$2.11

Spring | Not Shown

512060934

$83.49

Manifold Support

512060769

$11.60

Screw-Forming HEX.HD.FL.BZN

250000937

$2.11

LH Formed Hose

512060695

$8.29

RH Formed Hose

512060694

$8.29

Throttle Cable

512060851

$76.49

Circlip

414274500

$0.90

Was 409901700 Tubing (9 mm)

219704399

$84.99

Protector

512060313

$10.33

Upper Housing

512060859

$8.89

Lower Housing

512060860

$17.53

Handle Ass'y

512061250

$124.99

Flange Screw

732601143

$4.12

Ignition Coil

512060953

$132.49

Ignition Cable, 177mm long

512061126

$28.49

Clip

710000992

$4.29

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

Nut Welded, M6

293100003

$9.12

Ignition Coils Support

512060888

$11.60

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Calibrated Module

512060780

$749.99

Calibrated Module Support

512060858

$14.22

Flat Washer

250200040

$1.90

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

Male Connector

414814100

$2.22

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$30.49

Clamp

512060993

$5.39

Noise Shield

512060634

$18.49

Interior Noise Foam

512060343

$20.99

Upper Exterior Noise Foam

512060344

$10.33

Lower Exterior Noise Foam

512060665

$6.95

Heat Shield

512060574

$7.79

Heat Shield

512060666

$6.69

Torx Screw M5 X 20

250000528

$2.11

Panel Nut M5 X 0.8

250000958

$4.23

Velcro Strip

508000599

$13.99

Adhesive Patch

518325560

$4.69
