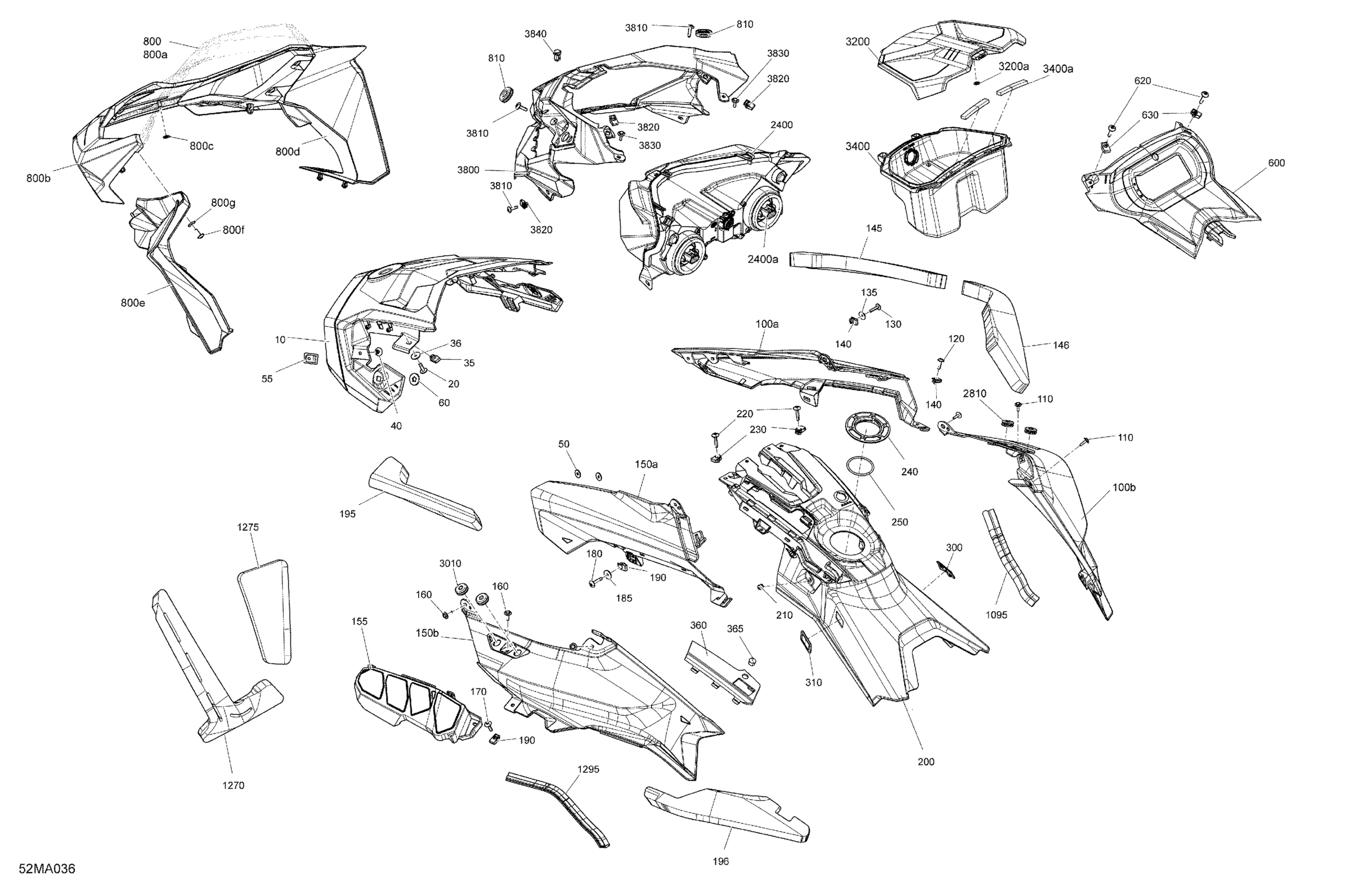

Ski-Doo TUNDRA 600 ACE - SPORT - 2021 Body - Hood Diagram

#

Description
Price

10

Deep Black, Center Hood

517306288

$192.51

20

Torx Screw M5 X 20

250000528

$2.00

35

Panel Nut M5 X 0.8

250000958

$4.00

36

Washer

250200166

$2.00

40

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

50

Washer

517124300

$0.18

55

Rivet Plate

517305109

$4.52

60

Push Nut

508000853

$1.87

100a

Neo Yellow, RH Front Hood

517307524

$191.76

100b

Neo Yellow, RH Rear Hood

517307525

$191.76

110

Screw M4 X 16

250000725

$3.30

120

Torx Screw M5 X 20

250000528

$2.00

130

Torx Screw M5 X 26

250000587

$4.15

135

Washer

250200166

$2.00

140

Panel Nut M5 X 0.8

250000958

$4.00

145

RH Front Hood Foam

517305763

$11.19

146

RH Hood Foam

517306001

$11.19

150a

Hood Fl B-450

517307527

$191.76

150b

Neo Yellow, LH Rear Hood

517307528

$191.76

155

LH Hood Trim

517306690

$28.33

160

Screw M4 X 16

250000725

$3.30

170

Torx Screw M5 X 20

250000528

$2.00

180

Torx Screw M5 X 26

250000587

$4.15

185

Washer

250200166

$2.00

190

Panel Nut M5 X 0.8

250000958

$4.00

195

LH Front Hood Foam

517305764

$11.19

196

LH Hood Foam

517306002

$11.19

200

Rear Console

517307684

$156.69

210

Flange Elastic Nut M5

233251434

$1.91

220

Torx Screw M5 X 26

250000587

$4.15

230

Panel Nut M5 X 0.8

250000958

$4.00

240

Console Nut

517306602

$10.88

250

O-Ring

706002839

$0.96

300

RH Cap

517306587

$1.27

310

LH Cap

517306588

$1.27

360

LH Front Console

517306582

$29.07

365

Cap

572051500

$5.22

600

Gauge Support

517307675

$34.30

620

Torx Screw M5 X 26

250000587

$4.15

630

Panel Nut M5 X 0.8

250000958

$4.00

800

Medium Windshield Kit | Includes 800 to 800h

860201258

$197.73

800a

Windshield

517306062

$158.93

800b

Deep Black, Windshield Support

517306183

$42.99

800c

Push Nut

732610072

$1.97

800d

Deflector RH, Black 63% Light Transm.

517306063

$32.81

800e

Deflector LH, Black 63% Light Transm.

517306064

$32.81

800f

Screw M4 X 16

250000889

$2.82

800g

Rubber Washer 4 MM

517306524

$2.18

810

Grommet

517303756

$3.61

1095

Neoprene Seal 3000Mm Long

219704371

$50.34

1270

LH Rear Panel Foam

517306865

$13.22

1275

LH Rear Panel Foam

517306496

$5.33

1295

Neoprene Seal 3000Mm Long

219704371

$50.34

2400

Headlamp | Includes 2400 to 2400a

517305752

$412.66

2400a

Bulb

415130081

$38.78

2810

Grommet

517307161

$2.55

3010

Grommet

517307161

$2.55

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$17.88

3200a

Push Nut

732610072

$1.97

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$17.88

3400a

Seal Joint

517305157

$2.21

3800

Headlamp Fairing

517306301

$71.61

3810

Torx Screw M5 X 20

250000528

$2.00

3820

Panel Nut M5 X 0.8

250000958

$4.00

3830

Screw M4 X 16

250000725

$3.30

3840

Tuflok Plastic Rivet

293150230

$1.39
