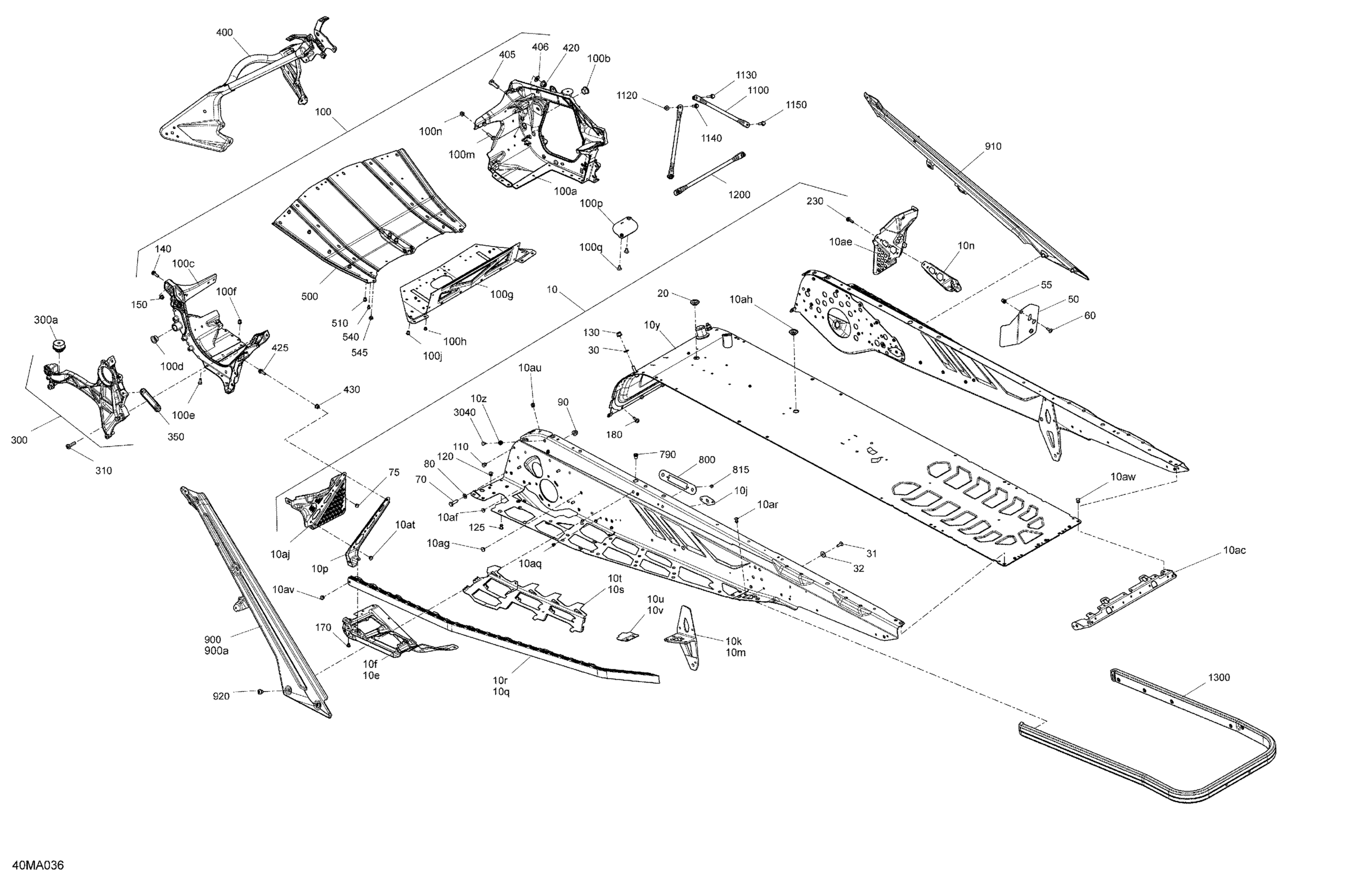

Ski-Doo 003 - TUNDRA 600 ACE - SPORT - North America, 2021 06- Frame - System - Sport Diagram

Chassis Tunnel Module 146" | Includes 10 to 10aw

415130421

$4.00

RH Footrest Reinforcement

518330520

$88.99

Deep Black, LH Footrest Reinforcement

518332802

$18.49

Reinforcement Plate

518326647

$4.69

LH Suspension Bracket

518328467

$45.99

RH Rear Suspension Support

518334391

$94.99

Stirrup Reinforcement

518331253

$21.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

RH Central Tunnel Reinforcement

518331564

$35.99

LH Central Tunnel Reinforcement

518331565

$35.99

LH Reinforcement Plate

518329088

$3.39

RH Reinforcement Plate

518329089

$4.59

Radiator Tunnel 146

518334489

$739.99

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap

518328990

$22.49

RH Footrest

518330691

$24.99

Full Moon Dart 8 mm

293730041

$2.21

Full Moon Dart 10 mm

293730059

$4.55

Black, Plug

293730052

$9.19

LH Foot Protector

518331559

$23.99

Rivet Avibulb 3/16

293150203

$2.09

Rivet

293150183

$2.11

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Flat Washer 8 mm

234081410

$0.83

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Hex Screw M8 X 30

250000942

$1.15

Hemlock Rivet, 6.5 mm

293150096

$3.27

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100m

518332691

$569.99

RH Side Member Ass'y | Includes 100a to 100a3

518334523

$204.99

Leg Bushing

505072690

$12.49

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Bushing

505072690

$12.49

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518332715

$36.99

Rivet Avibulb 3/16

293150203

$2.09

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 25

250000945

$4.44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Oil Plate

518329454

$18.49

Torx Truss Screw M6 X 12

250000767

$2.00

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hemlock Rivet, 6.4 mm

293150174

$7.86

Hemlock Rivet 6.5 mm

293150120

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 16

207661646

$1.36

Hex. Flange Screw M6 X 20

207662046

$2.11

LH Side Member Ass'y | Includes 300 to 300b

518333691

$199.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

LH Front Chassis Reinforcement | Includes 350 to 350a

518331740

$11.49

Chassis Suspension Module

518335308

$379.99

Screw Hex M10 X 30

250001148

$1.69

Flat Washer 10 mm

234001410

$1.26

Hex. Flange Elastic Nut M10

250100165

$0.85

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Front Bottom Plate

518331615

$31.99

Insert M5 X 0.8

293450268

$2.09

Avex Rivet

390909100

$0.30

Rivet 6,4 mm

293150173

$4.29

Insert

293450278

$4.49

Member Fixation Plate

518329480

$12.99

Rivet Avibulb 3/16

293150203

$2.09

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

RH Rear Diagonal Cross Member

518330885

Unavailable

Black, RH Member Ass'y | Black

518330880

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Upper Colomn Support

518329370

$22.49

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Center Column Support

518329755

$3.69

Black, Hitch Bumper Black 146

518329797

$127.49

Dart

293730079

$2.09
