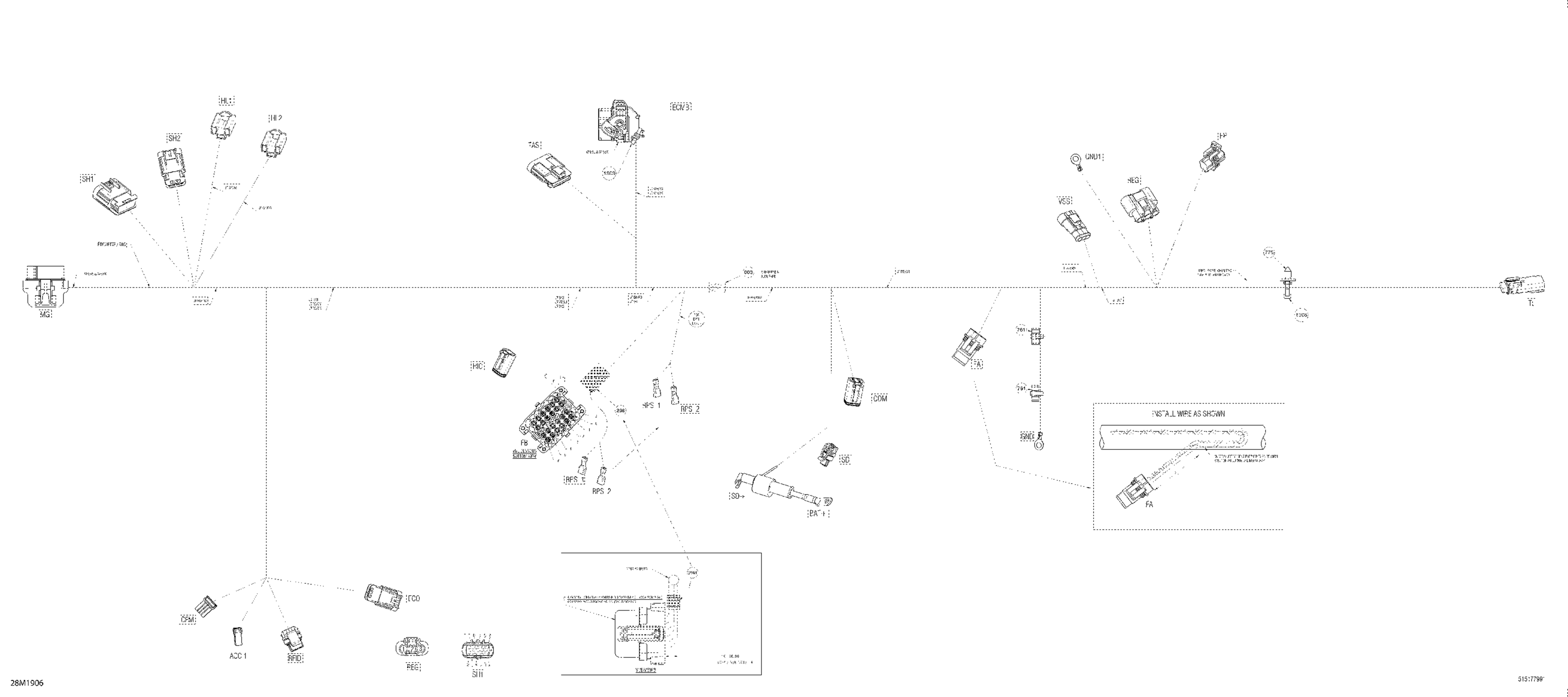

Ski-Doo TUNDRA 600 ACE - 2020 Main Harness - 515177991 Diagram

#

Description
Price

3000

Main Harness | Includes 3000 to 3000c

515177991

$449.99

ACC1

Female Housing, 2 Circuits

515175658

$16.18

ACC1

Female Terminal

515175231

$4.39

CFM

Female Terminal Housing, 4 Circuits

515175845

$8.49

CFM

Female Terminal

515175231

$4.39

COM

Housing, 6 Circuits

278002896

$14.99

COM

Male Wedge, 6 Circuits

515175678

$5.39

COM

Female Terminal

278001665

$4.55

COM

Female Terminal

278000632

$2.09

ECMB

Cover, 48 positions

710001591

$12.18

ECMB

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB

Plug

710001592

$2.21

ECMB

Plug

710001593

$2.21

ECMB

Female Terminal

710001589

$2.21

ECMB

Female Terminal

710001727

$3.19

ECO

Housing

710002593

$12.06

ECO

Seal

710001233

$3.19

ECO

Terminal

710001224

$3.19

F1

Little Fuse, 10 Amperes

710000744

$8.79

F2

Little Fuse, 20 Amperes

710000746

$8.49

F4

Little Fuse, 15 Ampere

710000745

$8.49

F5

Little Fuse, 20 Amperes

710000746

$8.49

F6

Little Fuse, 10 Amperes

710000744

$8.79

FA

Fuse

710001613

$8.79

FA

Fuse Holder

278001325

$8.79

FA

Female Terminal

710000357

$7.69

FB

Case Ass'y with seal, 24 positions

278002824

$35.99

FB

Seal Plug

278002880

$7.86

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

278002578

$1.04

FB

Female Terminal

515177177

$6.49

FB

Female Terminal

710000918

$7.69

FB_C

Fuse Box Cover

515177671

$13.62

FB_C

Little Fuse, 10 Amperes

710000744

$8.79

FB_C

Little Fuse, 15 Ampere

710000745

$8.49

FB_C

Little Fuse, 20 Amperes

710000746

$8.49

FP

Housing

710001132

$9.85

FP

Lock

710001133

$4.39

FP

Seal

278001482

$3.19

FP

Female Terminal

278001481

$3.49

GND

Open Barrel Terminal

278001392

$4.79

GND1

Open Barrel Terminal

278001392

$4.79

HIC

Male Connector, 4 Circuits | CE

278000739

$19.49

HIC

Male Lock, 4 Circuits | CE

278000738

$3.09

HIC

Sealing Cap

293000052

$3.19

HIC

Female Terminal

278000632

$2.09

HL1

Female Housing

515177663

$4.55

HL1

Terminal

515176909

$2.21

HL2

Female Housing

515177663

$4.55

HL2

Terminal

515176909

$2.21

MG

Female Housing, 24 Circuits

515175801

$9.59

MG

Retainer Block

515175802

$11.49

MG

Plug

515175812

$2.19

MG

Female Housing

710000399

$16.49

MG

Wire Seal

515175803

$2.99

MG

Female Terminal

515175806

$0.99

MG

Female Terminal

710001131

$8.89

REG

Female Housing, 3 Circuits

710000879

$25.99

REG

Cap

710000882

$11.49

REG

Seal

710000881

$17.99

REG

Female Terminal

710000877

$9.12

RFID

Housing

710001161

$11.12

RFID

Wire Seal

710001163

$7.69

RFID

Female Terminal

710001164

$8.89

RPS1

Female Terminal

710000082

$7.69

RPS2

Female Terminal

710000082

$7.69

RY1

Relay

715900824

$21.99

RY2

Relay

715900824

$21.99

RY3

Relay

715900824

$21.99

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SD+

Protector Cap | XT

515175919

$17.99

SH1

Housing, Packard

710001929

$11.12

SH1

Cap

710001225

$9.19

SH1

Seal

710001233

$3.19

SH1

Seal Wire

710001332

$3.28

SH1

Terminal

710001224

$3.19

SH1

Terminal

710001223

$3.19

SH2

Housing

710001927

$8.79

SH2

Seal

710001233

$3.19

SH2

Terminal

710001224

$3.19

TAS

Clip

710000992

$4.29

TAS

Housing

710001231

$13.99

TAS

Seal

710001233

$3.19

TAS

Terminal

710001224

$3.19

TL

Housing

515178023

$14.74

TL

Male Terminal

515178013

$3.19

VSS

Clip

710000992

$4.29

VSS

Housing

710000568

$11.12

VSS

Wire Seal

515176621

$7.49

VSS

Male Terminal

515176164

$7.16
