Description

Price

10

FRAME TUNDRA 137 ACE - Call your local BRP dealership | SPORT

415130262

$3.00

10e

LH Stirup

518326820

$37.99

10f

Clinch Stud M6 X 30

250300031

$2.09

10g

Panel Nut M5 X 0.8

250000958

$4.23

10h

Full Moon Dart 8 mm

293730041

$2.21

10j

Full Moon Dart 10 mm

293730059

$4.55

10k

Black, Plug

293730052

$9.19

10p

Support

518326960

$12.99

10q

Tork Screw M6 X 18

250000536

$2.11

10r

Flat Washer

250200039

$0.74

10s

Attach | Includes 10n to 10p

518326986

$12.99

10t

Clinch Stud M6 X 20

250300027

$2.09

10u

Elastic Stop Nut M6

232561414

$0.55

10v

Torx Screw M8 X 55

250000535

$3.17

10y

RH Reinforcement

518324874

$27.99

10z

LH Reinforcement

518324875

$27.99

10aa

RH Rear Base

518325973

$21.99

10ab

LH Rear Base | Includes 10v to 10x

518325974

$21.99

10ac

Clinch Stud M6 X 30

250300031

$2.09

10ad

Clinch Stud M6 X 20

250300027

$2.09

10ae

Insert

293450275

$12.99

10af

Seal

518326656

$9.19

10ag

Rear Cap

518327105

$22.49

10ah

RH Support | LT

518326482

$9.19

10aj

Rivet Avibulb 3/16

293150203

$2.09

10ak

Avex Rivet

390909100

$0.30

10am

Stavex Rivet

293150144

$0.82

10an

Henrob Rivet

293150146

$2.09

10ap

Hemlock Rivet, 6.4 mm

293150174

$7.86

10aq

U-Attach

518326961

$10.99

10ar

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10as

Tork Screw M6 X 16

250000534

$2.11

10at

Hex. Flange Nut M6

233061414

$1.68

10bm

RH Bracket | Sport

518328787

$79.99

10bn

LH Bracket | Sport

518328788

$79.99

10bp

RH ROLLER - Call your local BRP dealership

518325377

$69.99

10bq

LH Roller

518325378

$76.99

10br

Rear Radiator Ass'y, 137" | SPORT

518326641

$720.49

10bs

Stavex Rivet

293150144

$0.82

30

Pop Rivet 3/16"

390402400

$0.35

40

Retaining Plate | Includes 40 to 40a

518326550

$18.49

40a

Clinch Stud M6 X 20

250300027

$2.09

100

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

110

Collar Huck Magna-Grip 6.4

293150149

$0.48

120

RH Deflector, Black Polypropylene

518325782

$13.99

130

LH Deflector, Black Polypropylene

518325783

$13.99

140

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

160

Adhesive Patch

518325560

$4.69

170

Hemlock Rivet, 6.4 mm

293150174

$7.86

1300a

Clear Rear Bumper | Sport

518325577

$111.49

1300b

Full Moon RH Cap

520000711

$8.79

1300c

Full Moon LH Cap

520000712

$9.19

1800

Battery Support

518326472

$43.99

2005

Heat Shield

514054755

$9.19

2010

Hex. Flange Screw M6 X 20

210262040

$2.11

2020

Flat Washer

250200039

$0.74

2030

Elastic Stop Nut M6

232561414

$0.55

2050

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

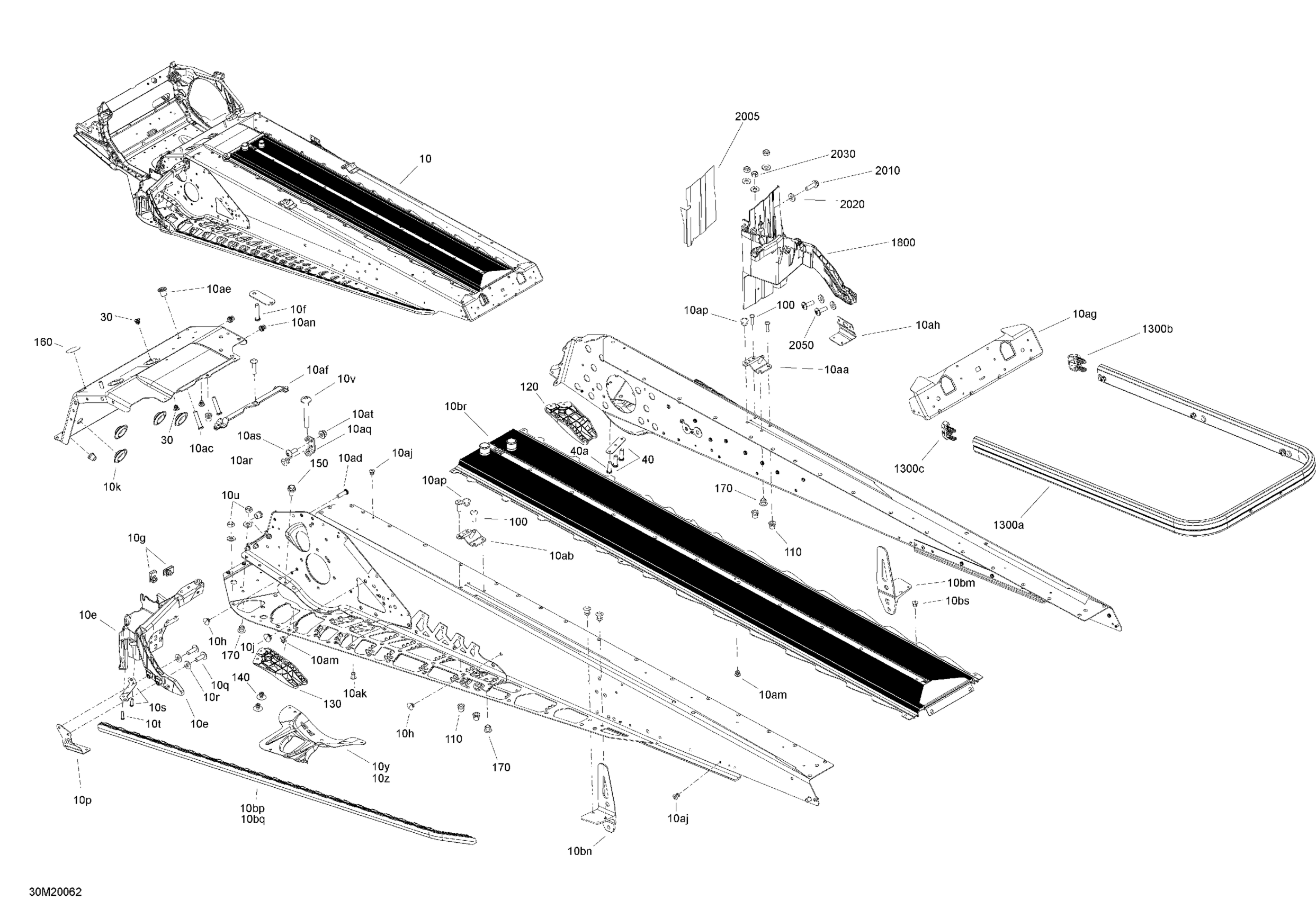

Ski-Doo 003 - TUNDRA 600 ACE - North America, 2020 09- Frame - Rear Section - Package-Sport Diagram

FRAME TUNDRA 137 ACE - Call your local BRP dealership | SPORT

LH Stirup

Clinch Stud M6 X 30

Panel Nut M5 X 0.8

Full Moon Dart 8 mm

Full Moon Dart 10 mm

Black, Plug

Support

Tork Screw M6 X 18

Flat Washer

Attach | Includes 10n to 10p

Clinch Stud M6 X 20

Elastic Stop Nut M6

Torx Screw M8 X 55

RH Reinforcement

LH Reinforcement

RH Rear Base

LH Rear Base | Includes 10v to 10x

Clinch Stud M6 X 30

Clinch Stud M6 X 20

Insert

Seal

Rear Cap

RH Support | LT

Rivet Avibulb 3/16

Avex Rivet

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.4 mm

U-Attach

Ornit Rivet 6,5 X 14.5

Tork Screw M6 X 16

Hex. Flange Nut M6

RH Bracket | Sport

LH Bracket | Sport

RH ROLLER - Call your local BRP dealership

LH Roller

Rear Radiator Ass'y, 137" | SPORT

Stavex Rivet

Pop Rivet 3/16"

Retaining Plate | Includes 40 to 40a

Clinch Stud M6 X 20

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

Hex. Flange Screw M6 X 12, Scotch Grip

Adhesive Patch

Hemlock Rivet, 6.4 mm

Clear Rear Bumper | Sport

Full Moon RH Cap

Full Moon LH Cap

Battery Support

Heat Shield

Hex. Flange Screw M6 X 20

Flat Washer

Elastic Stop Nut M6

Torx Screw M6 X 1.0 X 18, Scotch Grip
