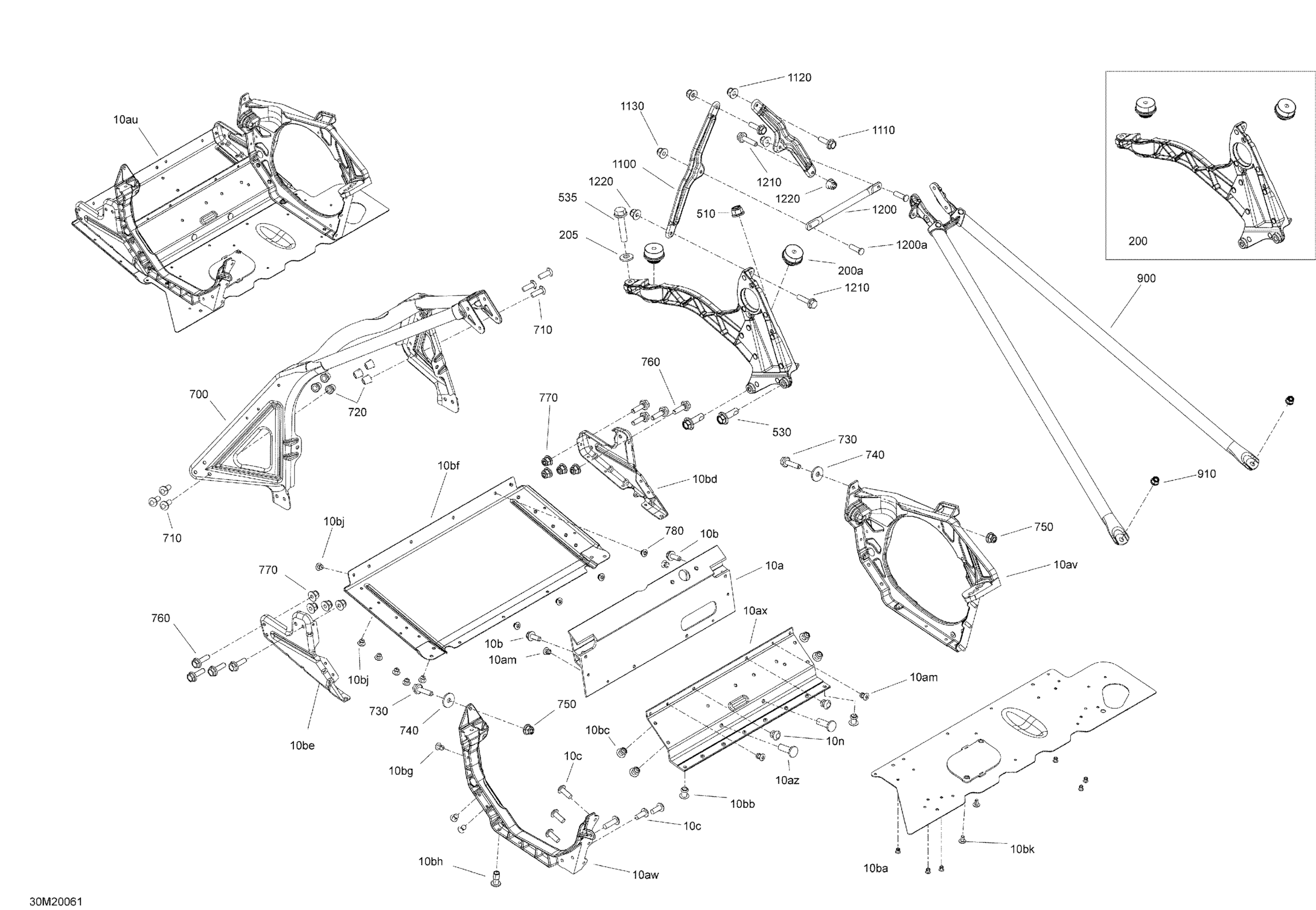

Ski-Doo TUNDRA 600 ACE - 2020 Frame - Front Section - Package LT Diagram

Engine Support

518326140

$116.12

Hex. Flange Screw M6 X 16

210261650

$1.22

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Hemlock Rivet, 6.5 mm

293150119

$4.00

Stavex Rivet

293150144

$0.77

E-Module | LT

518327006

$708.43

RH Side Member

518326328

$259.97

LH Side Member

518326330

$259.97

Front Member

518326198

$59.97

Clinch Stud

250300038

$4.00

Stavex Rivet

293150144

$0.77

Hemlock Rivet 6.5 mm

293150120

$7.23

Hemlock Rivet, 6.5 mm

293150119

$4.00

RH Front Member

518325949

$18.43

LH Front Member

518325950

$17.66

Front Bottom Plate

518325951

$29.97

Avex Rivet

390909100

$0.29

Monobolt Rivet 6.4

293150182

$2.91

Avex Rivet

390909200

$0.29

Torx Truss Screw M6 X 12

250000767

$1.66

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97

Vibration Damper

512061516

$57.66

Conical Spring Washer M8

234281474

$1.25

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

Hex. Flange Screw, Scotch Grip

207584034

$2.06

Front Member, S Module

518326557

$336.89

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Hex. Flange Screw M6 X 25

207662544

$0.53

Flat Washer

224061201

$1.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Pop Rivet 3/16"

390402200

$0.26

Rear Member

518326559

$244.58

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Column Support

518326848

$13.06

Hex. Flange Screw M6 X 20

207662044

$1.66

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Center Column Support

518326355

$20.74

Clinch Stud M6 X 20

250300027

$1.92

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
