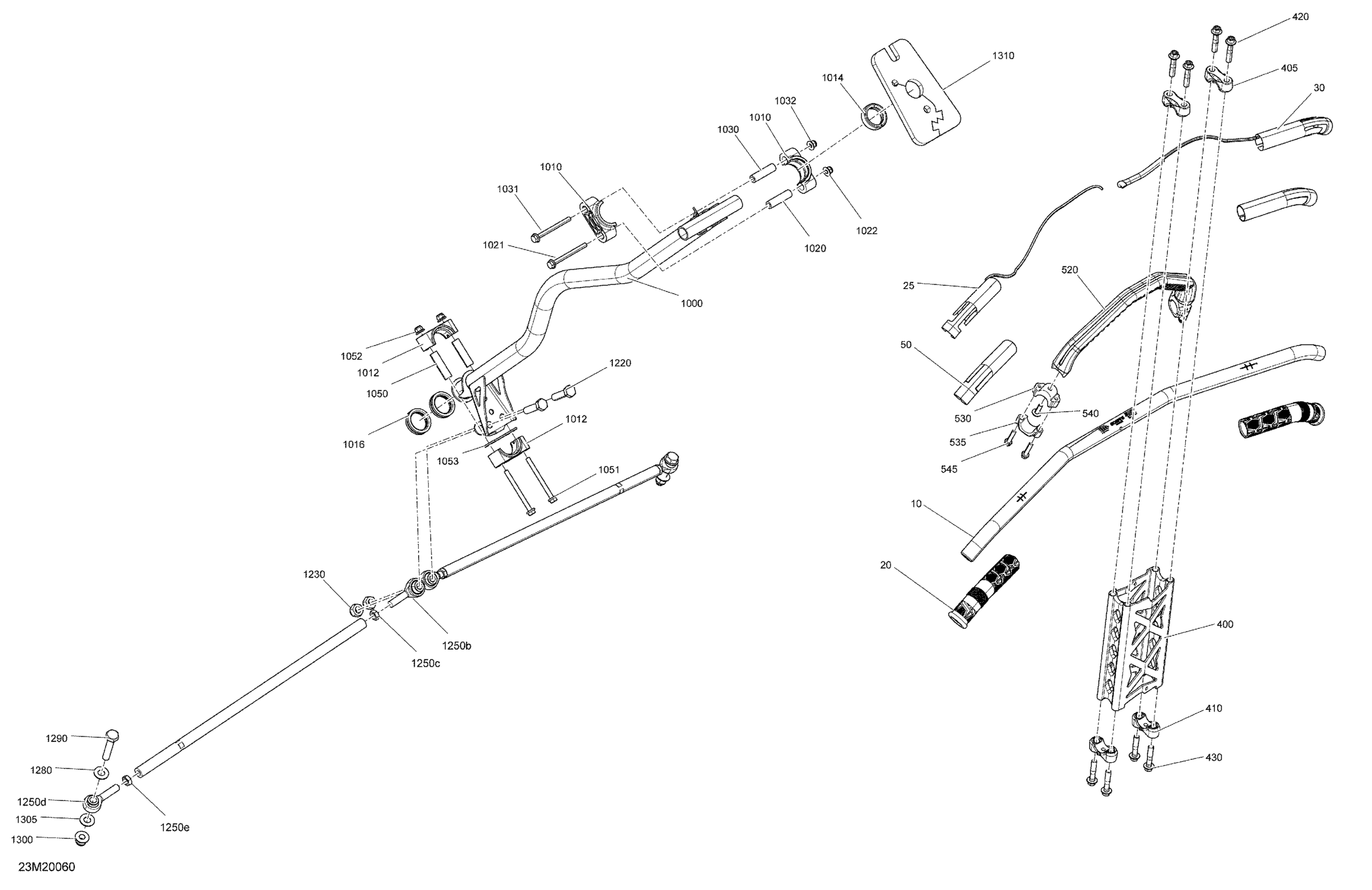

Ski-Doo TUNDRA 600 ACE - 2020 Steering - System Diagram

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

Grip 148mm

506152560

$15.64

Heating Element 32 Watt 2 Wires

506152758

$42.51

RH Heating Element 32 Watt

506152799

$34.30

Thermal Insulation

506153176

$5.54

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.54

Steering Support

506152894

$12.10

Steering Support

506152894

$12.10

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.00

Deep Black, Steering Pad

506152541

$41.01

Moulding Strap

506152460

$69.37

Black Support Plate

506152703

$13.54

Clamps | Includes 75a to 75b

719000049

$22.36

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

Hex. Flange Screw M6 X 25

250000447

$2.00

Steering Column

506152964

$183.55

Upper Half-Housing

506152508

$7.18

Lower Half-Housing

506152217

$5.40

Upper Anti-Vibration Gasket

506152509

$4.39

Lower Vibration Ring

506152518

$4.39

Housing Bushing

506152297

$9.93

Hex. Flange Screw M6 X 70

250001027

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Housing Bushing

506152297

$9.93

Hex. Flange Screw M6 X 70

250001027

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.00

Lower Housing Bushing

506152388

$14.81

Hex. Flange Screw M8 x 65

207686534

$2.00

Hex. Flange Elastic Nut M8

233281414

$1.31

Stopper Plate

506152389

$9.93

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

Elastic Locking Nut M10

233601466

$2.00

Tie Rod Ass'y

506153105

$60.42

LH Thread Ball Joint

506152081

$38.78

LH Threaded Hex. Jam Nut M10

250100016

$0.70

RH Threaded Ball Joint

506152019

$38.78

RH Threaded Hex. Jam Nut M10

732610010

$0.70

Washer

506152582

$4.28

Hex. Screw M10 X 45

207004544

$1.60

Elastic Locking Nut M10

233601466

$2.00

Washer

506152582

$4.28

Bushing

506152521

$13.19
