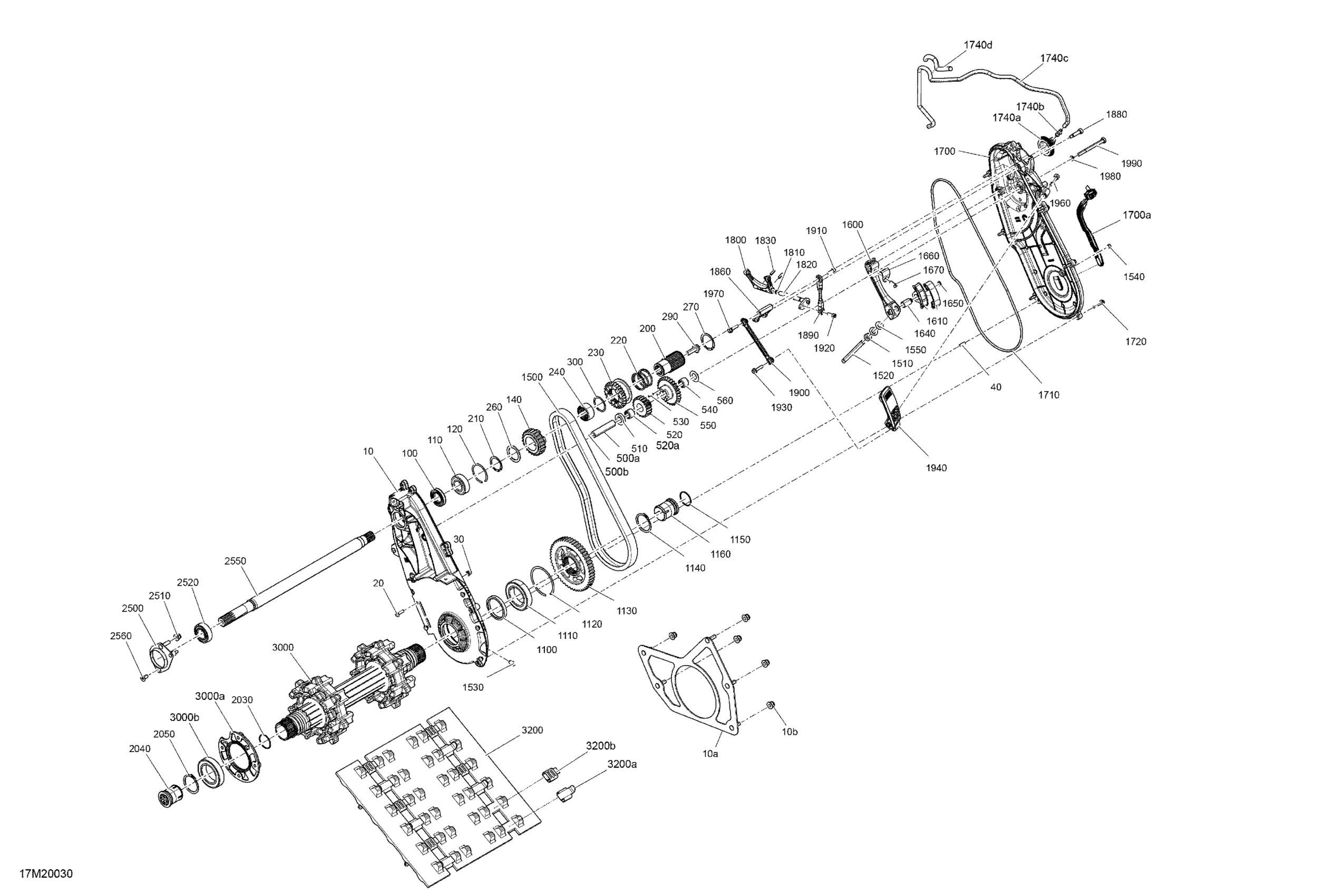

Ski-Doo TUNDRA 600 ACE - 2020 Drive - System Diagram

#

Description
Price

10

Chaincase

504153184

$321.51

10a

Plate | Not Shown

518325816

$73.82

10b

Flange Elastic Nut M6

233261434

$3.61

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

30

Collar Huck Magna-Grip 6.4

293150149

$0.37

40

Dowel Pin

250400048

$2.06

100

Oil Seal

293200168

$13.65

110

Ball Bearing

293350115

$11.15

120

Circlip

504152576

$8.71

140

Sprocket, 21 Teeth

504152927

$123.05

200

Coupling

504152979

$69.97

210

Circlip

293370054

$7.31

220

Spring Release

504153179

$9.83

230

Slinding Gear, 27 Teeth

504152960

$101.51

240

Needle Bearing

293350063

$23.05

260

Washer

504152689

$6.26

270

Circlip

293370055

$7.31

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

300

Washer

504152862

$9.31

500a

Reverse Shaft

504083100

$46.12

500b

Rolled Pin M3 X 10

250400010

$1.85

510

Ring

504078700

$17.66

520

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$103.82

520a

Needle Bearing

293350064

$22.28

530

Alignement Rod

570048600

$13.77

540

Needle Bearing

293350064

$22.28

550

Sprocket, 29 Teeth

504152724

$175.35

560

Spacer

504077300

$6.26

1100

Oil Seal

293200159

$13.12

1110

Ball Bearing

293350059

$30.74

1120

Circlip

504152582

$8.71

1130

Kit Sprocket This part replaces 504152971.

861805540

$149.97

1140

Circlip

504152572

$6.26

1150

O-Ring

293300122

$2.06

1160

Magnetic Cap

504152619

$23.05

1500

Drive Chain, 106 Links

504152630

$173.82

1510

Hex. Nut M10 X 1.5

232006414

$1.11

1520

Adjustment Screw

504152602

$9.62

1530

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

1540

Hex. Countersunk Drain Plug

250500013

$6.78

1550

Bonded Washer

250200100

$1.74

1600

Chaine Tensionner

504153431

$13.77

1610

Slider Chain

504152739

$67.66

1640

Tensioner Axle

504152841

$14.65

1650

Circlip

504152282

$3.11

1660

Chain Slider

504153122

$15.35

1670

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

1700

Chaincase Cover Ass'y | Includes 1700 to 1700b

504153144

$339.20

1700a

Rotation Sensor

504152896

$35.35

1710

Tight Seal

293300130

$7.31

1720

Hex. Flange Screw M6 X 30

250001013

$2.06

1740a

Cap

504152930

$6.26

1740b

Straight Fitting

293710035

$8.63

1740c

Polyurethane Hose 10000Mm Long

219704410

$46.12

1740d

Protector Tube

504153074

$12.58

1800

Fork Ass'y

504153432

$35.35

1810

O-Ring

414484400

$7.31

1820

Welded Axle Fork

504152956

$28.43

1830

Spring Pin M5 X 16

250400045

$3.73

1860

Lever

504153427

$28.43

1880

Socket Head Screw M8 X 25, Scotch Grip

250000340

$6.18

1890

Ball Joint

504152951

$44.58

1900

Double Ball Joint

504152710

$51.51

1910

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

1920

Socket Head Screw M6 X 20, Scotch Grip

205562044

$1.74

1930

Hex. Flange Screw M6 X 25

207562544

$1.39

1940

Grip

504153082

$33.05

1960

Socket Head Screw M8 X 25, Scotch Grip

250000340

$6.18

1970

Hex. Flange Screw M6 X 25

207562544

$1.39

1980

Washer

504082900

$2.58

1990

Hex. Screw M8 X 90

207089044

$2.82

2030

O-Ring

293300122

$2.06

2040

Magnetic Cap

504152619

$23.05

2050

Circlip

504152572

$6.26

2500

Bearing Housing

504153187

$28.43

2510

Hex. Flange Elastic Nut M8

233281414

$1.14

2520

Ball Bearing

293350074

Unavailable

2550

Countershaft

504153000

$572.28

2560

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

3000

Drive Axle Ass'y

504154054

$516.89

3000a

Retaining Ring

504153886

$18.43

3000b

Ball Bearing

293350059

$30.74

3200

Track Ass'y, 16X137X1.2C | LT

504152907

$989.99

3200a

Track Guide | Track Width 16''

415129528

$3.12

3200b

Cleat

504152651

$8.22

3200

Track 16 X 154 X 1,5 | Includes 3200 to 3200b

504154391

$1,219.99

3200a

Track Guide | Track Width 16''

415129528

$3.12

3200b

Cleat

504152651

$8.22
