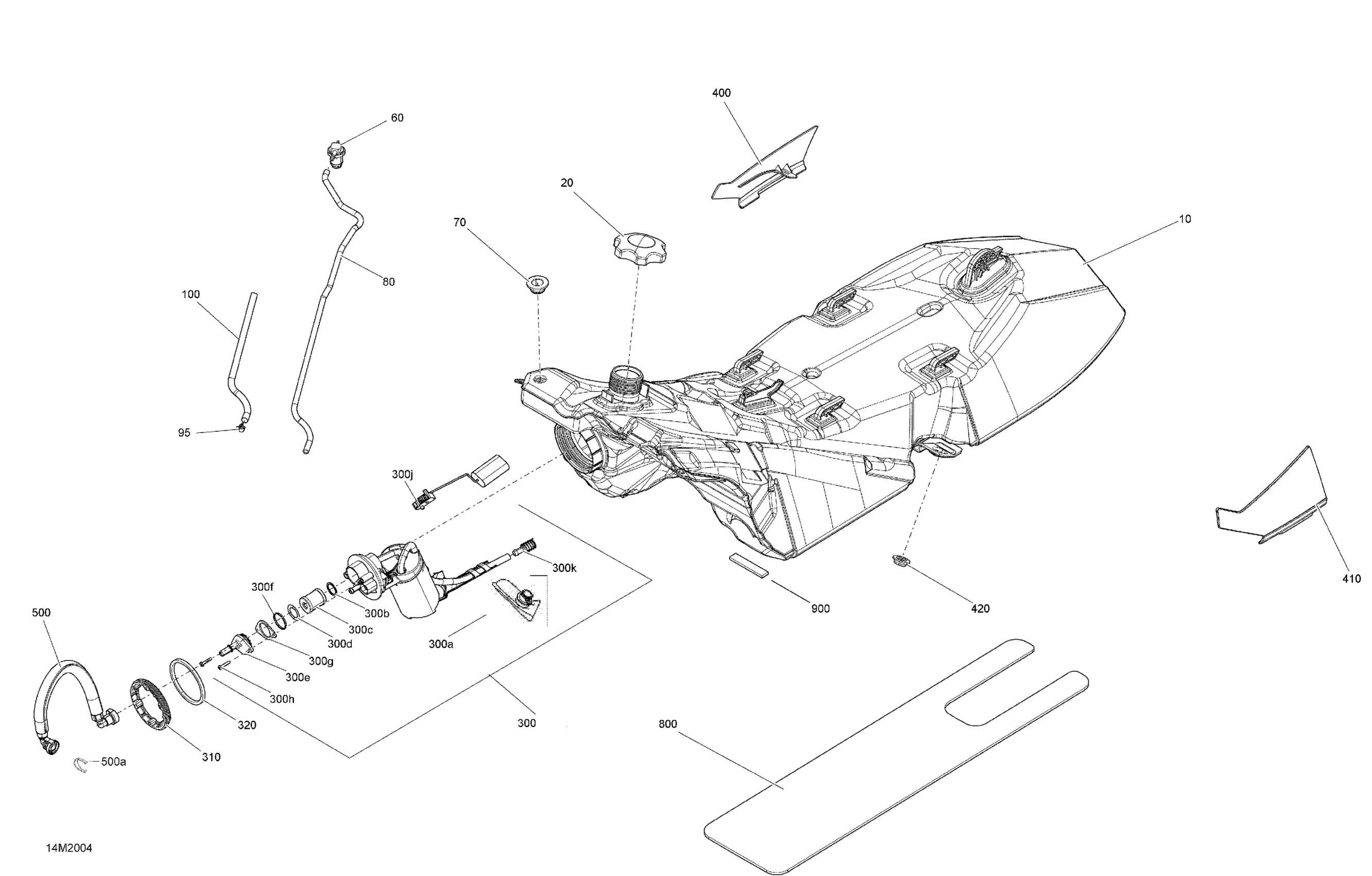

Ski-Doo TUNDRA 600 ACE - 2020 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513033667

$313.82

20

Fuel Tank Cap

513033969

$25.35

60

Check Valve

513033842

$33.82

70

Grommet

513033596

$18.43

80

Polyurethane Hose 10000Mm Long

219704410

$46.12

95

Clip

414227300

$1.45

100

Protector Tube | Not shown

503195447

$12.58

300

PUMP FUEL | Includes 300 to 300k This part replaces 513033838.

513034260

$257.66

300a

Fuel Filter

415129451

$23.05

300b

O-Ring

415129511

$16.89

330c

Fuel Filter

415129510

$23.05

300d

Wave Washer

415129512

$18.43

300e

Cover

415129685

$29.97

300f

O-Ring

415129509

$18.43

300g

Fuel Pump Ring

415129569

Unavailable

300h

Screw

415129513

$9.00

300j

Fuel Level Sensor

415130108

$140.74

300k

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

310

Ring

513033180

$17.66

320

Gasket

513033334

$23.05

400

RH Cap

513033418

$12.62

410

LH Cap

513033419

$12.62

420

Shoulder Bushing

513033326

$12.62

500

Hose Ass'y | Includes 500 to 500a

513033582

$73.05

500a

Locking Clip

513033135

$5.11

800

Insulating Foam

513033588

$12.62

900

Gasket

513033813

$3.29
