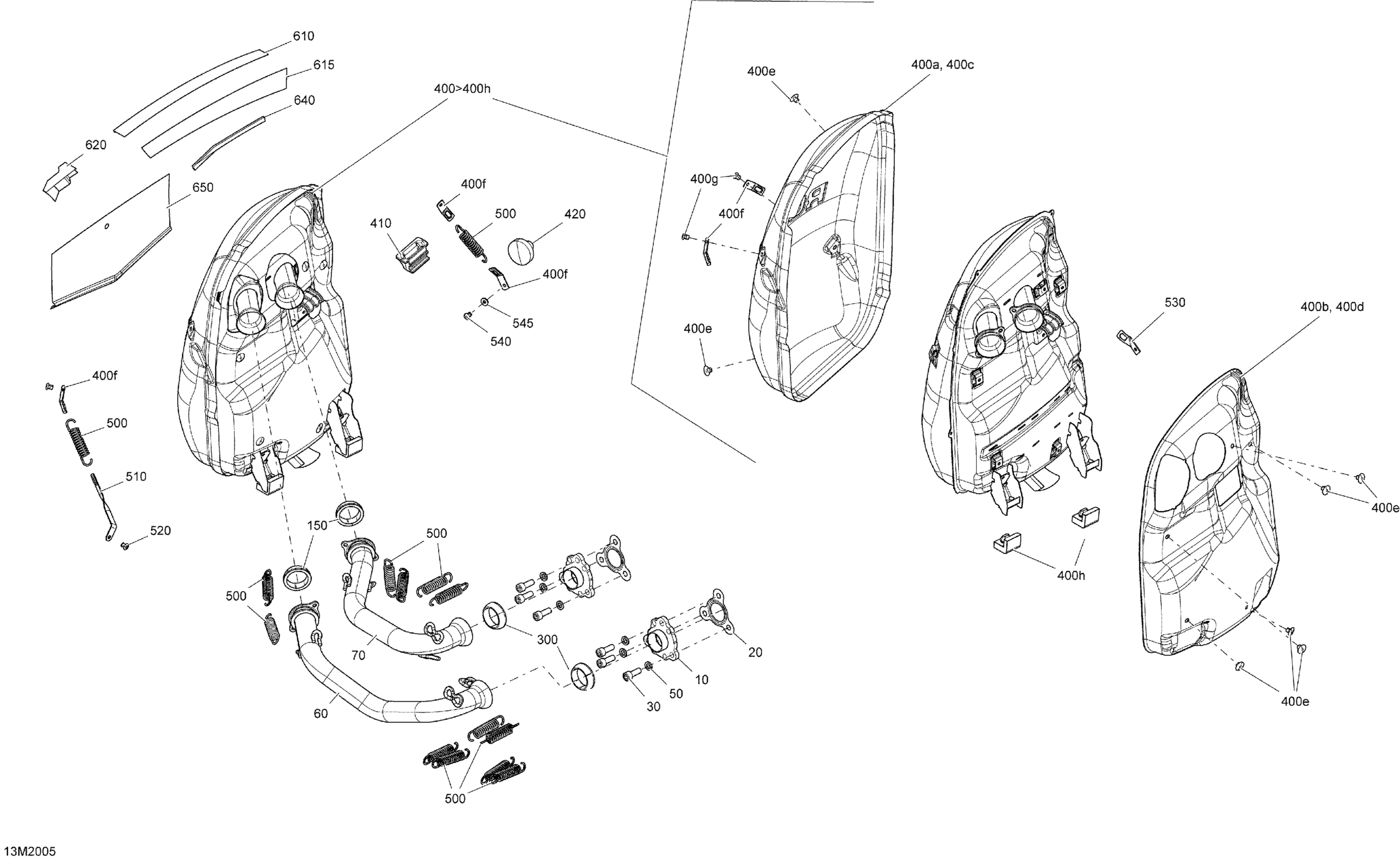

Ski-Doo 003 - TUNDRA 600 ACE - North America, 2020 02- Engine - Exhaust Diagram

Description

Price

Exhaust Manifold

514054673

$73.99

Gasket

514055112

$6.79

Socket Head Screw M8 X 22

250000414

$2.11

Washer

250200111

$2.11

Exhaust Tube, PTO Side

514054625

$190.49

Exhaust Tube, MAG Side

514054731

$190.49

150

Exhaust Gasket

514054807

$17.39

300

Exhaust Gasket

514054807

$17.39

400

Muffler Ass'y | Includes 400 to 400h

514055327

$995.99

400a

RH Heat Shield

514055325

$53.99

400b

LH Heat Shield

514054645

$53.99

400c

RH Insulating Wool

514054769

$14.99

400d

LH Insulating Wool

514054770

$15.99

400e

Pop Rivet 3/16”

390910000

$0.57

400f

Spring Bracket

514054522

$8.45

400g

Avex Rivet

390909200

$0.30

400h

Lower Stopper

514054496

$26.49

410

Upper Stopper

514054737

$14.16

420

Rubber Bumper

514053654

$50.99

500

Spring

415107100

$6.35

510

Spring Bracket

514055030

$13.10

520

Stavex Rivet

293150144

$0.82

530

Spring Bracket

514055037

$13.10

540

Avex Rivet

390909100

$0.30

545

Flat Washer

517225900

$0.18

610

Reflective Sheet

514054829

$6.69

615

Reflective Sheet

514054830

$6.69

620

Reflective Sheet

514054780

$7.29

640

Reflective Sheet

514054820

$7.29

650

Reflective Sheet

514054745

$13.49
