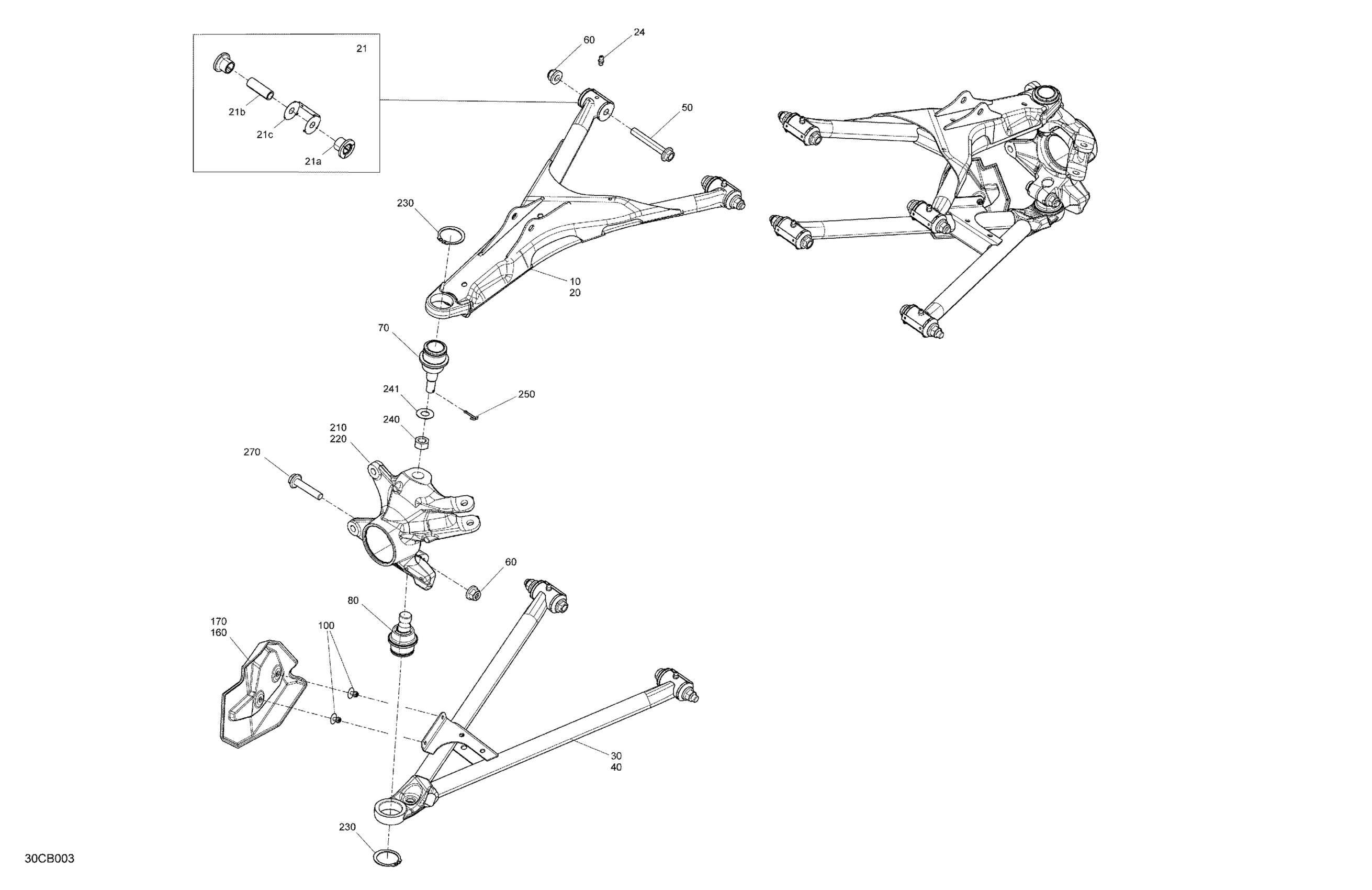

Can-Am Defender HD7 - BASE - 2022 Suspension - Front Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm Ass'y With Balljoint This part replaces 706204176.

715010606

$249.99

20

Deep Black, RH Upper Suspension Arm Ass'y With Balljoint This part replaces 706204175.

715010605

$249.99

21

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

21a

Not Available As Spare Part - Friction Washer

Unavailable

21b

Not Available As Spare Part - Friction Washer

Unavailable

21c

Not Available As Spare Part - Friction Washer

Unavailable

24

Grease Fitting

408200700

$3.49

30

LH Rear Suspension Arm Ass'y With Balljoint

715010597

$249.99

40

RH Front Suspension Arm Ass'y With Balljoint

715010598

$249.99

50

Hex. Flange Screw M10 X 70

207607046

$2.96

60

Hex. Flange Elastic Nut M10

233201436

$2.11

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

100

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

160

RH CV joint Guard

706202135

$11.01

170

LH CV joint Guard

706202134

$11.01

210

LH Knuckle

706205517

$148.49

220

RH Knuckle

706205047

$201.49

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

270

Hex. Flange Screw M10 X 55

207605546

$2.11
