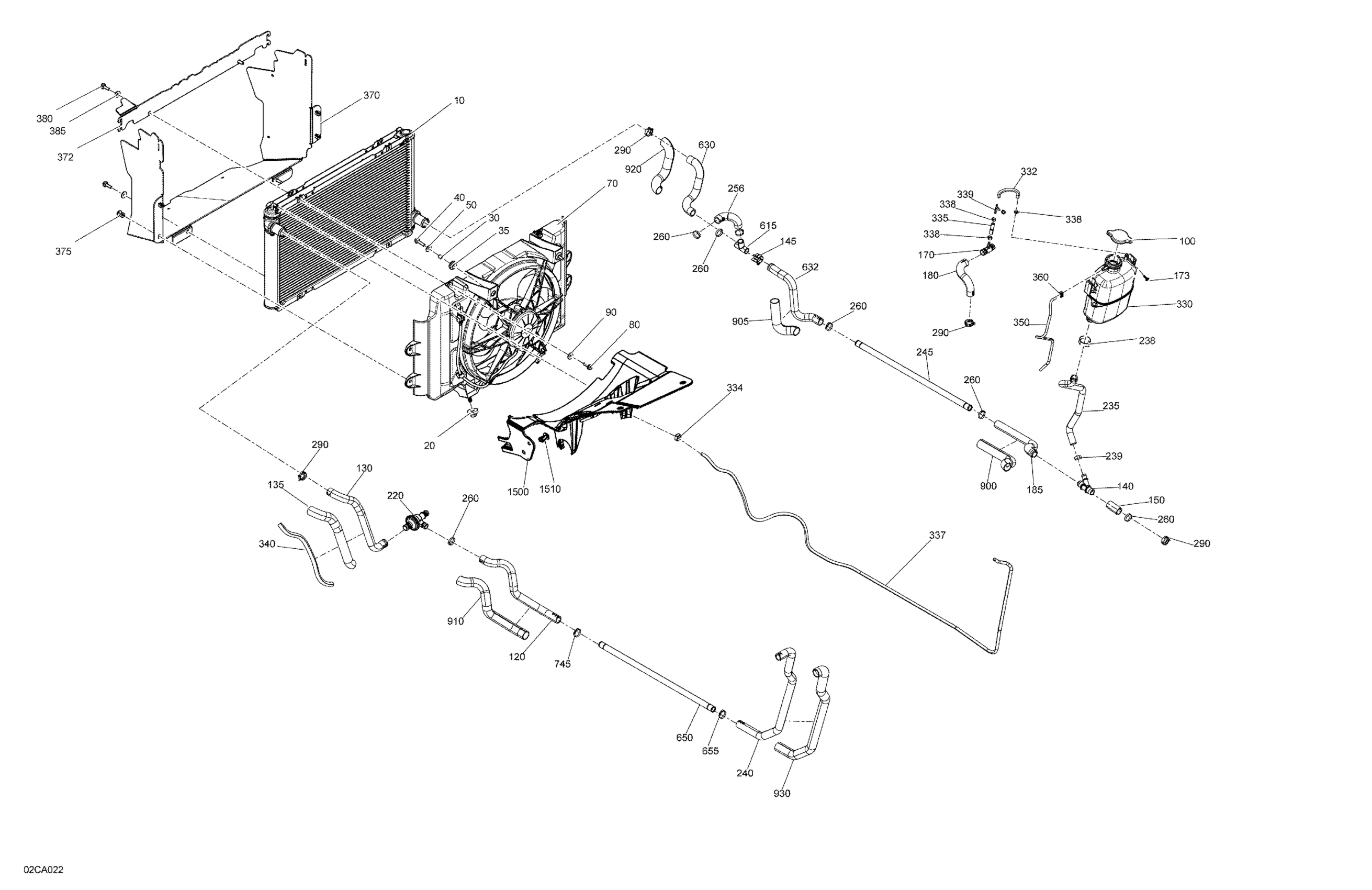

Can-Am Defender HD8 - BASE_DPS_XT - 2021 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

$359.97

20

Grommet

709200948

$7.09

30

Bushing

293900105

$6.26

35

Grommet

709000582

$4.38

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200534

$323.05

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

120

Hose

709201028

$23.05

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$8.57

140

Y Fitting

509001200

$5.52

145

Retainer

275500590

$7.18

150

Hose

709200299

$6.92

170

T-Fitting

509000510

$11.52

173

Torx Screw K50 X 16

250000720

$1.39

180

Hose Engine Out

709200915

$41.51

185

Hose

709200971

$41.51

220

Thermostat Housing

709200986

$92.28

235

Hose Coolant Tank Out

709201103

$36.89

238

Oetiker Gear Clamp

293650165

$4.32

239

Oetiker Gear Clamp

293650165

$4.32

240

Hose

709200969

$36.89

245

Heater Tubing

709200657

$13.49

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$5.84

290

Norma Spring Clamp

293650166

$4.28

330

Coolant Tank

709201323

$78.43

332

Was 415129508 Bleeder Hose

219704416

$11.83

334

Oetiker Clamp

293650042

$1.40

335

Bleeding Hose

709200606

$18.43

337

Was 415129508 Bleeder Hose

219704416

$11.83

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

340

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.83

370

Front Radiator Deflector

705013987

$50.74

372

Front Radiator Deflector

705014486

$50.74

375

Tuflok Plastic Rivet

293150230

$1.21

380

Hex. Flange Screw M6 X 20

207662044

$1.66

385

Flat Washer 6 mm

234062410

$0.64

615

T-Fitting

509000219

$15.35

630

Formed Radiator Hose OUT

709201440

Unavailable

632

Hose Radiator Out

709201029

$11.06

650

Heater Tubing

709200657

$13.49

655

Gear Clamp

509000162

$5.84

745

Gear Clamp

509000162

$5.84

900

Tubing 35 MM 1000MM Long

219704428

$8.57

905

Tubing 35 MM 1000MM Long

219704428

$8.57

910

Tubing 35 MM 1000MM Long

219704428

$8.57

920

Tubing 35 MM 1000MM Long

219704428

$8.57

930

Tubing 35 MM 1000MM Long

219704428

$8.57

1500

Front Air Deflector

709201036

$99.97

1510

Tuflok Plastic Rivet

293150230

$1.21
