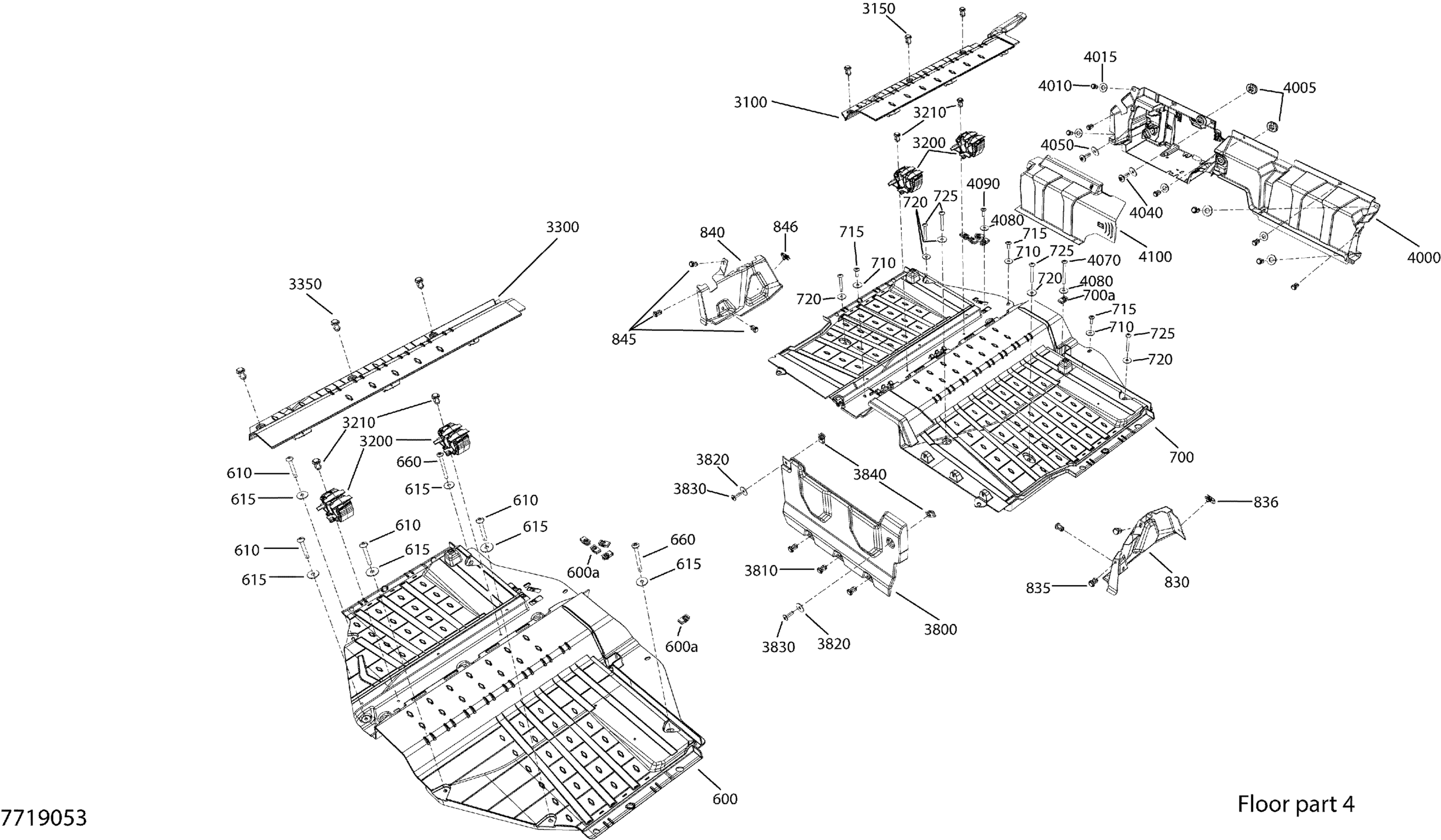

Can-Am Defender MAX HD8 - 2019 Cab Interior - Except XT CAB - Floor Section Diagram

Description

Price

600

Floor Ass'y | Includes 600 to 600b

707900431

$206.69

600a

Panel Nut M6 X 1.0

250100198

$1.99

610

Torx Truss M6 X 50

250000868

$2.00

615

Flat Washer M6.6 X 22

250200162

$2.19

660

Torx Screw M6 X 70

250000954

$1.79

700

Rear Floor Ass'y | Includes 700 to 700b

707900464

$265.64

700a

Panel Nut M6 X 1.0

250100198

$1.99

710

Stainless Steel Flat Washer

234062670

$2.00

715

Torx Screw M6 X 20

250000722

$1.54

720

Flat Washer M6.6 X 22

250200162

$2.19

725

Torx Truss M6 X 50

250000868

$2.00

830

LH Lower Panel

707900994

$73.85

835

Tuflok Plastic Rivet

293150230

$1.39

836

Panel Nut M6 X 1.0

250100198

$1.99

840

RH Lower Cover

707900444

$73.85

845

Tuflok Plastic Rivet

293150230

$1.39

846

Panel Nut M6 X 1.0

250100198

$1.99

3100

Floor Panel

707900806

$38.78

3150

Tuflok Plastic Rivet

293150230

$1.39

3200

Hose Support

707900325

$10.67

3210

Tuflok Plastic Rivet

293150230

$1.39

3300

Floor Cover

707900413

$47.73

3350

Tuflok Plastic Rivet

293150230

$1.39

3800

Rear Panel

707900996

$88.78

3810

Tuflok Plastic Rivet

293150230

$1.39

3820

Flat Washer M6.6 X 22

250200162

$2.19

3830

Torx Screw M6 X 20

250000722

$1.54

3840

Panel Nut M6 X 1.0

250100198

$1.99

4000

Rear Lower Bulkhead

707900228

$87.28

4005

Oval Washer

705005156

$4.70

4010

Tuflok Plastic Rivet

293150230

$1.39

4015

Washer

503192494

$3.01

4040

Torx Screw M6 X 20

250000722

$1.54

4050

Stainless Steel Flat Washer

234062670

$2.00

4070

Torx Screw M6 X 70

250000954

$1.79

4080

Flat Washer M6.6 X 22

250200162

$2.19

4090

Torx Screw M6 X 20

250000722

$1.54

4100

Battery Cover

707900282

$30.57
