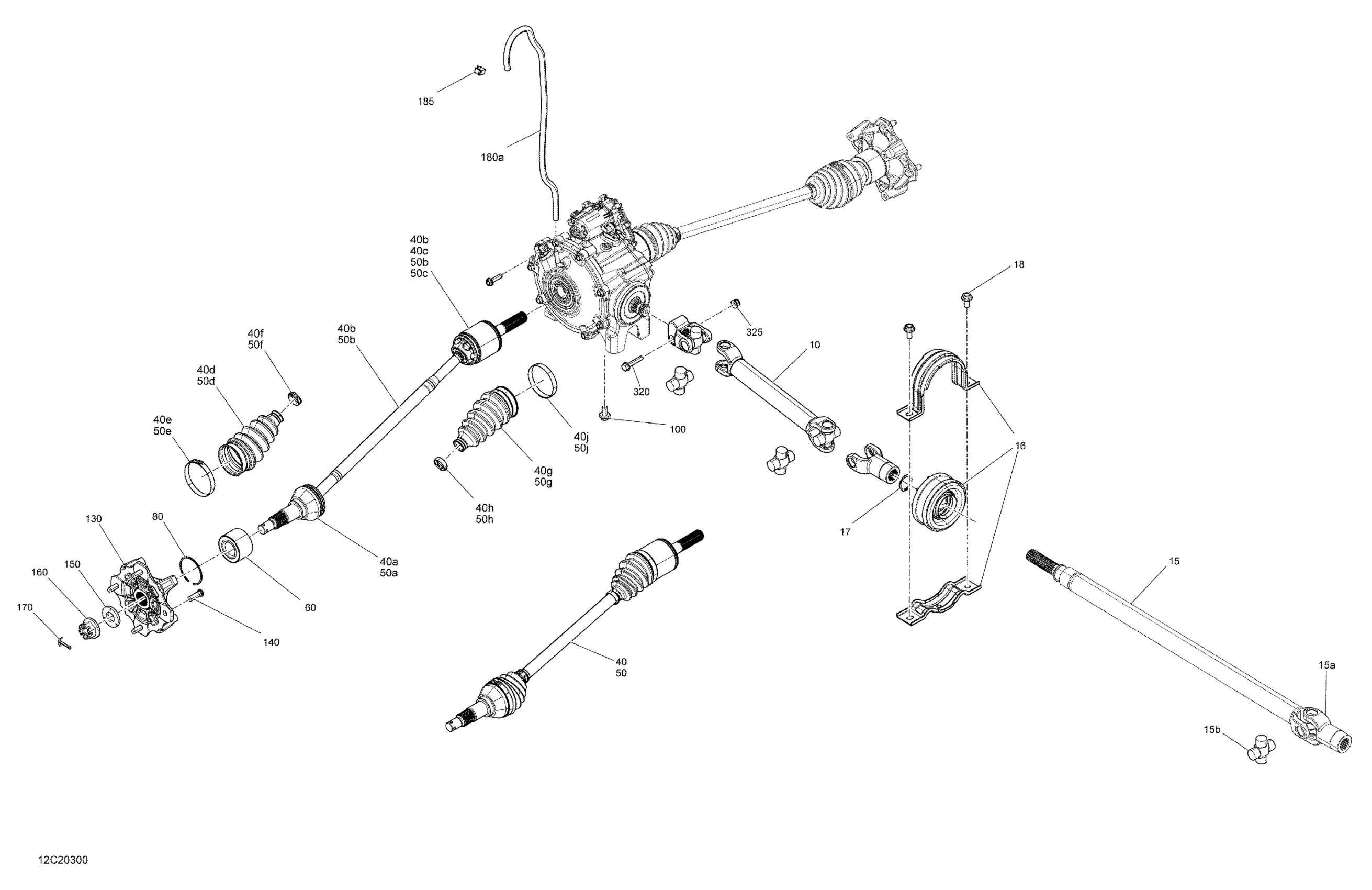

Can-Am Defender HD10 - XMR - 2020 Front Drive - Common Parts - XMR Diagram

#

Description
Price

10

Drive Axle Ass'y | Includes 10 to 10c

705403286

$243.49

15

Drive Axle Ass'y | Includes 15 to 15b

705403287

$328.49

15a

Yoke

715900401

$35.99

15b

J-Joint Cross Kit

715900402

$89.99

16

Ball Bearing Ass'y

705403522

$47.49

17

Snap Ring

293370098

$3.17

18

Hex. Flange Screw M10 X 20

207502046

$2.11

40

Performance CV Axle - Front | Includes 40 to 40g

705402420

$275.49

40a

CV Joint

715900619

$259.49

40b

LH Plunging Joint

715900568

$275.49

40c

Circlip

715900569

$5.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40e

Oetiker Clamp, Large

715900260

$10.33

40f

Oetiker Clamp, Small

715900261

$5.29

40g

Boot Kit, Différential Side

705401355

$42.49

40h

Oetiker Clamp, Small

715900261

$5.29

40j

Oetiker Clamp, Large

715900262

$10.33

40k

O-ring

715900580

$2.51

60

Ball Bearing

293350150

$52.99

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 20

207502046

$2.11

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

180a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

185

Clip

414227300

$1.67

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
