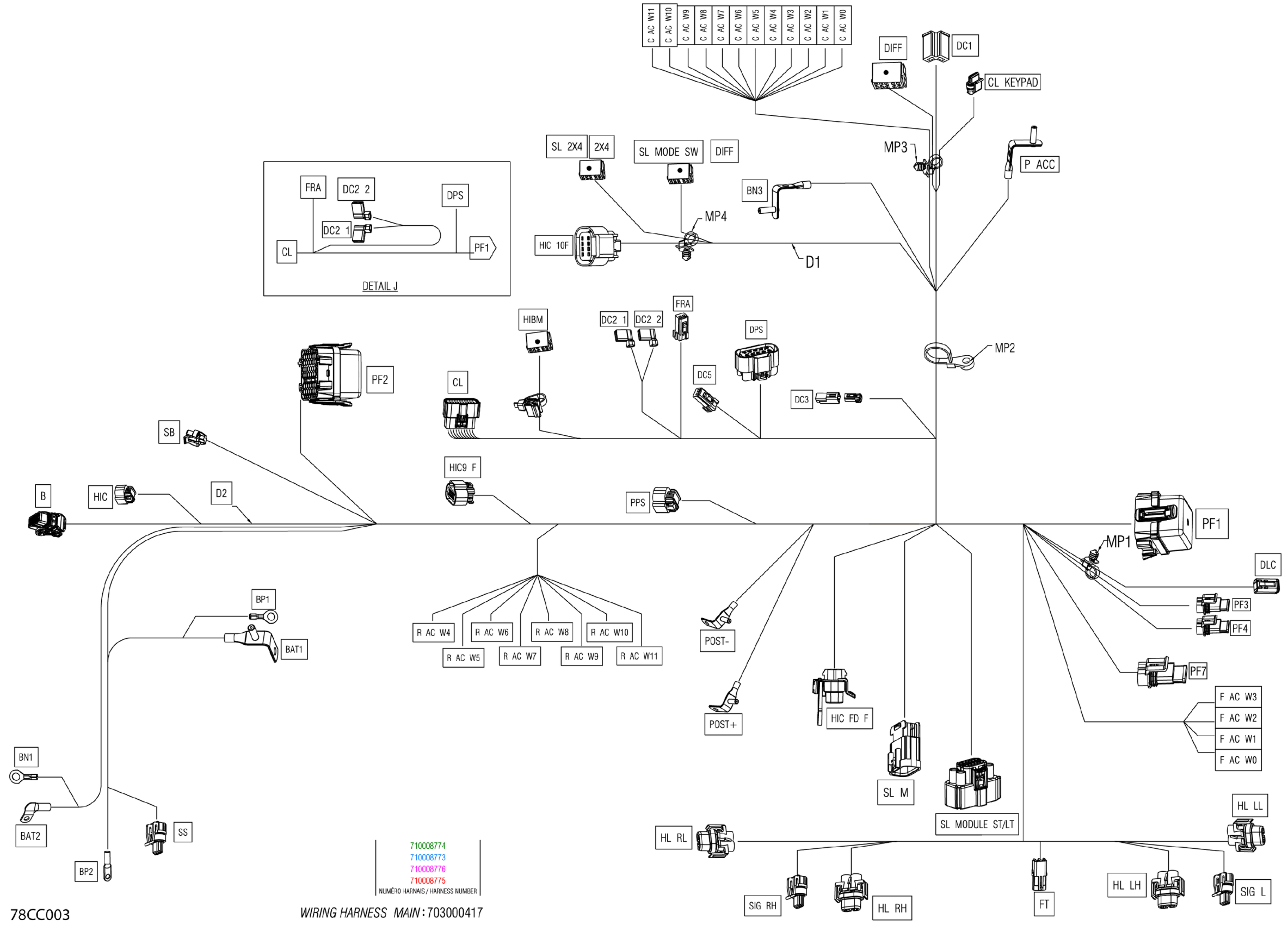

Can-Am Traxter HD10 - XMR - CE, 2023 Electric - Main Harness - 710008775 Diagram

#

Description
Price

300

Main Wiring Harness

710008775

$899.99

B

Cover, 48 positions

710001591

$12.18

B

Female Terminal Housing, 48 Circuits

710001588

$48.49

B

Plug

710001592

$2.21

B

Plug

710001593

$2.21

B

Female Terminal

710001727

$3.19

B

Terminal

710001728

$6.79

B

Female Terminal

710001589

$2.21

BN1

Terminal

710000913

$5.61

BN3

Open Barell

710006801

$9.95

BP1

Open Barrel

278000992

$2.21

BP2

Cap Battery Cable

710007033

$6.24

C AC W0

Insulated Sheath

278001008

$3.28

C AC W0

Male Terminal

278000230

$4.39

C AC W1

Insulated Sheath

278001008

$3.28

C AC W1

Male Terminal

278000230

$4.39

C AC W11

Insulated Sheath

278001008

$3.28

C AC W11

Male Terminal

278000230

$4.39

C AC W2

Insulated Sheath

278001008

$3.28

C AC W2

Male Terminal

278000230

$4.39

C AC W3

Insulated Sheath

278001008

$3.28

C AC W3

Male Terminal

278000230

$4.39

C AC W4

Insulated Sheath

278001008

$3.28

C AC W4

Male Terminal

278000230

$4.39

C AC W5

Insulated Sheath

278001008

$3.28

C AC W5

Male Terminal

278000230

$4.39

C AC W6

Insulated Sheath

278001008

$3.28

C AC W6

Male Terminal

278000230

$4.39

C AC W7

Insulated Sheath

278001008

$3.28

C AC W7

Male Terminal

278000230

$4.39

C AC W8

Insulated Sheath

278001008

$3.28

C AC W8

Male Terminal

278000230

$4.39

C AC W9

Insulated Sheath

278001008

$3.28

C AC W9

Male Terminal

278000230

$4.39

C AC W10

Insulated Sheath

278001008

$3.28

C AC W10

Male Terminal

278000230

$4.39

CL

Female Housing 20 Circuits

278002858

$22.49

CL

Sealing Cap

278002860

$1.79

CL

Female Terminal

515178018

$1.19

CL

Female Terminal 22 AWG

515178349

$2.29

CL KEYPAD

Housing

710001161

$11.12

CL KEYPAD

Lock

710001162

$3.19

CL KEYPAD

Wire Seal

710001163

$7.69

CL KEYPAD

Female Terminal

710001164

$8.89

D2

Diode

409012700

$11.12

DC1

Housing

710005373

$5.29

DC1

Terminal

710005518

$1.49

DC2 1

Female Terminal

409010300

$4.39

DC2 2

Female Terminal

409010300

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Female Terminal

515175231

$4.39

DC3 CAP

Male Housing, 2 Circuits

710000667

$8.32

DC5

Female Housing, 2 Circuits

515175658

$16.18

DC5

Female Terminal

515175231

$4.39

DC5 CAP

Male Housing, 2 Circuits

710000667

$8.32

DIFF

Housing

710002000

$7.90

DIFF

Female Terminal

710005491

$2.09

DIFF

Terminal

710003047

$3.49

DLC

Female Housing 6 Circuits

710002706

$20.49

DLC

Lock

710002705

$4.44

DLC

Female Terminal

710005438

$4.29

DLC

Female Terminal

710005439

$4.44

DPS

Female Housing

710004989

$7.41

DPS

Lock | PACKARD 15430900

710005098

$2.09

DPS

Lock

710001222

$2.09

DPS

Plug

710002075

$3.09

DPS

Wire Seal

278002186

$5.50

DPS

Seal

710003153

$0.99

DPS

Female Terminal

278002187

$6.39

DPS

Terminal

710001873

$2.09

F AC W0

Insulated Sheath

278001007

$3.58

F AC W0

Female Terminal | DS 650 X

278001009

$3.19

F AC W1

Insulated Sheath

278001007

$3.58

F AC W1

Female Terminal | DS 650 X

278001009

$3.19

F AC W2

Insulated Sheath

278001007

$3.58

F AC W2

Female Terminal | DS 650 X

278001009

$3.19

F AC W3

Insulated Sheath

278001007

$3.58

F AC W3

Female Terminal | DS 650 X

278001009

$3.19

FL-1

Fuse Link 21-30AMP

715002536

$16.86

FL-2

Fuse Link 41-50AMP

715002538

$21.99

FRA

Female Housing, 2 Circuits

515175658

$16.18

FRA

Female Terminal

710003896

$2.19

FT

Clip

710000992

$4.29

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Male Terminal

409004300

$5.61

HIBM

Housing Connector

710002001

$13.71

HIBM

Terminal

710003047

$3.49

HIBM

Female Terminal

710005491

$2.09

HIBM

Terminal

710003048

$4.39

HIC

Female Housing, 12 Circuits

710001930

$15.80

HIC

Lock

710006333

$6.79

HIC

Lock

710001222

$2.09

HIC

Cap

710001225

$9.19

HIC

Seal

710001233

$3.19

HIC

Seal Wire

710001332

$3.28

HIC

Terminal

710001229

$3.19

HIC

Terminal

710001228

$3.28

HIC 10 F

Housing

710001928

$16.86

HIC 10 F

Lock

710001222

$2.09

HIC 10 F

Lock

710006181

$3.19

HIC 10 F

Seal

710001233

$3.19

HIC 10 F

Terminal

710001229

$3.19

HIC9 F

Female Housing, 12 Circuits

710001930

$15.80

HIC9 F

Lock

710006333

$6.79

HIC9 F

Lock

710001222

$2.09

HIC9 F

Cap

710001225

$9.19

HIC9 F

Seal

710001233

$3.19

HIC9 F

Seal Wire

710001332

$3.28

HIC9 F

Terminal

710001229

$3.19

HIC9 F

Terminal

710001228

$3.28

HL LH

Housing

710002578

$3.19

HL LH

Lock

710002584

$4.39

HL LH

Wire Seal

710001427

$2.09

HL LH

Female Terminal

278002578

$1.04

HL LL

Housing

710002578

$3.19

HL LL

Lock

710002584

$4.39

HL LL

Wire Seal

710001427

$2.09

HL LL

Female Terminal

278002578

$1.04

HL RH

Housing

710002578

$3.19

HL RH

Lock

710002584

$4.39

HL RH

Wire Seal

710001427

$2.09

HL RH

Female Terminal

278002578

$1.04

HL RL

Housing

710002578

$3.19

HL RL

Lock

710002584

$4.39

HL RL

Wire Seal

710001427

$2.09

HL RL

Female Terminal

278002578

$1.04

P ACC

Folded Terminal Eyelet

710006749

$9.95

PF1

Fuse Cover

278003553

$3.72

PF1

Fuse Base Ass'y

278003448

$31.99

PF1

Wire Seal

278000216

$3.19

PF1

Seal

293300198

$2.39

PF1

Wire Seal

278000218

$4.39

PF1

Wire Seal

278001065

$7.69

PF1

Wire Seal

710000048

$7.69

PF1

Female Terminal

710000918

$7.69

PF1

Female Terminal

278002578

$1.04

PF1

Female Terminal

515177177

$6.49

PF1

Terminal

710008508

$4.55

PF1 LABEL STD

Fuse Box Decal

710006953

$4.09

PF1-F11

Little Fuse, 20 Amperes

710000746

$8.49

PF1-F12

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F14

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F16

Little Fuse, 10 Amperes

710000744

$8.79

PF1-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF1-R3

Relay, 30 AMP

515176774

$21.99

PF1-R8

Relay

715900824

$21.99

PF1-R9

Relay, 50 AMP

515176775

$15.79

PF1-SPARE

Little Fuse, 20 Amperes

710000746

$8.49

PF2

Fuse Cover

278003553

$3.72

PF2

Fuse Base Ass'y

278003448

$31.99

PF2

Wire Seal

278000216

$3.19

PF2

Seal

293300198

$2.39

PF2

Wire Seal

278000218

$4.39

PF2

Wire Seal

278001065

$7.69

PF2

Female Terminal

710000918

$7.69

PF2

Female Terminal

278002578

$1.04

PF2

Female Terminal

710000890

$4.55

PF2_LABEL

Fuse Box Decal

710008085

$14.49

PF2_SP1

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP2

Little Fuse, 10 Amperes

710000744

$8.79

PF2_SP3

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F18

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F4

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F5

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F6

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F7

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F8

Little Fuse, 10 Amperes

710000744

$8.79

PF2-F9

Fuse, 25 Amps

710002590

$19.49

PF2-R1

Relay, 30 AMP

515176774

$21.99

PF2-R2

Relay

715900824

$21.99

PF3

Fuse Holder

278001325

$8.79

PF3

Female Terminal

710000113

$6.99

PF3-F2

Fuse

710001613

$8.79

PF4

Fuse Holder

278001325

$8.79

PF4

Female Terminal

710000357

$7.69

PF4-F21

Fuse

710001613

$8.79

PF7

Fuse Holder

278001325

$8.79

PF7

Female Terminal

710000113

$6.99

PF7

Female Terminal

710000357

$7.69

PF7-F23

Fuse, 20 Amperes

409003900

$3.28

PPS

Housing

515177151

$5.66

PPS

Lock 6 Positions

710005296

$1.09

PPS

Seal

710001233

$3.19

PPS

Terminal

710001229

$3.19

R AC W10

Insulated Sheath

278001007

$3.58

R AC W10

Female Terminal | DS 650 X

278001009

$3.19

R AC W11

Insulated Sheath

278001007

$3.58

R AC W11

Female Terminal | DS 650 X

278001009

$3.19

R AC W4

Insulated Sheath

278001007

$3.58

R AC W4

Female Terminal | DS 650 X

278001009

$3.19

R AC W5

Insulated Sheath

278001007

$3.58

R AC W5

Female Terminal | DS 650 X

278001009

$3.19

R AC W6

Insulated Sheath

278001007

$3.58

R AC W6

Female Terminal | DS 650 X

278001009

$3.19

R AC W7

Insulated Sheath

278001007

$3.58

R AC W7

Female Terminal | DS 650 X

278001009

$3.19

R AC W8

Insulated Sheath

278001007

$3.58

R AC W8

Female Terminal | DS 650 X

278001009

$3.19

R AC W9

Insulated Sheath

278001007

$3.58

R AC W9

Female Terminal | DS 650 X

278001009

$3.19

R-36

Resistor

710007285

$2.24

SB

Housing

710002177

$3.19

SB

Lock

710002043

$0.90

SB

Seal

278001482

$3.19

SB

Female Terminal

710001134

$7.69

SIG L

Female Housing, 2 Circuits

515177192

$9.12

SIG L

Lock

710001152

$4.39

SIG L

Wire Seal

710001163

$7.69

SIG L

Female Terminal

710001164

$8.89

SIG R

Female Housing, 2 Circuits

515177192

$9.12

SIG R

Lock

710001152

$4.39

SIG R

Wire Seal

710001163

$7.69

SIG R

Female Terminal

710001164

$8.89

SL 2X4

Housing

710002000

$7.90

SL 2X4

Terminal

710003047

$3.49

SL 2X4

Female Terminal

710005491

$2.09

SL M

Housing

710001927

$8.79

SL M

Holder | XMR

710002006

$3.19

SL M

Lock

710006181

$3.19

SL M

Seal

710001233

$3.19

SL M

Seal Wire

710001332

$3.28

SL M

Terminal

710001224

$3.19

SL M

Terminal

710001223

$3.19

SL MODE SW

Housing

710002000

$7.90

SL MODE SW

Terminal

710003047

$3.49

SL MODE SW

Female Terminal

710005491

$2.09

SL MODULE LT

Seal

278003046

$0.92

SL MODULE LT

Seal Plug

710006362

$6.35

SL MODULE LT

Terminal

710005584

$2.09

SL MODULE ST

Female Housing ,16 Circuits

278003484

$17.59

SL MODULE ST

Female Terminal

515178018

$1.19

SL MODULE ST

Female Terminal 22 AWG

515178349

$2.29

SS

Female Housing, 2 Circuits

515177192

$9.12

SS

Lock

710001152

$4.39

SS

Seal Wire

710001153

$2.21

SS

Female Terminal

710001164

$8.89
