Description

Price

30

Front Differential Ass'y | Includes 30 to 30bc

705403300

$1,608.82

30a

Ball

715900564

$5.04

30b

Fill Level Plug

705501889

$18.63

30c

Fill Level Plug M10

715900563

$25.34

30d

Torx Screw M6 X 16

705402845

$9.25

30f

Bolt

705501886

$6.30

30g

Hex Screw 3/8 X 0.500

715900561

$12.64

30h

Nut M75 X 1.5

705401819

$22.36

30j

Nut M27 X 1.5

705401820

$19.37

30k

Thrust Washer 1,510 X 1,875 X 0,032

715900656

$25.34

30m

Dowel Pin

715900559

$6.16

30n

Dowel Pin 3 X 36

715900655

$29.07

30p

Dowell Pin

715900618

$17.88

30q

Retainin Ring

715900558

$23.85

30r

Thrust Washer

715900557

$26.84

30s

Ball Bearing

705401821

$29.82

30t

Ball Bearing 60 X 95 X 18

715900556

$40.27

30u

Needle Bearing

715900555

$17.13

30v

Ball Bearing 65 X 85 X 10

715900554

$87.28

30w

Needle Bearing

715900634

$35.04

30x

Spring

715900553

$26.84

30y

LH Cover

715900684

$134.30

30z

RH Cover

715900683

$143.25

30aa

Housing

715900674

$127.58

30ab

Housing

715900713

$105.19

30ac

Pinion 10 T

715900635

$172.36

30ad

Gear 36T

715900658

$403.70

30af

Diff Pinion Gear 9T

715900714

$71.61

30ag

Gear Output 14T

715900715

$109.67

30ah

Gear Output 14T

715900716

$109.67

30aj

Vent Valve

705401935

$13.43

30ak

Coupler, Pin

715900541

$60.42

30am

Ramp Ball

715900540

$71.61

30an

Pin Diff Pinion 0.5 x 1.3125

715900711

$35.04

30ap

Pin Diff Pinion 0.5 X 3.125

715900712

$35.04

30aq

Shim 74.50 X 66.00

715900539

$160.42

30ar

Shim 3.735 X 3.300

715900538

$246.99

30as

Clutch Pack

715900537

$215.64

30at

Actuator Ass'y

715900640

$429.82

30au

Tone Ring 30T

715900534

$32.06

30av

Vent Cap 5/16

715900533

$6.30

30aw

Speed Sensor

715900532

$92.51

30ax

Oil Seal

715900531

$24.60

30ay

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$17.13

30az

O-Ring

715900530

$10.94

30ba

O-Ring

715900601

$10.24

30bb

O-Ring

715900600

$10.94

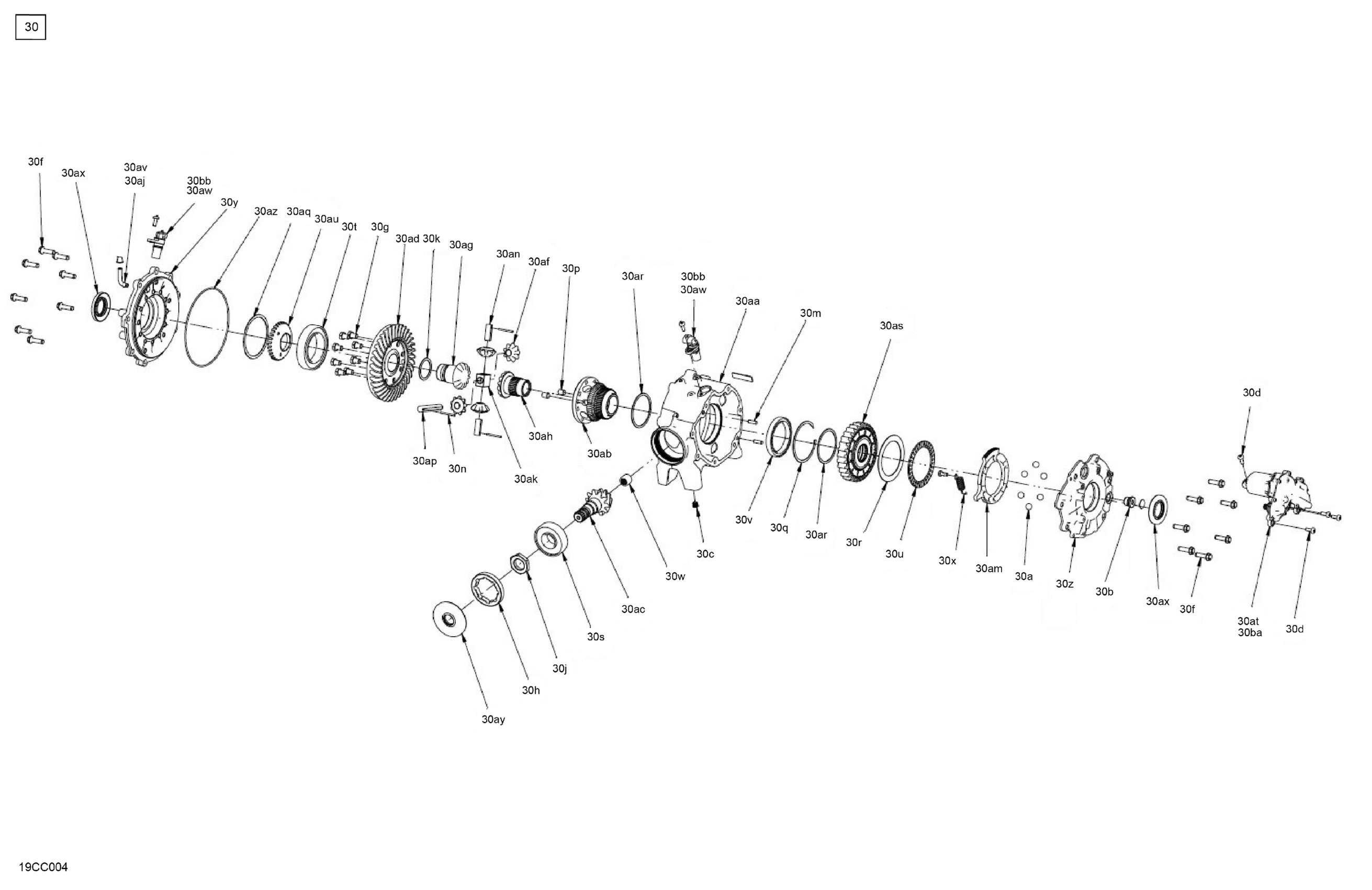

Can-Am Traxter HD10 - XMR - CE, 2023 Drive - Front - Differential Parts Diagram

Front Differential Ass'y | Includes 30 to 30bc

Ball

Fill Level Plug

Fill Level Plug M10

Torx Screw M6 X 16

Bolt

Hex Screw 3/8 X 0.500

Nut M75 X 1.5

Nut M27 X 1.5

Thrust Washer 1,510 X 1,875 X 0,032

Dowel Pin

Dowel Pin 3 X 36

Dowell Pin

Retainin Ring

Thrust Washer

Ball Bearing

Ball Bearing 60 X 95 X 18

Needle Bearing

Ball Bearing 65 X 85 X 10

Needle Bearing

Spring

LH Cover

RH Cover

Housing

Housing

Pinion 10 T

Gear 36T

Diff Pinion Gear 9T

Gear Output 14T

Gear Output 14T

Vent Valve

Coupler, Pin

Ramp Ball

Pin Diff Pinion 0.5 x 1.3125

Pin Diff Pinion 0.5 X 3.125

Shim 74.50 X 66.00

Shim 3.735 X 3.300

Clutch Pack

Actuator Ass'y

Tone Ring 30T

Vent Cap 5/16

Speed Sensor

Oil Seal

Oil Seal, Triple Lip 25 X 79 X 8

O-Ring

O-Ring

O-Ring
