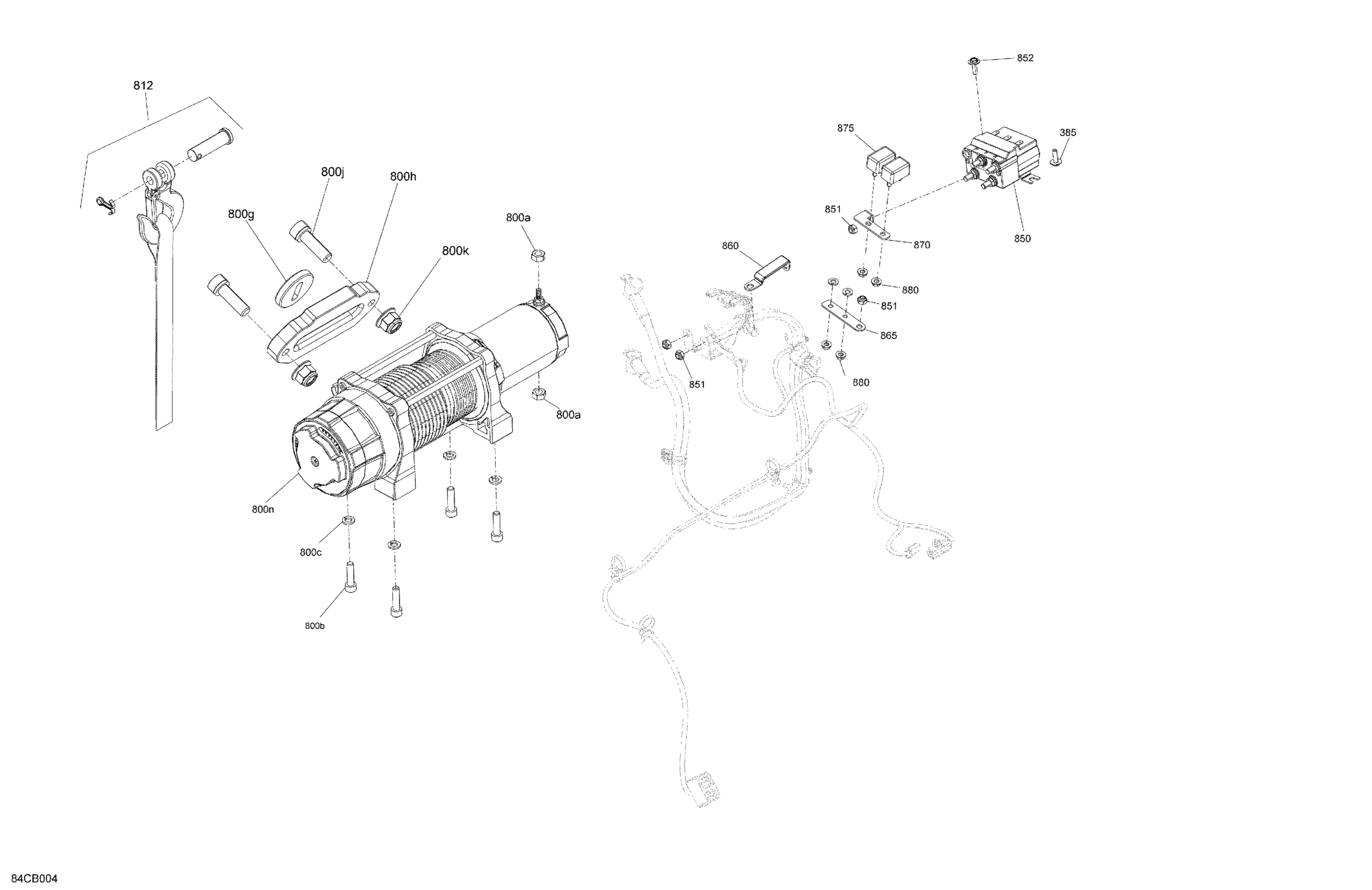

Can-Am 003 - Traxter HD10 - XMR - CE, 2022 08- Electric - Winch Diagram

Description

Price

385

Screw PT Type K-50 X 16

250000959

$2.11

800a

Elastic Stop Nut M6

232561434

$1.99

800b

Socket Head Screw M8 X 30

205083044

$1.15

800c

Lock Washer 8 mm

234181401

$0.92

800g

Stopper

710007028

$3.82

800h

Winch Rope Guide Kit

715006426

$61.49

800j

Socket Screw M10 x 30 | XT

205003044

$3.17

800k

Hex. Flange Elastic Nut M10

233201414

$1.58

800m

Deepo Black, Winch Support | Includes 53a to 53a

705211620

$56.99

800n

Electric Winch

710006990

$763.49

800n1

WINCH DECAL 4500S - Call your local BRP dealership | Not Shown

704908222

Unavailable

812

Winch Hook Kit

705014949

$24.99

850

Solenoid

710006991

$62.49

851

Elastic Stop Nut M6, Brass

232561200

$4.23

852

Torx Screw K50 X 16

250000720

$1.69

860

Power Bar

710004772

$12.16

865

Copper Busbar

710006401

$12.16

870

Power Bar

710004873

$12.16

875

Circuit Breaker 50 Amp

710007039

$19.49

880

Flange Elastic Nut M5

233251434

$2.00
