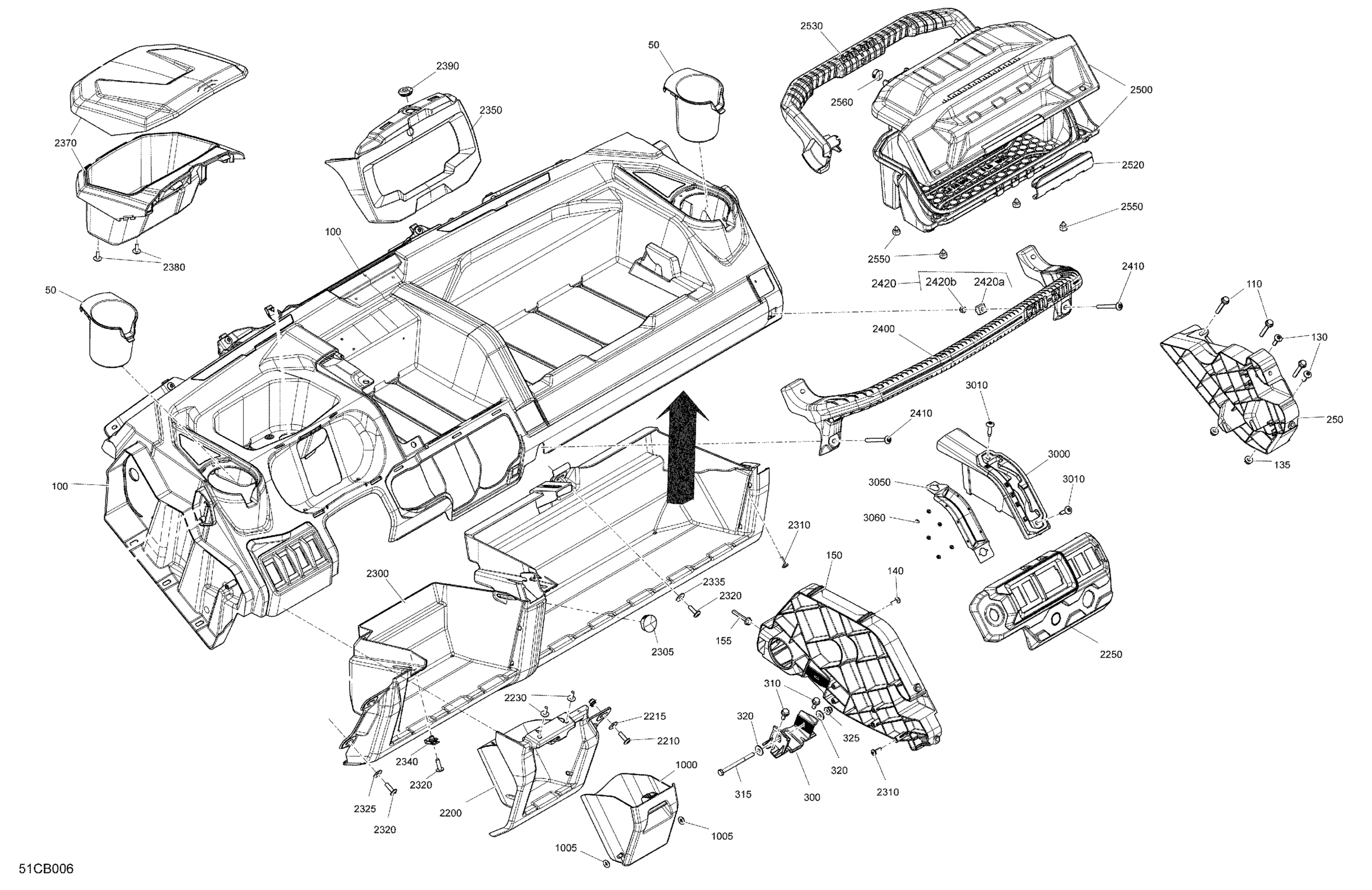

Can-Am Traxter HD10 - XMR - CE, 2022 Cab Interior - Dashboard Diagram

#

Description
Price

50

Cup Holder

707901122

$15.49

100

Upper Dashboard Kit (Includes Decal)

715008368

$194.99

110

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

130

Torx Screw M6 X 20

250000712

$2.11

135

Hex. Flange Elastic Nut M6

233261494

$1.58

140

Torx Screw K50 X 16

250000720

$1.69

150

Central Console Support

707901134

$61.99

155

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

250

RH Console Support

707901126

$36.99

300

Plier

707900940

$5.39

310

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

315

Hex. Screw M6 X 80

207068044

$4.12

320

Stainless Steel Flat Washer

234062670

$2.11

325

Hex. Flange Elastic Nut M6

233261494

$1.58

1000

Cover

707901132

$20.99

1005

O-Ring

293300194

$1.25

2200

LH Lower Dashboard

707901118

$46.99

2210

Torx Screw M6 X 20

250000722

$1.68

2215

Stainless Steel Flat Washer

234062670

$2.11

2230

Screw PT Type K-50 X 16

250000959

$2.11

2250

Switch Support Ass'y

715008266

$19.99

2300

Lower Dashboard

707901086

$104.99

2305

Cap

710004993

$7.69

2310

Torx Screw K50 X 16

250000720

$1.69

2320

Torx Screw M6 X 20

250000722

$1.68

2325

Stainless Steel Flat Washer

234062670

$2.11

2335

Stainless Steel Flat Washer

234062670

$2.11

2340

Panel Nut M6 X 1.0

250100198

$2.11

2350

Gauge Support

707901121

$19.99

2370

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$43.99

2380

Screw PT Type K-50 X 16

250000959

$2.11

2390

Grommet

705003264

$4.09

2400

Passenger Handhold

707900248

$49.99

2410

Torx Screw M6 X 60

250000648

$7.51

2420

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

2420a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

2420b

Hex. Elastic Stop Nut M6

232561600

$1.15

2500

Removable Storage Bin

715004344

$88.99

2520

Clip | Outlander Max

269501945

$15.89

2530

Box Handle

707901116

$19.49

2550

Rubber Bumper

293830005

$8.09

2560

Cap

293000120

$2.89

3000

Shifter Gate

707900608

$8.99

3010

Torx Screw M6 X 25 | XT Models

250000728

$4.44

3050

Shifter Gate Deflector

707900506

$5.69

3060

Push Nut

250100178

$0.63
