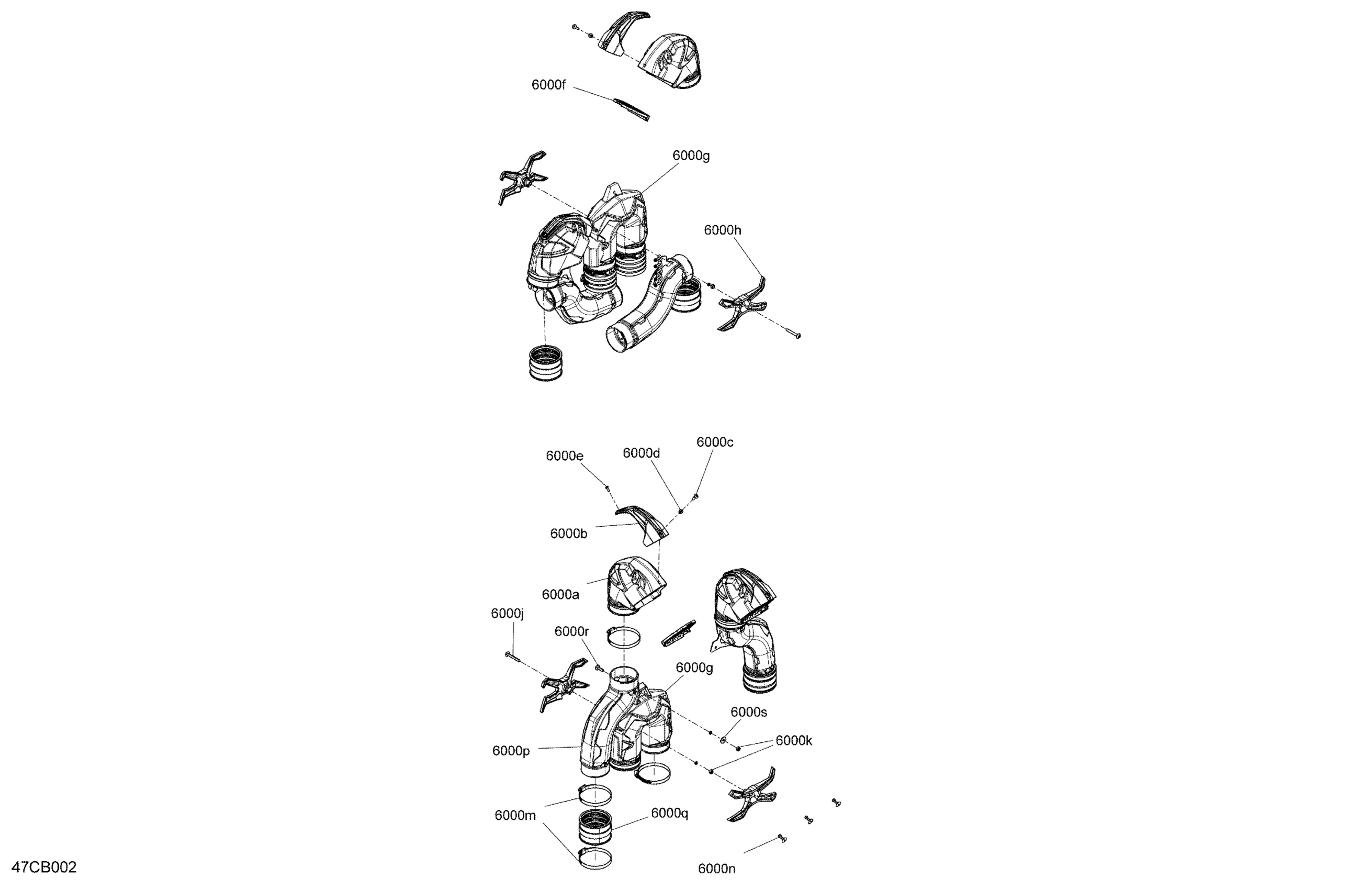

Can-Am 003 - Traxter HD10 - XMR - CE, 2022 07- Body - Snorkel Diagram

Description

Price

6000a

Air Inlet

706600236

$54.99

6000b

Cap Can-Am Red | Package XMR White/Red/Black

707001978

$23.99

6000c

Torx Screw M5 X 20

250000792

$2.11

6000d

Elastic Flange Nut M5

233251494

$2.11

6000e

Torx Truss PT K40 x 12

250001131

$2.11

6000f

Air Inlet Grille

706600407

$4.09

6000g

CVT Outlet

706600205

$43.99

6000h

Can-Am Red, Trim

705016546

$13.99

6000j

Torx Screw M6 X 45

250000647

$6.82

6000k

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

6000m

Clamp

293650272

$20.99

6000n

Pop Rivet 3/16”

293150101

$2.09

6000p

Intake Tube

706600277

$67.99

6000q

Flexible Joint

706600278

$28.99

6000r

Torx Screw M6 X 20

250000712

$2.11

6000s

Flat washer M6

250200164

$1.01
