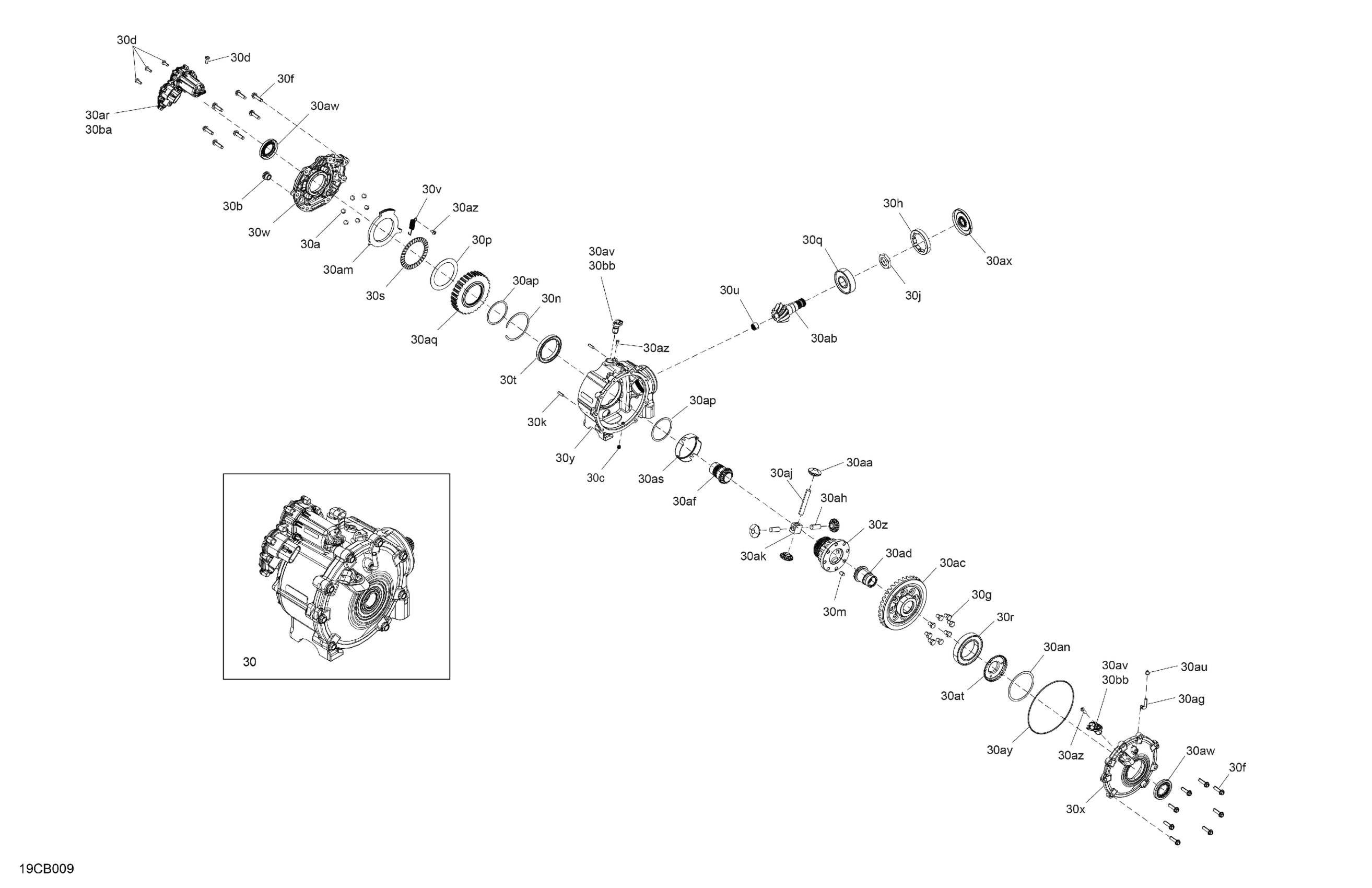

Can-Am Traxter HD10 - XMR - CE, 2022 Drive - Front - Differential Parts Diagram

#

Description
Price

30

Front Differential Ass'y | Includes 30 to 30bc

705403300

$1,686.24

30a

Ball

715900564

$5.38

30b

Fill Level Plug

705501889

$18.43

30c

Fill Level Plug M10

715900563

$27.66

30d

Torx Screw M6 X 16

705402845

$10.14

30f

Bolt

705501886

$6.75

30g

Hex Screw 3/8 X 0.500

715900561

$13.83

30h

Nut M75 X 1.5

705401819

$23.05

30j

Nut M27 X 1.5

705401820

$23.05

30k

Dowel Pin

715900559

$6.45

30m

Dowell Pin

715900618

$20.74

30n

Retainin Ring

715900558

$27.66

30p

Thrust Washer

715900557

$27.66

30q

Ball Bearing

705401821

$30.39

30r

Ball Bearing 60 X 95 X 18

715900556

$41.32

30s

Needle Bearing

715900555

$17.66

30t

Ball Bearing 65 X 85 X 10

715900554

$89.77

30u

Needle Bearing

715900634

$36.12

30v

Spring

715900553

$27.66

30w

RH Cover

715900683

$152.28

30x

LH Cover

715900684

$143.05

30y

Housing

715900674

$133.82

30z

Housing

715900617

$119.97

30aa

Pinion 10T

715900548

$87.66

30ab

Pinion 10 T

715900635

$179.97

30ac

Gear 36T

715900676

$383.05

30ad

Gear 14T

715900546

$82.28

30af

Gear 14T

715900545

$82.28

30ag

Vent Valve

705401935

$14.37

30ah

Pinion Pin 0.5 X 1.250

715900543

$20.74

30aj

Pinion Pin 0.5 X 3.000

715900542

$20.74

30ak

Coupler, Pin

715900541

$64.58

30am

Ramp Ball

715900540

$73.82

30an

Shim 74.50 X 66.00

715900539

$166.12

30ap

Shim 3.735 X 3.300

715900538

$258.43

30aq

Clutch Pack

715900537

$226.12

30ar

Actuator Ass'y

715900640

$452.28

30as

Cross Pin Retainer

715900535

$27.66

30at

Tone Ring 30T

715900534

$32.28

30au

Vent Cap 5/16

715900533

$6.75

30av

Speed Sensor

715900532

$96.89

30aw

Oil Seal

715900531

$27.66

30ax

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89

30ay

O-Ring

715900530

$11.83

30az

Torx Screw M6 X 16

705402845

$10.14

30ba

O-Ring

715900601

$10.98

30bb

O-Ring

715900600

$11.83
