Description

Price

10

Manta Green, LH Front Fender

705014063

$309.99

15

Panel Nut M6 X 1.0

250100198

$2.11

20

Manta Green, RH Front Fender

705014064

$309.99

25

Panel Nut M6 X 1.0

250100198

$2.11

30

Tuflok Plastic Rivet

293150230

$1.47

40

Washer

503192494

$3.17

100

Multi Purpose Support

705013766

$43.99

105

Torx Screw M6 X 20

250000722

$1.68

110

Panel Nut M6 X 1.0

250100198

$2.11

115

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

116

Stainless Steel Flat Washer

234062670

$2.11

120

Hex. Flange Screw M6 X 75

207667554

$4.44

130

Push Nut

732610072

$2.19

135

Bushing

293900125

$2.69

160

Mineral Satin Gray, Front Hood

705014059

$389.99

320

Grille

705013590

$26.99

330

Clip

517306478

$1.09

350

Emblem X | Model XTP

705014036

$12.99

355

Screw M4 X 16

250000725

$3.49

395

Screw M4 X 16

250000725

$3.49

400

Deep Black, Front Fascia

705013591

$229.99

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$13.49

455

RH Front Reflector

704905073

$13.49

510

Torx Screw M6 X 20

250000722

$1.68

520

Panel Nut M6 X 1.0

250100198

$2.11

525

Torx Screw M6 X 20

250000722

$1.68

530

Stainless Steel Flat Washer

234062670

$2.11

550

Torx Screw K50 X 16

250000720

$1.69

555

Flat Washer M5

234051670

$2.11

860

LH Front Lateral Panel

705008152

$62.99

870

RH Front Lateral Panel

705008153

$62.99

935

Torx Screw K50 X 16

250000720

$1.69

940

Deep Black, LH Rear Body Panel

705013658

$109.99

945

Tuflok Plastic Rivet

293150230

$1.47

950

Deep Black, RH Rear Body Panel

705013659

$109.99

955

Tuflok Plastic Rivet

293150230

$1.47

960

Torx Screw M6 X 20

250000722

$1.68

970

Panel Nut M6 X 1.0

250100198

$2.11

975

Tuflok Plastic Rivet

293150230

$1.47

1000

LH Side Central Panel

705017552

$71.99

1005

Torx Truss Screw M6 X 25

250000807

$2.11

1006

Stainless Steel Flat Washer

234062670

$2.11

1020

Deep Black, RH Central Panel

705019038

$74.99

1025

Torx Truss Screw M6 X 25

250000807

$2.11

1026

Stainless Steel Flat Washer

234062670

$2.11

1030

Pop Rivet 3/16”

293150108

$1.19

1300

LH Rear Cage Cover Kit

715006542

$27.99

1330

Tuflok Plastic Rivet

293150230

$1.47

1335

Washer

503192494

$3.17

1400

RH Rear Cage Cover Kit

715006543

$28.99

1430

Tuflok Plastic Rivet

293150230

$1.47

1435

Washer

503192494

$3.17

1880

Tuflok Plastic Rivet

293150230

$1.47

2100

Tuflok Plastic Rivet

293150230

$1.47

3000a

Mirror

705011497

$80.49

3000b

LH Mirror Support

705012151

$28.99

3000c

RH Mirror Support

705012152

$28.99

3000d

Plate

705010469

$16.37

3000e

Mirror Rod

705012671

$33.99

3000f

Torx Truss Screw M6 X 16

250000348

$2.11

3000g

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

3000h

Snap Ring

293370131

$1.35

3000j

Hex. Flange Screw M8 X 35

207683544

$1.69

3000k

Hex. Flange Elastic Nut M8

233281414

$1.47

3000m

Torx Screw M6 X 25

250000758

$2.11

3000n

Hex. Flange Elastic Nut M6

233261494

$1.58

3000p

Flat Washer

250200178

$2.11

4000

LH Front Fender Flare

705011518

$24.99

4010

RH Front Fender Flare

705011519

$24.99

4020

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

4100

LH Central Fender Flare

705011522

$12.99

4110

RH Center Fender Flare

705011523

$14.99

4120

Torx Screw M6 X 25

250000758

$2.11

4125

Stainless Steel Flat Washer

234062670

$2.11

4130

Torx Truss Screw Head PT.K50 X 40

250000840

$1.90

4140

Hex. Flange Elastic Nut M6

233261494

$1.58

5400

LH Rear Deflector

705016336

$51.99

5410

Flat Washer 8 mm, Nylon

292001663

$1.47

5450

RH Rear Deflector

705016337

$51.99

5460

Flat Washer 8 mm, Nylon

292001663

$1.47

6000a

Air Inlet

706600236

$54.99

6000b

Manta Green - Cap | Model-Digital Camo

707001630

$22.49

6000c

Torx Screw M5 X 20

250000792

$2.11

6000d

Elastic Flange Nut M5

233251494

$2.11

6000e

Torx Truss Screw K40 X 12

250000577

$2.11

6000f

Manta Green Grate

706600317

$4.09

6000g

CVT Outlet

706600205

$43.99

6000h

Manta Green, Trim

705014197

$13.99

6000j

Torx Screw M6 X 45

250000647

$6.82

6000k

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

6000m

Clamp

293650272

$20.99

6000n

Pop Rivet 3/16”

293150101

$2.09

6000p

Intake Tube

706600277

$67.99

6000q

Flexible Joint

706600278

$28.99

6000r

Torx Screw M6 X 20

250000712

$2.11

6000s

Flat washer M6

250200164

$1.01

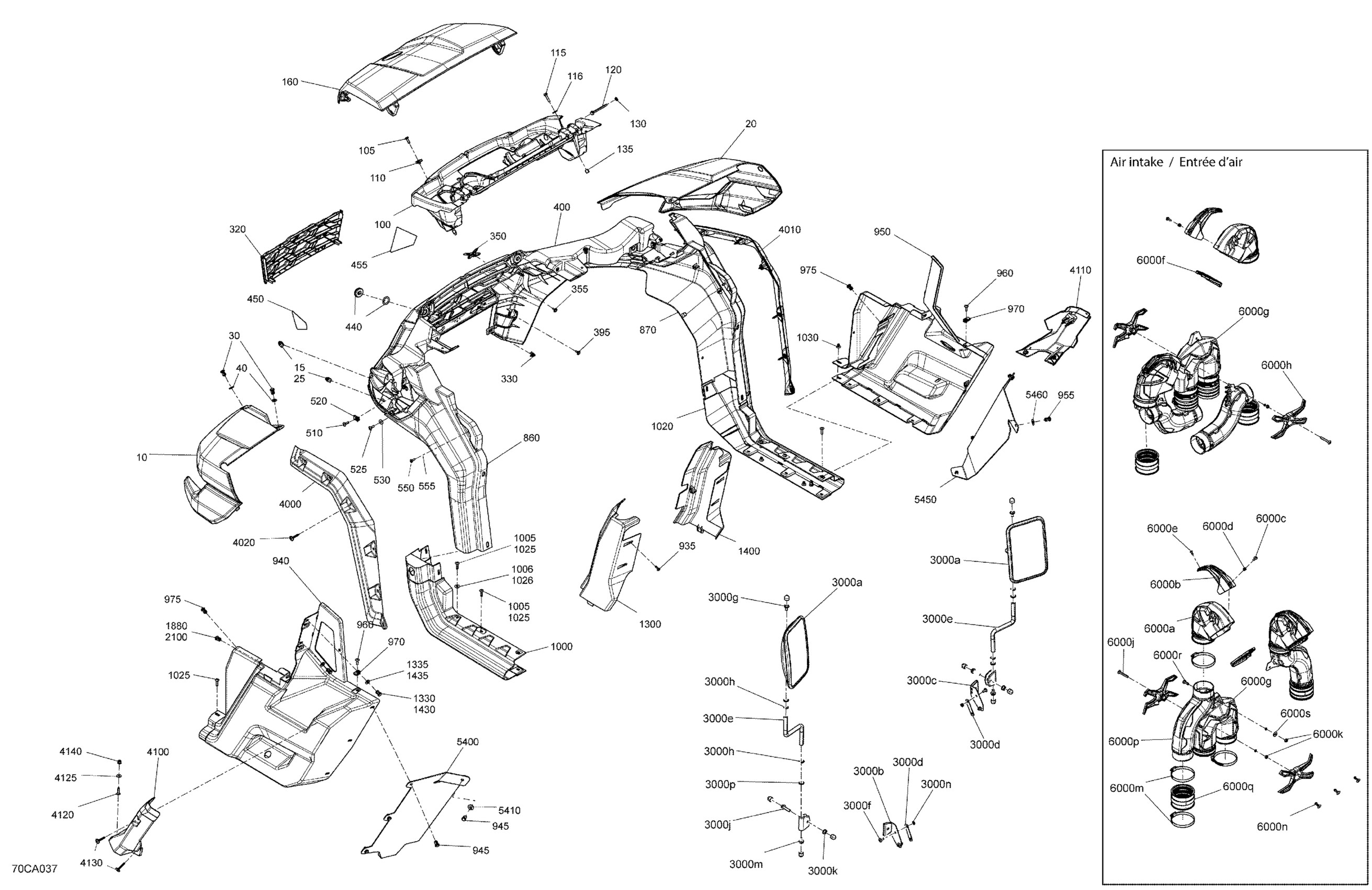

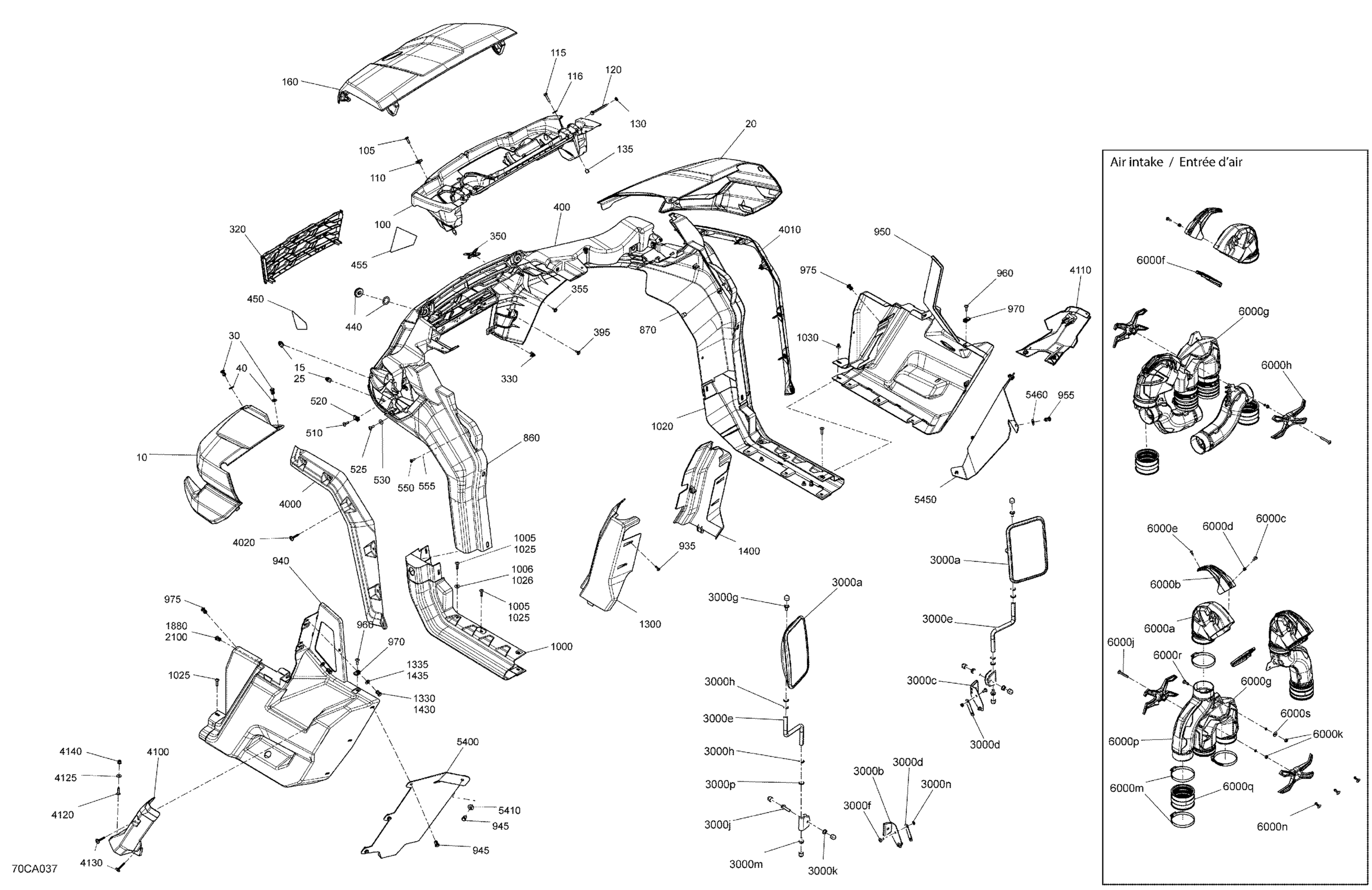

Can-Am 003 - Traxter HD10 - XMR - CE, 2021 07- Body - System Diagram

Manta Green, LH Front Fender

Panel Nut M6 X 1.0

Manta Green, RH Front Fender

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

Washer

Multi Purpose Support

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 30 | International

Stainless Steel Flat Washer

Hex. Flange Screw M6 X 75

Push Nut

Bushing

Mineral Satin Gray, Front Hood

Grille

Clip

Emblem X | Model XTP

Screw M4 X 16

Screw M4 X 16

Deep Black, Front Fascia

Grommet

LH Front Reflector

RH Front Reflector

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Torx Screw K50 X 16

Flat Washer M5

LH Front Lateral Panel

RH Front Lateral Panel

Torx Screw K50 X 16

Deep Black, LH Rear Body Panel

Tuflok Plastic Rivet

Deep Black, RH Rear Body Panel

Tuflok Plastic Rivet

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

LH Side Central Panel

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Deep Black, RH Central Panel

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Pop Rivet 3/16”

LH Rear Cage Cover Kit

Tuflok Plastic Rivet

Washer

RH Rear Cage Cover Kit

Tuflok Plastic Rivet

Washer

Tuflok Plastic Rivet

Tuflok Plastic Rivet

Mirror

LH Mirror Support

RH Mirror Support

Plate

Mirror Rod

Torx Truss Screw M6 X 16

Hex. Flange Screw M8 X 16, Scotch Grip

Snap Ring

Hex. Flange Screw M8 X 35

Hex. Flange Elastic Nut M8

Torx Screw M6 X 25

Hex. Flange Elastic Nut M6

Flat Washer

LH Front Fender Flare

RH Front Fender Flare

Torx Truss Screw Head PT.K50 X 40

LH Central Fender Flare

RH Center Fender Flare

Torx Screw M6 X 25

Stainless Steel Flat Washer

Torx Truss Screw Head PT.K50 X 40

Hex. Flange Elastic Nut M6

LH Rear Deflector

Flat Washer 8 mm, Nylon
