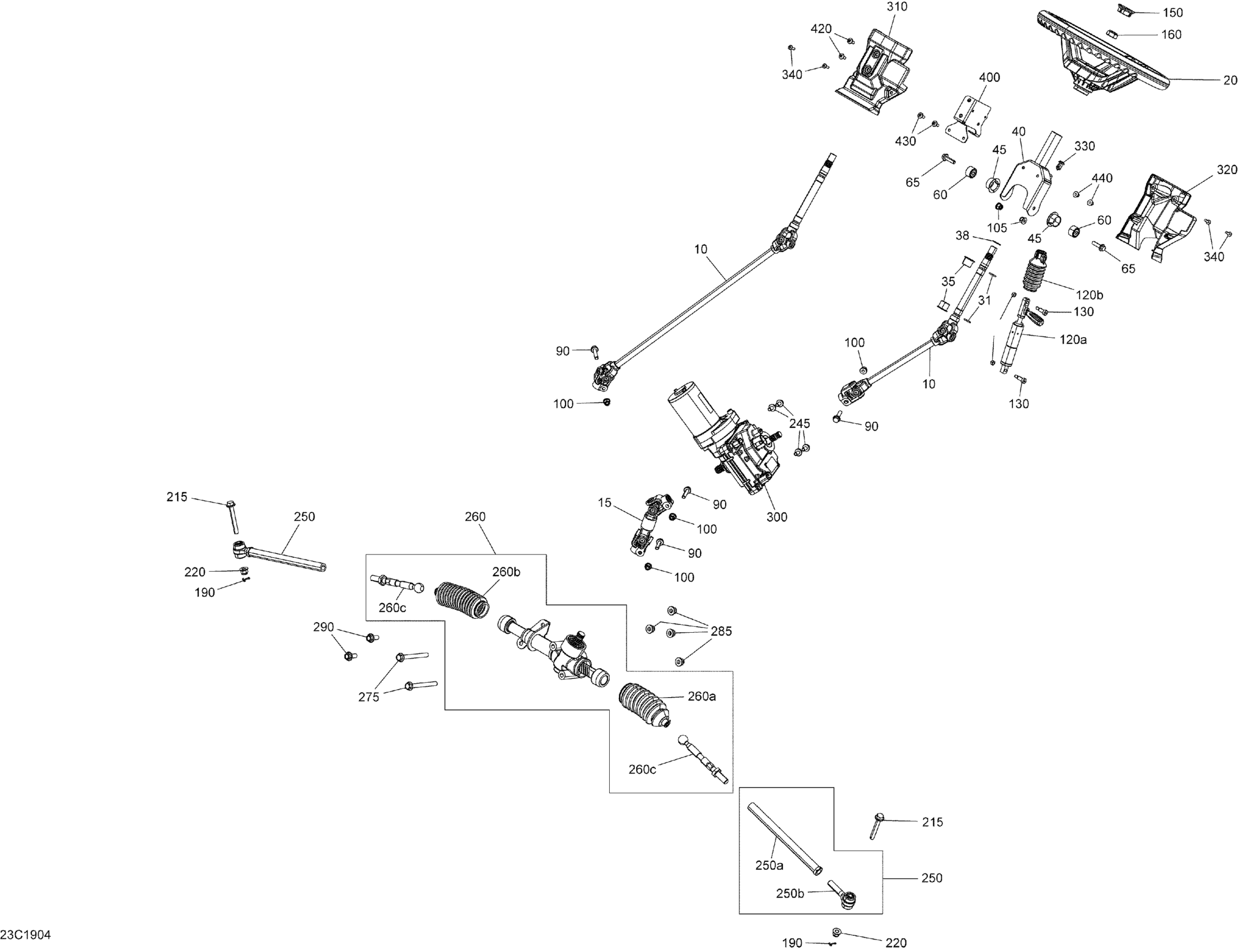

Can-Am Traxter HD10 - T1B Series, 2019 Steering - T1B Diagram

#

Description
Price

10

Steering Column

709402491

$172.36

10

Steering Shaft | Package DPS

709401936

$196.99

15

Lower Steering Column

709402996

$177.58

20

Steering Wheel

709401513

$484.30

31

O-Ring

293300144

$3.79

35

Steering Bushing

709402725

$3.07

38

Circlip

293370110

$2.03

40

Steering Support

709401602

$74.60

45

Bushing

709401603

$7.54

60

Bushing

709401604

$4.39

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

90

Hex. Flange Screw M8 X 35

250001021

$4.15

100

Hex. Elastic Flange Nut M8

233281416

$1.43

105

Hex. Flange Elastic Nut M8

233281414

$1.31

120a

Adjustment Cylinder

709402506

$64.90

120b

Boot Tube Side

709401232

$15.64

130

Socket Head Screw M8 X 16

250000669

$3.00

140

Elastic Stop Nut M6

232561414

$1.78

150

Steering Cap

709401514

$14.37

160

Elastic Lock Nut M16

232511414

$1.88

190

Cotter Pin

211400017

$0.28

215

Screw Hex Cap M10 X 75

250000814

$4.54

220

Hex. Flange Elastic Nut M10

233201436

$2.00

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

260

Steering Rack And Pinion | Includes 260 to 260d

709402317

$369.37

260a

Boot Kit, Pinion Side

715900235

$50.72

260b

Boot Kit, Tube Side

715900236

$50.72

260c

Steering Rod Nut

715900238

$1.76

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.01

285

Hex. Flange Nut M10

233101414

$4.70

290

Hex. Flange Screw M10 X 25

207502546

$2.00

300

Power Steering Ass'y

709402727

$1,971.61

310

Steering Box Cover

709402012

$12.49

320

Steering Box Cover

709402013

$12.49

330

Tuflok Plastic Rivet

293150230

$1.39

340

Torx Screw K50 X 16

250000720

$1.60

400

Flasher Arm Support

709401962

$27.58

420

Torx Truss Screw M6 X 16

250000721

$1.60

430

Torx Screw M6 X 16

250000755

$0.82

440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
