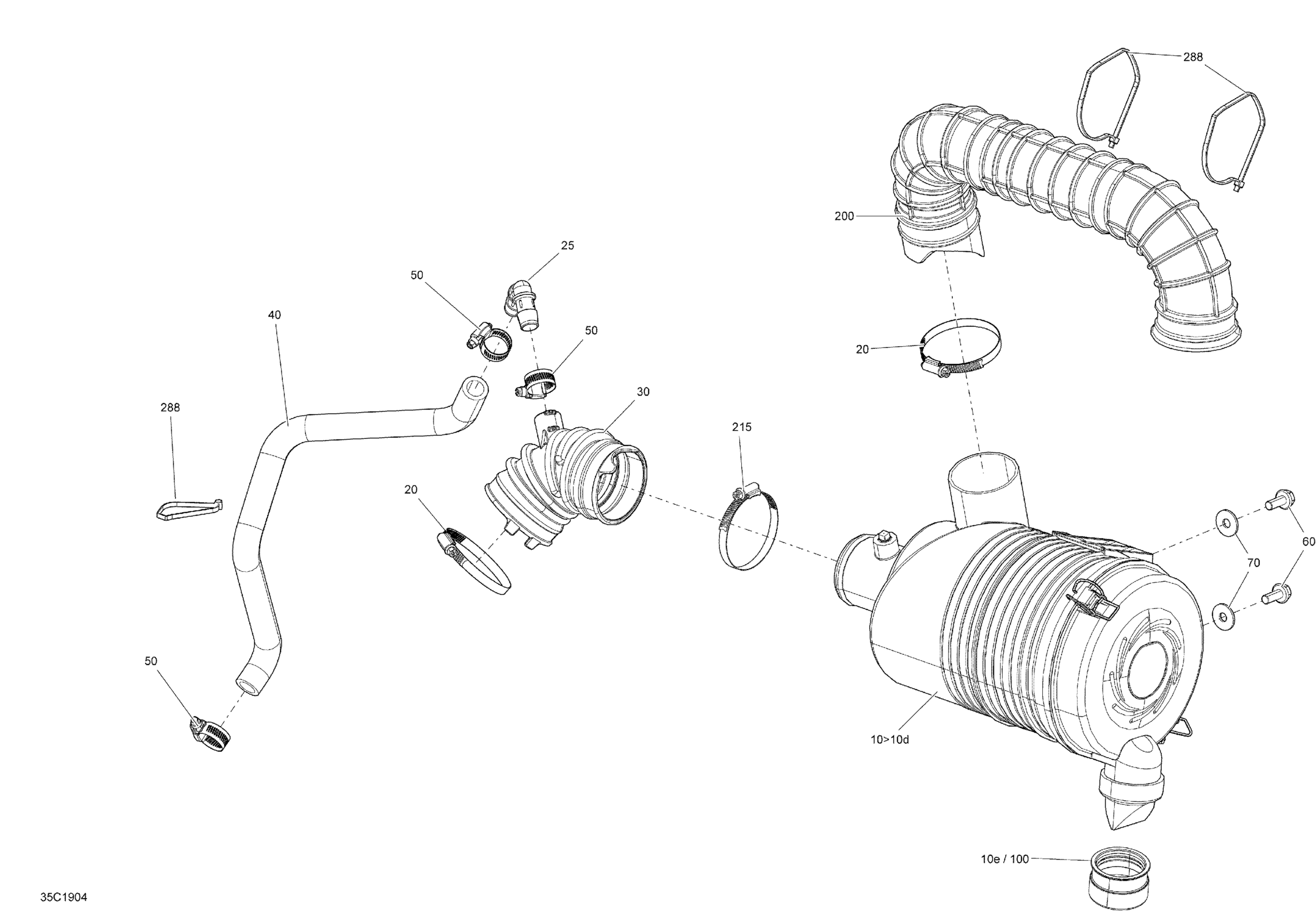

Can-Am Traxter HD10 - T1B Series, 2019 Air Intake - HD10 Diagram

Description

Price

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$175.35

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$87.66

10b

O-Ring

715900514

$17.66

10c

Air Filter

715900394

$50.34

Norma Clamp

293650091

$4.60

Elbow Fitting 90

293710155

$8.45

Air Intake Adaptor

707800759

$27.66

Blow-By Hose | Engine HD8

707800716

$27.66

Tridon Gear Clamp

293650173

$2.46

Tridon Gear Clamp

293650173

$2.46

Hex. Flange Screw M8 X 20

207682044

$0.92

Flat Washer 8 mm

234082410

$1.11

100

Duct Bill Valve

715003114

$12.91

200

Air Inlet Tube

707800752

$41.51

215

Norma Clamp

293650091

$4.60

215

Norma Clamp

293650096

$3.09

265

Hose Anchor

709200036

$10.83

270

Hex. Flange Screw M6 X 25

207662544

$0.53

280

Hex. Flange Nut M6

233061414

$1.34

288

Tie Wrap 368 mm

293750008

$0.85
