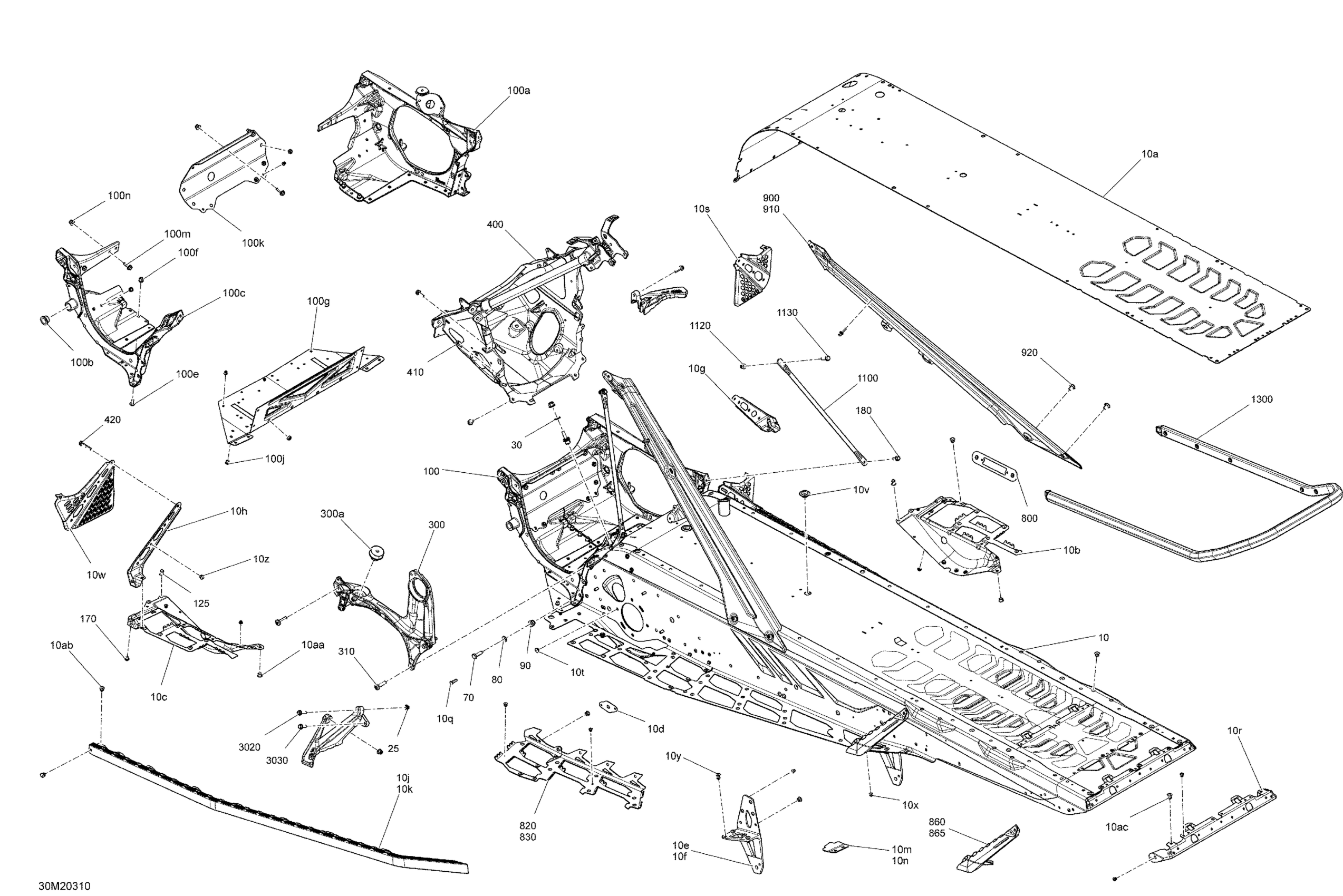

Ski-Doo 003 - SUMMIT 850 E-TEC - X - Europe, 2020 09- Frame - System - X - 175 Diagram

MODULE_CHASSIS TUNNEL 175 B-160 - Call your local BRP dealership | Model Deep Black

415130317

Unavailable

MODULE_CHASSIS TUNNEL 175 B-422 - Call your local BRP dealership | Model Nordic Teal

415130318

Unavailable

Radiator Tunnel 175 Ass'y | Model with 175" rear suspension

518332556

$709.99

LH Footrest Reinforcement

518330321

$88.99

RH Footrest Reinforcement

518330320

$88.99

Reinforcement Plate

518326647

$4.69

LH Suspension Bracket Rear

518328830

$45.99

RH Suspension Bracket Rear

518328828

$45.99

Stirrup Reinforcement

518331253

$21.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518328737

$194.99

LH Roller

518328738

$194.99

LH Reinforcement Plate

518329088

$3.39

RH Reinforcement Plate

518329089

$4.59

Clinch Stud M6 X 20

250300027

$2.09

Rear Cap

518328990

$22.49

RH Footrest

518328460

$44.99

Black, Dart 8 mm

293730047

$2.21

Black, Plug

293730052

$9.19

LH Footrest

518333007

$40.99

Rivet Avibulb 3/16

293150203

$2.09

Rivet

293150183

$2.11

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Washer

506151252

$3.17

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

Leg Cushion

505073317

$8.66

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518331661

$36.99

Insert M5 X 0.8

293450268

$2.09

Front Member

518330100

$60.99

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hemlock Rivet 6.5 mm

293150120

$7.41

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 16

207661646

$1.36

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module

518334459

$709.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Hex. Flange Screw M6 X 35

207663544

$0.90

Member Fixation Plate

518329480

$12.99

RH Tunnel Liner

518329646

$35.99

LH Tunnel Liner

518329647

$35.99

Black - LH Roller Link

518329123

$48.99

Nordic Teal, LH Rear Footrest Reinforcem | Model Nordic Teal

518330525

$48.99

Black, RH Roller Link

518329124

$48.99

Teal, RH Rear Footrest Reinforcement | Model Nordic Teal

518330524

$48.99

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

Yellow, LH Member | Model Sunburst Yellow This part replaces 518329079.

518330061

$119.99

Nordic Teal, LH Rear Diag Cross Member | Model Nordic Teal

518331050

$119.99

Black, RH Member Ass'y | Black

518330880

$119.99

Nordic Teal, RH Rear Diag Cross Member | Model Nordic Teal

518331051

$119.99

Sunburst Yellow, RH Rear Diag Cross Memb | Model Sunburst Yellow

518331054

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Upper Colomn Support

518329974

$22.49

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44

Rear Short Bumper 165 | Includes 1300 to 1300b

518331206

$132.99

Rear Short Bumper 154 | Includes 1300 to 1300b

518331205

$164.99

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11
