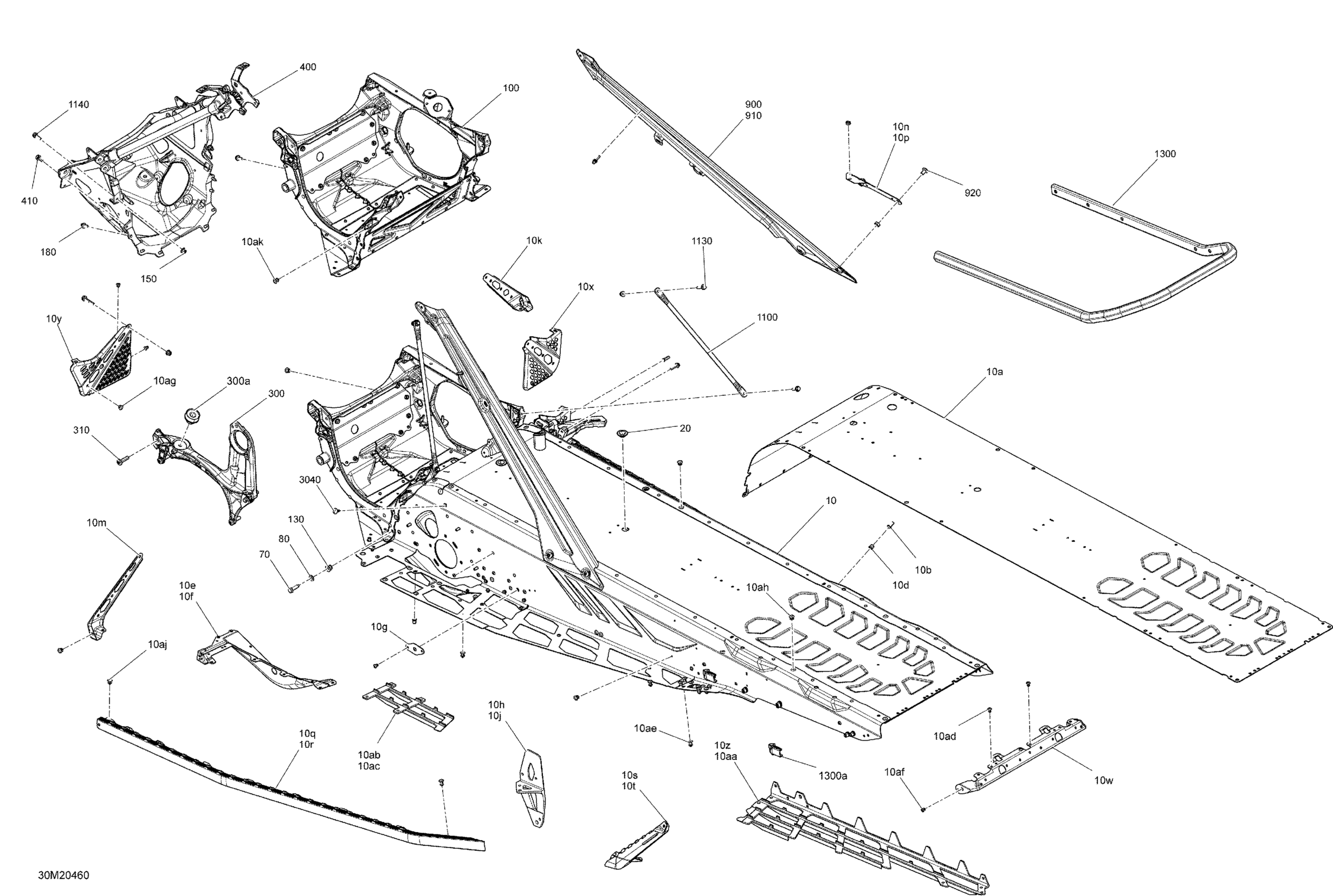

Ski-Doo SUMMIT 850 E-TEC - X - Europe, 2020 Frame - System - X - 154 Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154" | Deep Black

518331490

Unavailable

10

Nordic Teal, Chassis Tunnel Module 154" | Nordic Teal

518331493

Unavailable

10

Deep Black, Chassis Tunnel Module 154" | Deep Black

518331490

Unavailable

10a

Radiator Tunnel 154 Ass'y

518334491

$658.93

10b

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

10d

Collar Huck Magna-Grip 6.4

293150149

$0.36

10e

RH Footrest Reinforcement

518330320

$79.07

10f

LH Footrest Reinforcement

518330321

$79.07

10g

Reinforcement Plate

518326647

$4.21

10h

LH Rear Suspension Support This part replaces 518329053.

518334392

$37.28

10j

Support_Suspension Rear R This part replaces 518329054.

518334393

$38.78

10k

Stirrup Reinforcement

518331253

$17.88

10m

Deep Black, LH Chasssis Reinforcement

518331560

$17.88

10n

LH Member Fixation Plate

518330299

$15.64

10p

RH Under Chassis Reinforcement

518331745

$16.39

10q

RH Roller

518328737

$175.34

10r

LH Roller

518328738

$175.34

10s

LH Roller Link

518330160

$41.76

10t

RH Roller Link

518330161

$41.76

10w

Rear Cap

518328990

$20.12

10x

RH Footrest

518328460

$37.28

10y

LH Footrest

518333007

$37.28

10z

LH Rear Perforated Footstep

518330960

$105.94

10aa

Footstep R Rh Perforated

518330962

$105.94

10ab

LH Front Driver Footrest

518330385

$80.57

10ac

RH Front Driver Footrest

518330388

$80.57

10ad

Avex Rivet

390909100

$0.28

10ae

Rivet

293150183

$2.00

10af

Avex Rivet

390909200

$0.28

10ag

Hemlock Rivet, 6.5 mm

293150096

$3.07

10ah

Hemlock Rivet, 6.5 mm

293150119

$3.88

10aj

Hemlock Rivet, 6.4 mm

293150174

$6.24

10ak

Ornit Rivet 6,5 X 14.5

293150266

$1.88

20

Black, Plug

293730052

$6.18

70

Hex Screw M8 X 30

250000942

$1.06

80

Flat Washer 8 mm

234081410

$0.79

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518333108

$550.72

130

Hex. Flange Elastic Nut M8

233281414

$1.31

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

180

Hex. Flange Screw M6 X 16

207661646

$1.15

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$262.66

300a

Vibration Damper

512061516

$55.94

310

Screw-Pan HD.Torx M8X30

250001060

$0.75

400

Chassis Suspension Module

518334459

$633.55

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$105.19

900

Yellow, LH Member | Model Sunburst Yellow This part replaces 518329079.

518330061

$105.19

900

Nordic Teal, LH Rear Diag Cross Member | Model Nordic Teal

518331050

$105.19

910

Black, RH Member Ass'y | Black

518330880

$105.19

910

Nordic Teal, RH Rear Diag Cross Member | Model Nordic Teal

518331051

$105.19

910

Sunburst Yellow, RH Rear Diag Cross Memb | Model Sunburst Yellow

518331054

$105.19

920

Pan Head Torx Screw M8 X 12

250000887

$1.79

1100

Upper Colomn Support

518329974

$20.12

1130

Hex. Flange Screw M6 X 25

207662544

$0.61

1140

Hex. Flange Screw M6 X 20

207662044

$1.91

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$155.94

1300a

Cap

520001612

$8.36

3040

Dart

293730079

$1.87
