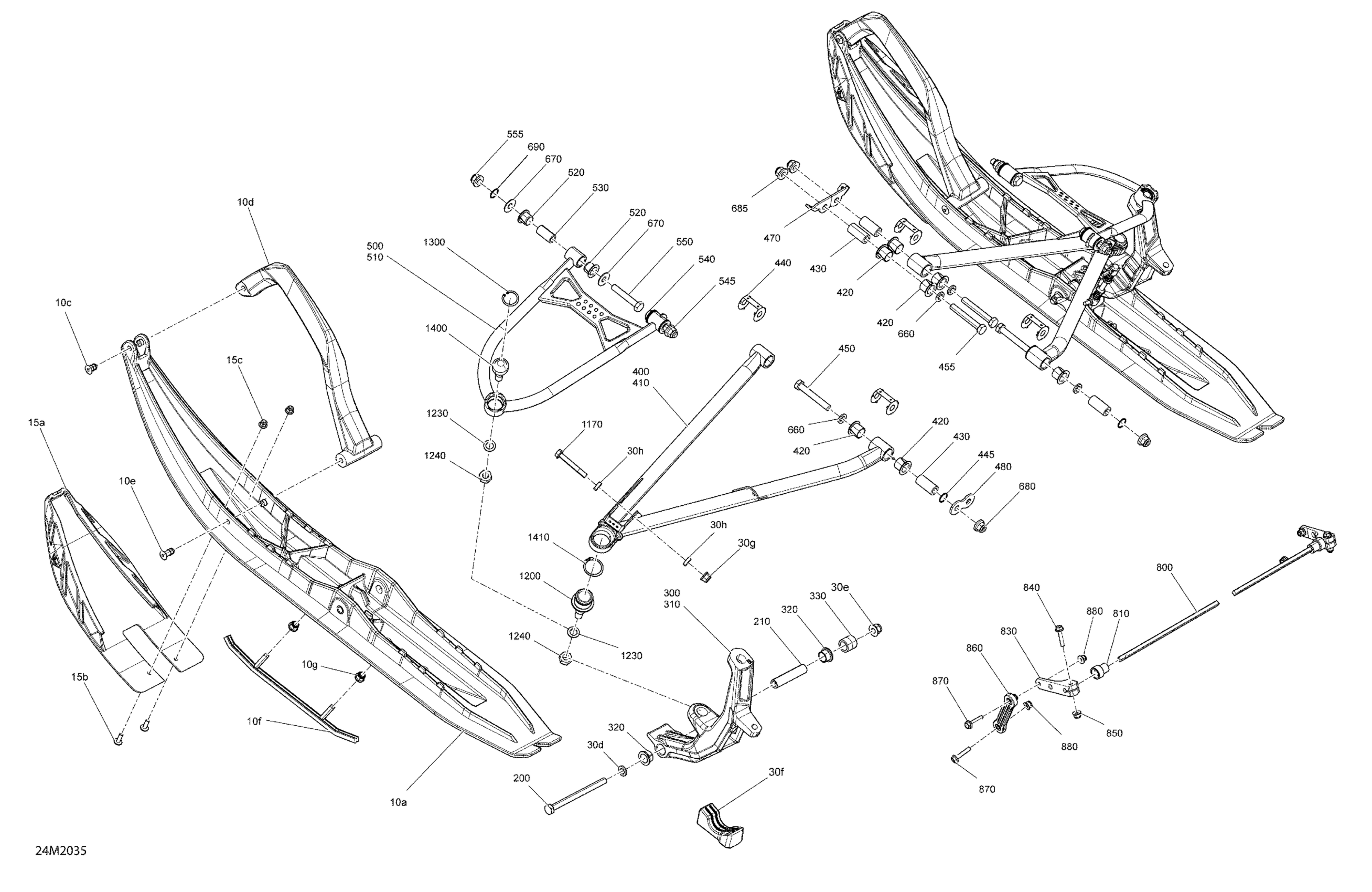

Ski-Doo SUMMIT 850 E-TEC - X - Europe, 2020 Suspension, Front - System - X Diagram

#

Description
Price

10a

Deep Black, Ski Pilot DS 3-E | Includes 10a to 10a1

505074746

$186.89

10a

Deep Black, Ski Pilot DS 3-E | Includes 10a to 10a1

505074746

$186.89

10b

Ski Bushing

505071781

$15.35

10c

Retainer 17mm long

505071812

$4.43

10d

Black, Handle

505072976

$35.35

10d

White Handle | Model Sunburst Yellow-Black

505073108

$34.58

10d

Manta Green, Handle

505074229

$36.12

10e

Retainer 23mm Long

505072133

$5.03

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

15a

Ski Tip

505073784

$49.97

15b

Hex. Socket Screw M6 X 20

250000770

$1.63

15c

Hex. Flange Elastic Nut M6

233261466

$1.66

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073691

$12.58

300

Deep Black, LH Ski Leg

505074543

$218.43

300

Bright White, LH Ski Leg | Model Sunburst Yellow-Black

505074684

$214.58

300

Manta Green, LH Ski Leg -8.5 | Model Intense Blue

505074726

$214.58

310

Deep Black, RH Ski Leg

505074544

$218.43

310

Bright White, RH Ski Leg | Model Sunburst Yellow-Black

505074685

$214.58

310

Manta Green, RH Ski Leg -8.5 | Model Intense Blue

505074727

$214.58

320

Leg Bushing

505072690

Unavailable

330

Spacer

503193651

$7.58

400

RH Lower Arm 36"

505074500

$193.82

410

LH Lower Arm 36"

505074499

$193.82

420

Bushing

505072208

$3.14

430

Bushing

505072214

$15.26

440

Wear Plate

505072634

$4.45

445

O-Ring

505072448

Unavailable

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

470

Wear Plate

505073723

$5.85

480

Plate

505073844

$2.75

500

LH Upper Arm 36"

505074609

$143.05

510

RH Upper Arm 36"

505074610

$143.05

520

Bushing

505072250

$3.14

530

Sleeve

505072143

$8.62

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

800

Stabilizer Bar

505075485

$75.99

810

Bushing

505072786

$7.40

830

Stabilisator Lever

505073752

$15.35

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Double Ball Joint Link

505073172

$54.58

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1200

Ball Joint

505074133

$51.51

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Snap Ring

293370098

$3.11

30d

Washer

503192496

$0.75

30e

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

30f

Ski Stopper

505074138

$29.20

30g

Elastic Flange Nut M8

233281466

$0.83

30h

Spacer

505073892

$2.17
