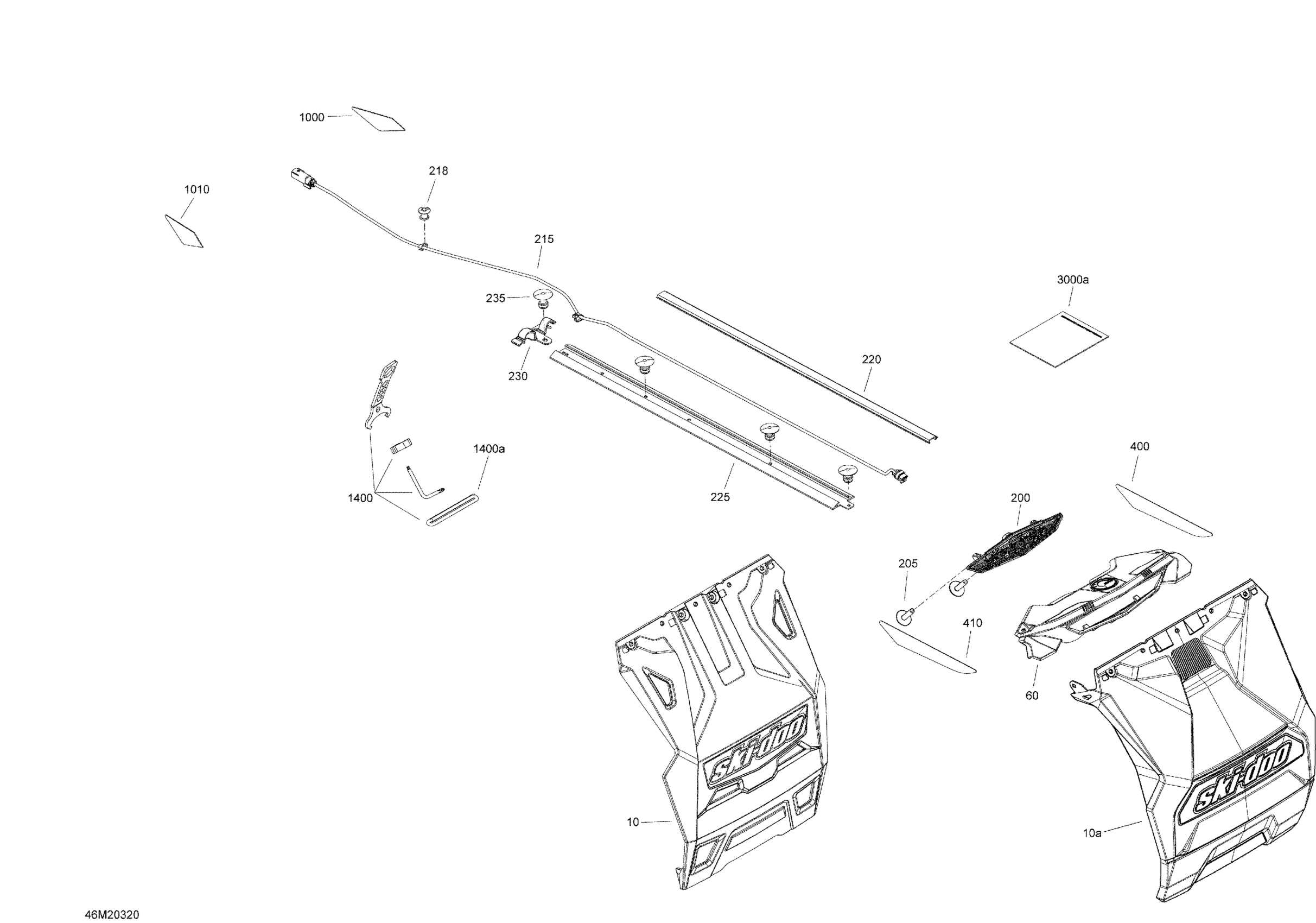

Ski-Doo SUMMIT 850 E-TEC - SP - 2020 Frame - System - SP Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 146" | Model Deep Black

415130511

$3.00

10

Deep Black, Tunnel Chassis Module 154 | Includes 10 to 10aw

415130466

$2.00

10

Deep Black, Chassis Tunnel Module 165" | Includes 10 to 10aw

415130467

$3.00

10

MODULE_CHASSIS TUNNEL 175 B-160 - Call your local BRP dealership | Model with 175" rear suspension

415130398

Unavailable

10a

Radiator Tunnel 146

518334489

$739.99

10a

Radiator Tunnel 154 Ass'y

518334491

$709.99

10a

Radiator Tunnel 165

518332555

$709.99

10a

Radiator Tunnel 175 Ass'y | Model with 175" rear suspension

518332556

$709.99

10b

RH Footrest Reinforcement

518330979

$88.99

10c

LH Footrest Reinforcement

518332577

$88.99

10d

Reinforcement Plate

518326647

$4.69

10e

LH Suspension Bracket

518328467

$45.99

10f

RH Rear Suspension Support

518334391

$94.99

10g

Stirrup Reinforcement

518331253

$21.99

10h

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

10j

RH Roller

518328451

$194.99

10k

LH Roller

518328452

$194.99

10m

LH Reinforcement Plate

518329088

$3.39

10n

RH Reinforcement Plate

518329089

$4.59

10q

Clinch Stud M6 X 20

250300027

$2.09

10r

Rear Cap

518328990

$22.49

10s

RH Footrest

518328460

$44.99

10t

Black, Dart 8 mm

293730047

$2.21

10v

Black, Plug

293730052

$9.19

10w

LH Footrest

518333007

$40.99

10x

Rivet Avibulb 3/16

293150203

$2.09

10y

Rivet

293150183

$2.11

10z

Hemlock Rivet, 6.5 mm

293150096

$3.27

10aa

Hemlock Rivet, 6.5 mm

293150119

$4.29

10ab

Hemlock Rivet, 6.4 mm

293150174

$7.86

10ac

Ornit Rivet 6,5 X 14.5

293150266

$2.40

25

Insert Half Hex Body M6 x 1.0

250100199

$3.19

30

Washer

506151252

$3.17

70

Hex Screw M8 X 30

250000942

$1.15

80

Flat Washer 8 mm

234081410

$0.83

90

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Engine Chassis Module Ass'y | Includes 100 to 100m

518332692

$579.99

100a

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

100b

Leg Cushion

505073317

$8.66

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

100f

Collar Huck Magna-Grip 6.4

293150149

$0.48

100g

Bottom Plate

518331661

$36.99

100j

Insert M5 X 0.8

293450268

$2.09

100k

Front Member

518330100

$60.99

100m

Hex. Flange Screw M6 X 20

207662046

$2.11

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

125

Hemlock Rivet 6.5 mm

293150120

$7.41

170

Insert M5 - 0.8

293450267

$4.59

180

Hex. Flange Screw M6 X 16

207661646

$1.36

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$264.99

300a

Vibration Damper

512061516

$61.99

310

Screw-Pan HD.Torx M8X30

250001060

$0.82

400

Chassis Suspension Module

518334459

$709.99

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

420

Hex. Flange Screw M6 X 35

207663544

$0.90

800

Member Fixation Plate

518329480

$12.99

820

RH Tunnel Liner

518329646

$35.99

830

LH Tunnel Liner

518329647

$35.99

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$119.99

900

Blue, LH Member | Gulfstream Blue

518330136

$119.99

910

Black, RH Member Ass'y | Black

518330880

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.90

1100

Upper Colomn Support

518329974

$22.49

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1130

Hex. Flange Screw M6 X 25

207662556

$4.44

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$154.49

1300

Rear Bumper 146

518329553

$169.49

3020

Hex. Flange Screw M6 X 25

250000793

$2.11

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11
