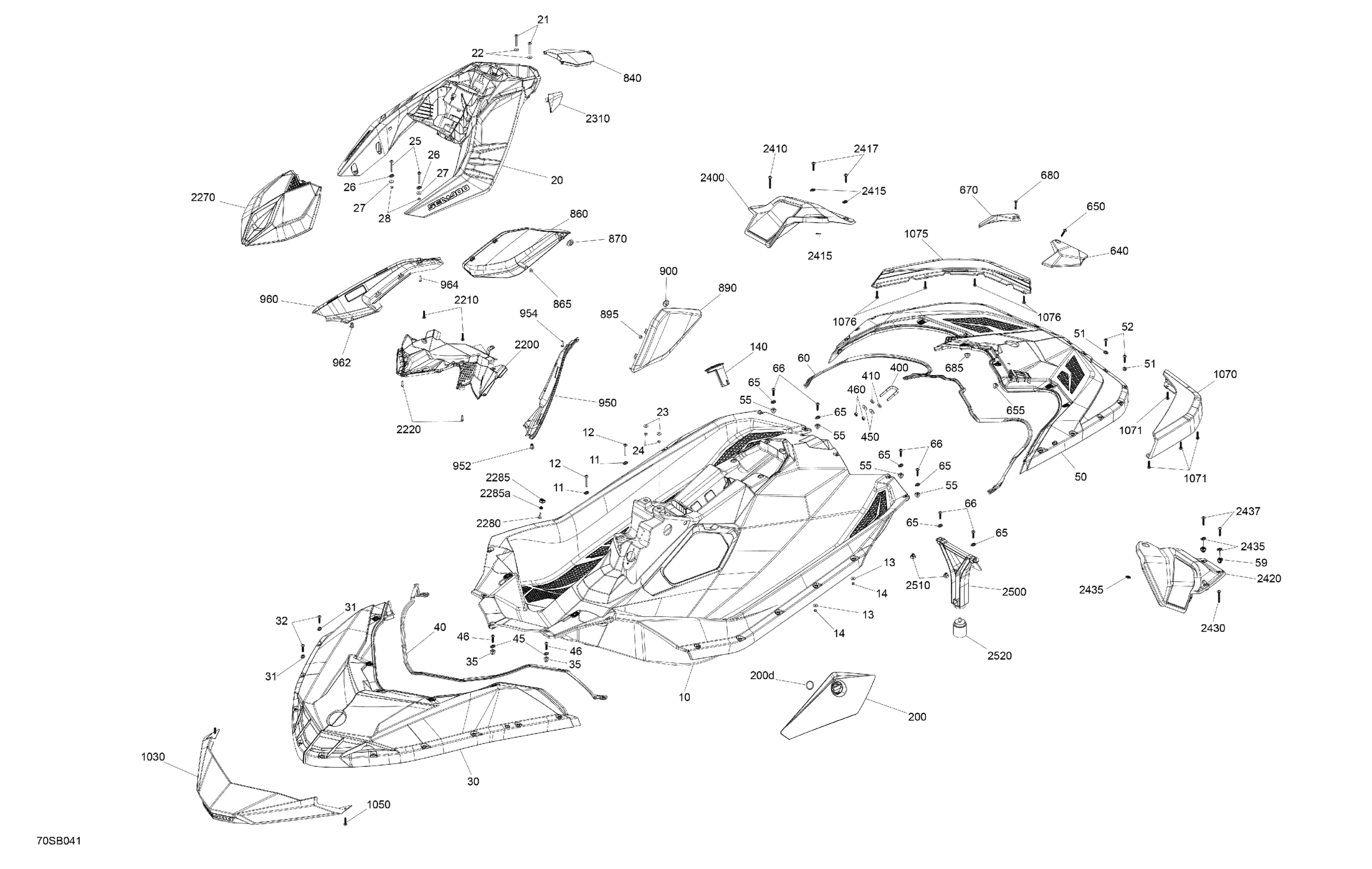

Sea-doo SPARK TRIXX, 2022 Body - System Diagram

#

Description
Price

10

Central Body

291006043

$1,374.60

11

Oval Washer

291003880

$1.18

12

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

13

Flat Washer M6, Stainless

234062600

$0.64

14

Elastic Stop Nut M6, Brass

232561200

$3.51

20

Can-Am Red, Console

291005484

$109.82

20

Dazzling Blue, Console

291005895

$109.82

21

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

22

Flat Washer M6, Stainless

250200150

$2.87

23

Flat Washer M6, Stainless

234062600

$0.64

24

Elastic Stop Nut M6, Brass

232561200

$3.51

25

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$3.33

26

Oval Washer

291003880

$1.18

27

Flat Washer M6, Stainless

234062600

$0.64

28

Elastic Stop Nut M6, Brass

232561200

$3.51

30

Deep Black, Front Deck

291004727

$207.32

31

Oval Washer

291003880

$1.18

32

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

35

Insert

291003793

$2.44

40

Gasket

293250599

$38.78

45

Oval Washer

291003880

$1.18

46

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

50

Deep Black, Drilled Rear Deck

291005515

$207.32

51

Oval Washer

291003880

$1.18

52

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

55

Insert

291003793

$2.44

59

Insert

291003793

$2.44

60

Gasket

293250598

$33.77

65

Oval Washer

291003880

$1.18

66

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

140

Deep Black, Rear Access Cover

291003390

$33.12

200

Deep Black, Front Access Cover | Includes 200 to 200d

291004155

$37.02

200d

O-Ring

293300121

$6.18

400

U-Clamp

292000933

$32.47

410

Flat Washer M8.5 x 18

293050001

$1.29

450

Flat Washer 8 mm, Stainless

234082600

$1.98

460

Hex. Elastic Nut M8 Brass

232581200

$1.29

640

Black, Rear Support LH

291004545

$68.63

650

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

655

Insert

291003793

$2.44

670

Black, RH Rear Support

291004546

$59.77

680

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

685

Insert

291003793

$2.44

840

Deep Black, Glove Box Cover

291003378

$51.32

860

RH Molded Knee Pad

291005094

$102.02

865

Rubber Bumper

293830005

$5.33

870

Oval Washer

705000321

$4.64

890

LH Molded Knee Pad

291005093

$102.02

895

Rubber Bumper

293830005

$5.33

900

Oval Washer

705000321

$4.64

950

LH Panel Trim This part replaces 291003696.

291004576

$22.07

952

Tuflok Plastic Rivet

293150230

$1.21

954

Hex. Screw 10-14 X 7/8”

211000023

$2.91

960

Deep Black, RH Panel Trim

291004577

$22.07

962

Tuflok Plastic Rivet

293150230

$1.21

964

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1030

Front Bumper

291004567

$94.87

1050

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1070

Black, LH Rear Bumper

291004568

$29.22

1071

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

1075

Black, RH Rear Bumper

291004569

$29.22

1076

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

2200

Black, Inferior Cover

291004575

$73.42

2210

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2220

Hex. Screw 10-14 X 7/8”

211000023

$2.91

2270

Deep Black, Console Trim

291005518

$63.02

2280

Torx-Truss M/S Stlss M6 X 20

250000829

$2.30

2285

M6 Nut Housing | Includes 550f to 550f2

269502497

$5.07

2285a

Elastic Stop Nut M6, Brass

232561200

$3.51

2310

Cap

291005556

$12.00

2310

Dazzling Blue, Cap

291005896

$12.00

2400

Can-Am Red, RH Footrest Ass'y

291004539

$59.77

2410

Plastite Torx Screw Cone HD. M6.81X

250001144

$3.95

2415

Oval Washer

291003880

$1.18

2417

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2420

Black, LH Footrest Ass'y

291004540

$59.77

2430

Plastite Torx Screw Cone HD. M6.81X

250001144

$3.95

2435

Oval Washer

291003880

$1.18

2437

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

2500

Rear Support

291003440

$20.77

2510

Insert

291003793

$2.44

2520

Rear Support Mount

291003694

$16.22
